Magnetic Properties, Nanostructure, and Ordering Kinetics of Nb Additive FePtCu Films

Abstract:

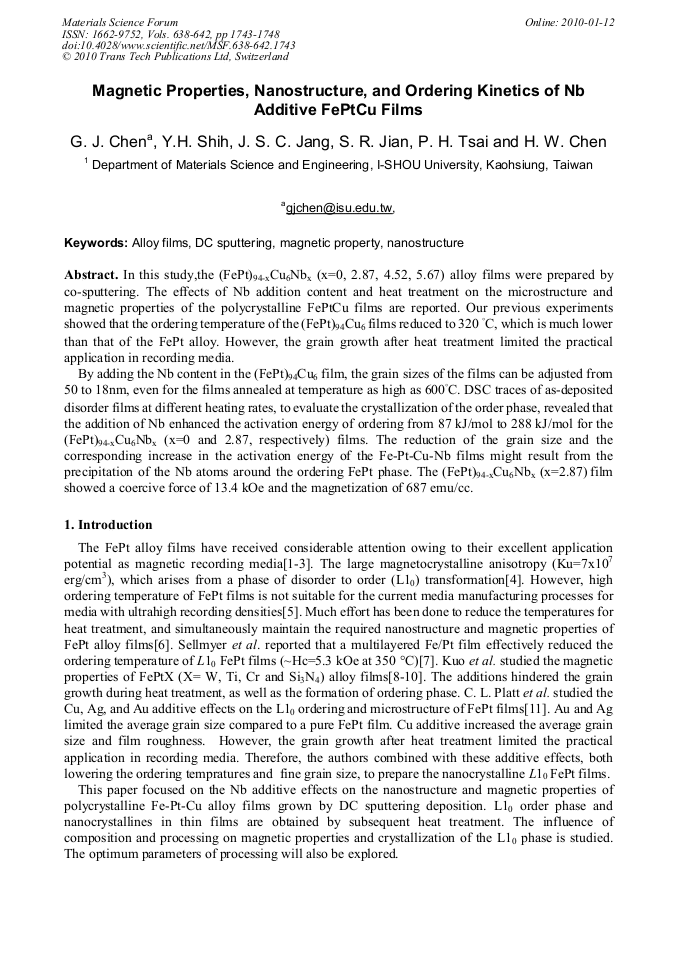

In this study,the (FePt)94-xCu6Nbx (x=0, 2.87, 4.52, 5.67) alloy films were prepared by co-sputtering. The effects of Nb addition content and heat treatment on the microstructure and magnetic properties of the polycrystalline FePtCu films are reported. Our previous experiments showed that the ordering temperature of the (FePt)94Cu6 films reduced to 320 °C, which is much lower than that of the FePt alloy. However, the grain growth after heat treatment limited the practical application in recording media. By adding the Nb content in the (FePt)94Cu6 film, the grain sizes of the films can be adjusted from 50 to 18nm, even for the films annealed at temperature as high as 600°C. DSC traces of as-deposited disorder films at different heating rates, to evaluate the crystallization of the order phase, revealed that the addition of Nb enhanced the activation energy of ordering from 87 kJ/mol to 288 kJ/mol for the (FePt)94-xCu6Nbx (x=0 and 2.87, respectively) films. The reduction of the grain size and the corresponding increase in the activation energy of the Fe-Pt-Cu-Nb films might result from the precipitation of the Nb atoms around the ordering FePt phase. The (FePt)94-xCu6Nbx (x=2.87) film showed a coercive force of 13.4 kOe and the magnetization of 687 emu/cc.

• Periodical: Materials Science Forum (Volumes 638-642)
• Pages: 1743-1748
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.638-642.1743
• Online since: January 2010
• Authors: G.J. Chen, Y.H. Shih, Jason S.C. Jang, S.R. Jian, P.H. Tsai, H.W. Chen
• Keywords: Alloy Film, DC Sputtering, Magnetic Property, Nanostructure

References

[1] Y.F. Xu, M.L. Yan, D.J. Sellmyer, J. of �anoscience and �anotech. 7, 206 (2007).

[2] D. E. Laughlin, S. Kumar, Y. Peng, and A. G. Roy, IEEE Trans. Mag. 41, 719 (2005).

[3] M.L. Plumer, J. van Ek, and D. Weller, The Physics of Ultrahigh-Density Magnetic Recording, 2001, Springer-Verlag, Berlin.

[4] K. Coffey, M. A. Parker, and J. K. Howard, IEEE Trans. Magn. 31, 2737 (1995).

[5] T. Suzuki, K. Harada, N Honda, and K. Ouchi, J. Magn. Magn. Mater. 193, 85 (1999).

[6] J. Chen, C. Sun, G.M. Chow, Inter. J. Product Deve. 5, 238 (2008).

[7] C. P. Luo and D. J. Sellmyer, IEEE Trans. Magn. 31, 2764 (1995).

[8] C. M. Kuo, P. C. Kuo, W. C. Hsu, C. T. Li, and A. C. Sun, J. Magn. Magn. Mater. 209, 100 (2000).

[9] P. C. Kuo, Y. D. Yao, C. M. Kuo, and H. C. Wu, J. Appl. Phys. 87, 6146 (2000).

[10] C. M. Kuo, and P. C. Kuo, J. Appl. Phys. 87, 419 (2000).

[11] K. W. Wierman, C. L. Platt, and J. K. Howard, F. E. Spada, J. Appl. Phys. 93, 7160 (2003).

[12] G. J. Chen, Y. H. Shih, J.S.C. Jang, S. R. Jian, Inter. J. Moder. Phys., (in press).

[13] H.E. Kissinger, Analyst Chem. 29, 1702 (1957).
