Viscous Flow Behaviour of Supercooled Liquids and Mechanical Properties in Zr-Cu-Ni-Al Bulk Metallic Glasses

Tohru Yamasaki; M. Yamada; T. Mori; Takeyuki Kikuchi; Yoshihiko Yokoyama; Akihisa Inoue; Do Hyang Kim

doi:10.4028/www.scientific.net/MSF.654-656.1046

Paper Titles

Structure of Porous Copper Fabricated by Unidirectional Solidification under Pressurized Hydrogen
p.1030

Structural Behavior of FRP Lighting Pole System
p.1034

Local Atomic Arrangements of Pd-Based Bulk Metallic Glasses of the Metal-Metalloid Type Demonstrated by Molecular Dynamics Simulations
p.1038

High Glass-Forming Ability and Unusual Deformation Behavior of New Zr-Cu-Fe-Al Bulk Metallic Glasses
p.1042

Viscous Flow Behaviour of Supercooled Liquids and Mechanical Properties in Zr-Cu-Ni-Al Bulk Metallic Glasses
p.1046

Effect of Residual Stress on Mechanical Property of Monolithic Bulk Metallic Glass
p.1050

Microstructural Assessment of the Oxidation Behavior of Cu-Based Metallic Glass Powder
p.1054

Mechanical Properties and Structures of High Entropy Alloys and Bulk Metallic Glasses Composites
p.1058

Bulk Metallic Glass Formation, Crystallization, and Magnetic Properties of RE₄Fe₇₂B₂₂M₂ Alloys
p.1062

HomeMaterials Science ForumMaterials Science Forum Vols. 654-656Viscous Flow Behaviour of Supercooled Liquids and...

Viscous Flow Behaviour of Supercooled Liquids and Mechanical Properties in Zr-Cu-Ni-Al Bulk Metallic Glasses

Abstract:

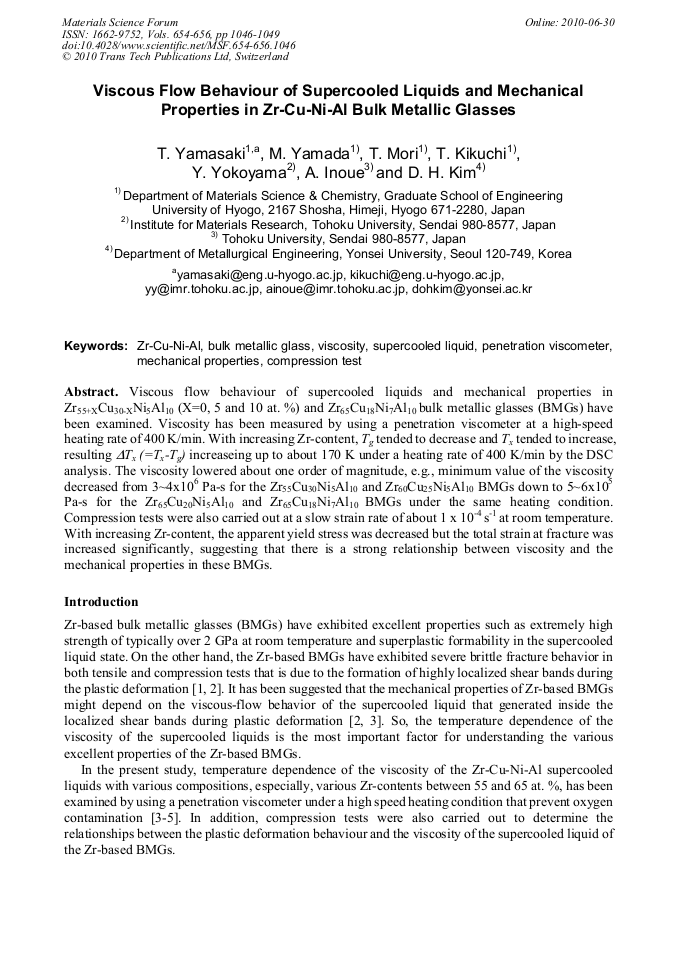

Viscous flow behaviour of supercooled liquids and mechanical properties in Zr55+XCu30-XNi5Al10 (X=0, 5 and 10 at. %) and Zr65Cu18Ni7Al10 bulk metallic glasses (BMGs) have been examined. Viscosity has been measured by using a penetration viscometer at a high-speed heating rate of 400 K/min. With increasing Zr-content, Tg tended to decrease and Tx tended to increase, resulting Tx (=Tx-Tg) increaseing up to about 170 K under a heating rate of 400 K/min by the DSC analysis. The viscosity lowered about one order of magnitude, e.g., minimum value of the viscosity decreased from 3~4x106 Pa-s for the Zr55Cu30Ni5Al10 and Zr60Cu25Ni5Al10 BMGs down to 5~6x105 Pa-s for the Zr65Cu20Ni5Al10 and Zr65Cu18Ni7Al10 BMGs under the same heating condition. Compression tests were also carried out at a slow strain rate of about 1 x 10-4 s-1 at room temperature. With increasing Zr-content, the apparent yield stress was decreased but the total strain at fracture was increased significantly, suggesting that there is a strong relationship between viscosity and the mechanical properties in these BMGs.
