A Cellular Automaton Model with the Lower Mesh-Induced Anisotropy for Dendritic Solidification of Pure Substance

Abstract:

A modified cellular automaton model for describing the dendritic solidification of pure substance was developed. Instead of using the high mesh-induced anisotropy capture rules, such as Von Neumann’s and Moore’s method, a new capture rule---random zigzag method was developed, which greatly reduced the mesh-induced anisotropy in crystallographic orientation. The calculation method for the solid/liquid interface curvature was also improved. The effect of interfacial energy anisotropy on the dendritic growth behavior was analyzed.

You might also be interested in these eBooks

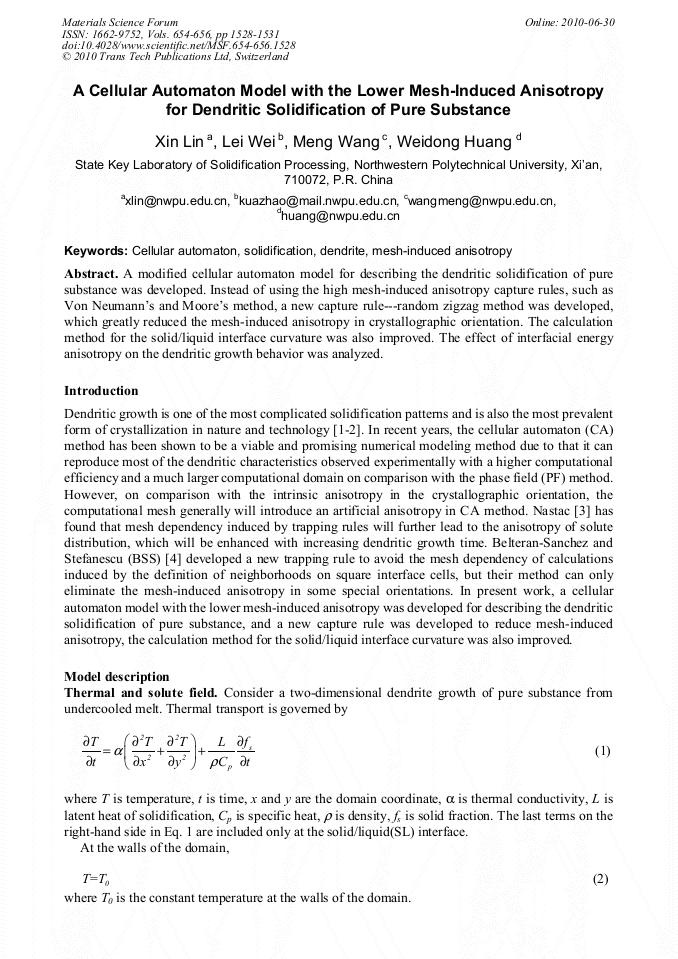

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 654-656)

Pages:

1528-1531

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.654-656.1528

Citation:

Cite this paper

Online since:

June 2010

Authors:

Xin Lin, Lei Wei, Meng Wang, Wei Dong Huang

Keywords:

Cellular Automaton (CA), Dendrite, Mesh-Induced Anisotropy, Solidification

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J.D. Langer: Rev. Mod. Phys. Vol. 52(1980), p.1.

Google Scholar

[2] M. Asta, C. Beckermann, A. Karma, W. Kurz, R. Napolitano, M. Plapp, G. Purdy, M. Rappaz, R. Trivedi: Acta Mater. Vol. 57 (2009), p.941.

DOI: 10.1016/j.actamat.2008.10.020

Google Scholar

[3] L. Nastac: Modeling and Simulation of Microstruture Evolution in Solidifying Alloys (Kluwer Academic Publishers, New York 2004).

Google Scholar

[4] L. Beltran-Sanchez, D.M. Stefanescu: Metall. Mater. Trans. Vol. 34A(2003), p.367.

Google Scholar

[5] L. Wei, X. Lin, B.W. Shan, W.D. Huang, in: SP07 Proceedings of the 5th Decennial International Conference on Solidification Processing, edited by H. Jones, University of Sheffield, UK, (2007).

Google Scholar
