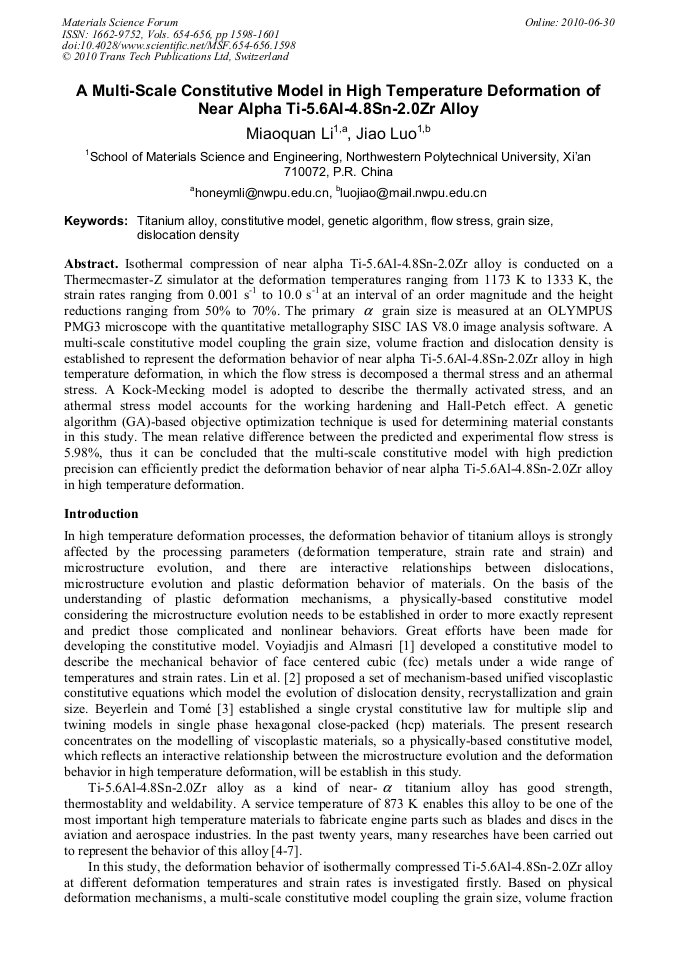

A Multi-Scale Constitutive Model in High Temperature Deformation of Near Alpha Ti-5.6Al-4.8Sn-2.0Zr Alloy

Abstract:

Isothermal compression of near alpha Ti-5.6Al-4.8Sn-2.0Zr alloy is conducted on a Thermecmaster-Z simulator at the deformation temperatures ranging from 1173 K to 1333 K, the strain rates ranging from 0.001 s-1 to 10.0 s-1 at an interval of an order magnitude and the height reductions ranging from 50% to 70%. The primary grain size is measured at an OLYMPUS PMG3 microscope with the quantitative metallography SISC IAS V8.0 image analysis software. A multi-scale constitutive model coupling the grain size, volume fraction and dislocation density is established to represent the deformation behavior of near alpha Ti-5.6Al-4.8Sn-2.0Zr alloy in high temperature deformation, in which the flow stress is decomposed a thermal stress and an athermal stress. A Kock-Mecking model is adopted to describe the thermally activated stress, and an athermal stress model accounts for the working hardening and Hall-Petch effect. A genetic algorithm (GA)-based objective optimization technique is used for determining material constants in this study. The mean relative difference between the predicted and experimental flow stress is 5.98%, thus it can be concluded that the multi-scale constitutive model with high prediction precision can efficiently predict the deformation behavior of near alpha Ti-5.6Al-4.8Sn-2.0Zr alloy in high temperature deformation.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 1598-1601
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.1598
• Online since: June 2010
• Authors: Miao Quan Li, Jiao Luo
• Keywords: Constitutive Model, Dislocation Density, Flow Stress, Genetic Algorithm (GA), Grain Size, Titanium Alloy

References

[1] G.Z. Voyiadjis and A.H. Almasri: Mech. Mater. Vol. 40 (2008), p.549.

[2] J. Lin, Y. Liu, D.C.J. Farrugia and M. Zhou: Philos. Mag. Vol. 85 (2005), p. (1967).

[3] I.J. Beyerlein and C.N. Tomé: Int. J. Plasticity Vol. 24 (2008), p.867.

[4] Z.L. Tang, F.H. Wang, W.T. Wu, Q.J. Wang and D. Li: Mater. Sci. Eng. A Vol. 255 (1998), p.133.

[5] M.Q. Li and Y.Y. Lin: Int. J. Hydrogen Energ. Vol 32 (2007), p.626.

[6] J. Luo, M.Q. Li, Y.Q. Hu and M.W. Fu: Mater. Charact. Vol. 59 (2008), p.1386.

[7] M.Q. Li, H.S. Pan, Y.Y. Lin and J. Luo: J. Mater. Process. Technol. Vol. 183 (2007), p.71.

[8] J. Luo, M.Q. Li and X.L. Li: Sci. China Ser. E Vol. 51 (2008), p.1803.

[9] R.E. Stoller, S.J. Zinkle: J. Nucl. Mater. Vol. 283-287 (2000), p.349.

[10] R.C. Picu, A. Majorell: Mater. Sci. Eng. A Vol. 326 (2002), p.306.
