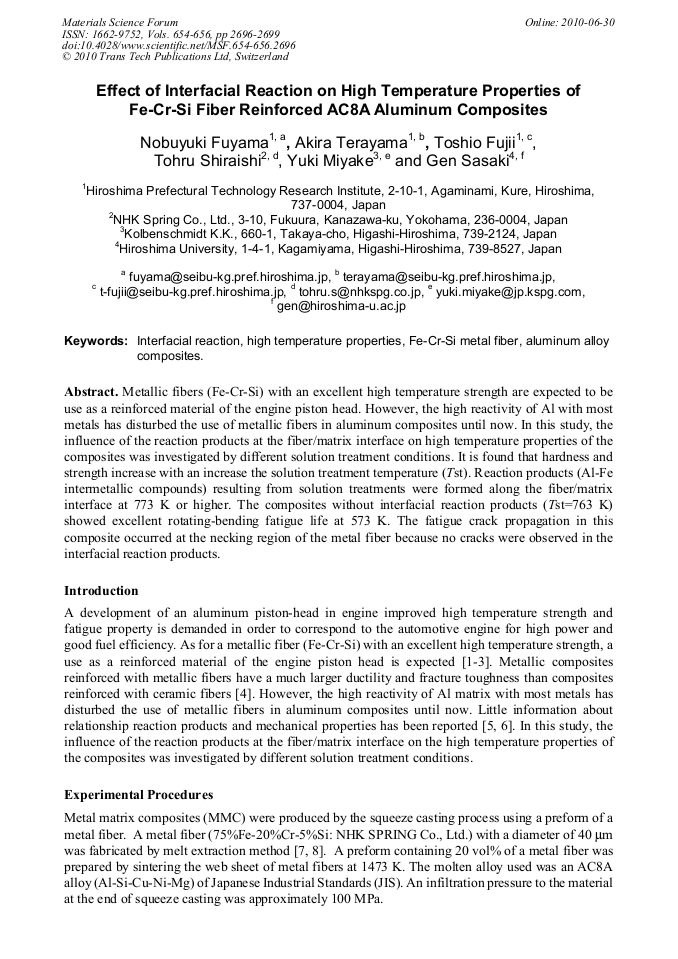

Effect of Interfacial Reaction on High Temperature Properties of Fe-Cr-Si Fiber Reinforced AC8A Aluminum Composites

Abstract:

Metallic fibers (Fe-Cr-Si) with an excellent high temperature strength are expected to be use as a reinforced material of the engine piston head. However, the high reactivity of Al with most metals has disturbed the use of metallic fibers in aluminum composites until now. In this study, the influence of the reaction products at the fiber/matrix interface on high temperature properties of the composites was investigated by different solution treatment conditions. It is found that hardness and strength increase with an increase the solution treatment temperature (Tst). Reaction products (Al-Fe intermetallic compounds) resulting from solution treatments were formed along the fiber/matrix interface at 773 K or higher. The composites without interfacial reaction products (Tst=763 K) showed excellent rotating-bending fatigue life at 573 K. The fatigue crack propagation in this composite occurred at the necking region of the metal fiber because no cracks were observed in the interfacial reaction products.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 2696-2699
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.2696
• Online since: June 2010
• Authors: Nobuyuki Fuyama, Akira Terayama, Toshio Fujii, Tohru Shiraishi, Yuki Miyake, Gen Sasaki
• Keywords: Aluminum Alloy Composites, Fe-Cr-Si Metal Fiber, High Temperature Property, Interfacial Reaction

References

[1] T. Shiraishi and A. Katsuya: Preprints of Industry- Academia- Government collaboration Meeting of Kanagawa Prefecture (2002), p.2302.

[2] N. Fuyama, A. Terayama, T. Fujii, T. Hagiwara, T. Shiraishi, A. Katsuya and G. Sasaki: Preprints of National Meeting of Jpn. Foundry Eng. Soc. (2006) p.62.

[3] Y.B. Choi, G. Sasaki, K. Matsugi, S. Kondoh and O. Yanagisawa: Key Eng. Mater. Vol. 326-328 (2006) p.1741.

[4] F. Boland, C. Colin, C. Salomon and F. Delannay: Acta mater. Vol. 46, (1998) p.6311.

[5] F. Boland, C. Colin and F. Delannay: Metall. Mater. Trans. A Vol. 29A, (1998) p.1727.

[6] C. Salmon, C. Colin, R. Molins and F. Delannay: Mater. Sci. Eng. A Vol. 334 (2002) p.193.

[7] A. Katsuya: Jpn. Published Patent, 73711, (2003).

[8] A. Inoue, A. Katsuya, K. Amiya and T. Masumoto: Mater. Trans. JIM Vol. 36 (1995) p.802.

[9] D. Naoi and M. Kajihara: Mater. Sci. Eng. A Vol. 459 (2007) p.375.

[10] W. Zhang, M. Gu, J. Chen, Z. Wu, F. Zhang and H. E. Deve: Mater. Sci. Eng. A Vol. 341 (2003) p.9 Fig. 5 Relationship between number of cycles to fracture and solution treatment temperature.
