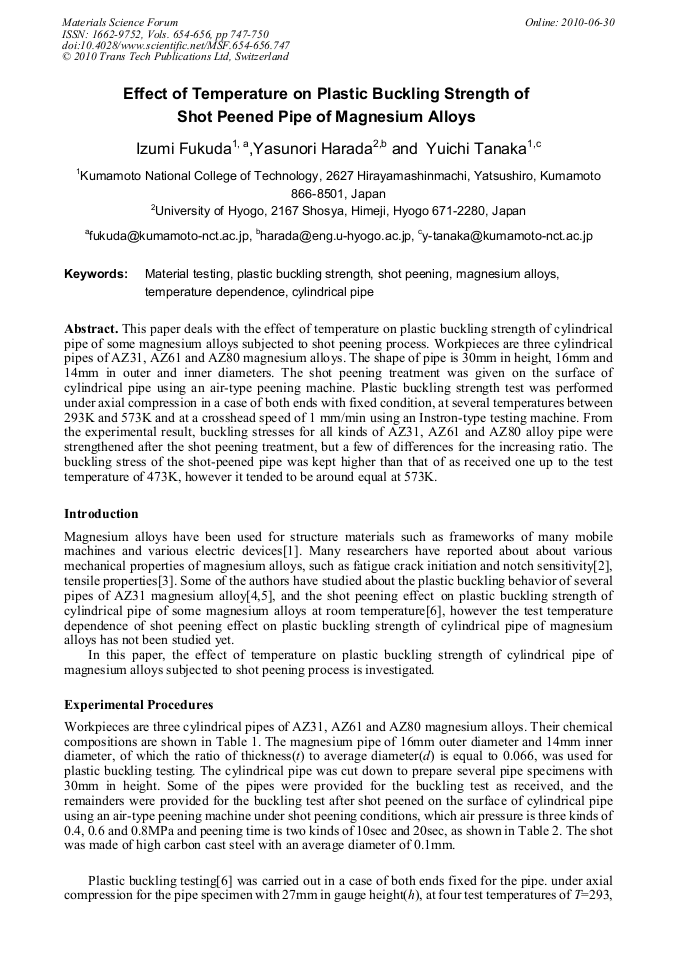

Effect of Temperature on Plastic Buckling Strength of Shot Peened Pipe of Magnesium Alloys

Abstract:

This paper deals with the effect of temperature on plastic buckling strength of cylindrical pipe of some magnesium alloys subjected to shot peening process. Workpieces are three cylindrical pipes of AZ31, AZ61 and AZ80 magnesium alloys. The shape of pipe is 30mm in height, 16mm and 14mm in outer and inner diameters. The shot peening treatment was given on the surface of cylindrical pipe using an air-type peening machine. Plastic buckling strength test was performed under axial compression in a case of both ends with fixed condition, at several temperatures between 293K and 573K and at a crosshead speed of 1 mm/min using an Instron-type testing machine. From the experimental result, buckling stresses for all kinds of AZ31, AZ61 and AZ80 alloy pipe were strengthened after the shot peening treatment, but a few of differences for the increasing ratio. The buckling stress of the shot-peened pipe was kept higher than that of as received one up to the test temperature of 473K, however it tended to be around equal at 573K.

• Periodical: Materials Science Forum (Volumes 654-656)
• Pages: 747-750
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.654-656.747
• Online since: June 2010
• Authors: Izumi Fukuda, Yasunori Harada, Yuichi Tanaka
• Keywords: Cylindrical Pipe, Magnesium Alloy, Material Testing, Plastic Buckling Strength, Shot Peening, Temperature Dependence

References

[1] S. Kamado and Y. Kojima: Journal Japan Soc. Tech. Plasticity Vol. 44-504 (2003), p.3 (in Japanese).

[2] K. Kusukawa and K. Takao: Trans. JSME (Series A) Vol. 68-671 (2002), p.1092 (in Japanese).

[3] H. Takuda and D. Inoue: Journal Japan Soc. Tech. Plasticity Vol. 43-503 (2002), p.1173 (in Japanese).

[4] I. Fukuda, Y. Ohishi and T. Murai: Proceedings of the 8 th International Conference on Technology of Plasticity, Verona, Italy (2005), p.419.

[5] I. Fukuda, Y. Tanaka and Y. Harada: Journal Japan Soc. Tech. Plasticity Vol. 59-576 (2009), p.59 (in Japanese).

[6] I. Fukuda, Y. Tanaka and Y. Harada: The Proceedings of the 60th Japanese Joint Conference for the Technology of Plasticity (2009), p.201 (in Japanese).
