Study on the Static Recrystallization Behavior of Thermal Deformation of Austenitic Stainless Steel for Nuclear Power

Jie Liu; Guang Wei Fan; Pei De Han; Jian Feng Yang; Jian Sheng Liu; Dong Sheng Ge; Guan Jun Qiao

doi:10.4028/www.scientific.net/MSF.658.165

Paper Titles

Study of Cyclohexane Photooxidation over Pt-WO₃ Catalysts Mixed with TiO₂ under Visible Light Irradiation
p.149

Removal of NO₂ and SO₂ Using Porous Media Made from Sewage Sludge
p.153

Influence of Strain Aging on the Microstructure-Property of an X100 Pipeline Steel
p.157

Effect of Electron Beam Irradiation on the Properties of Polyethylene Oxide–TiO₂ Composite Electrolyte for Dye Sensitized Solar Cells
p.161

Study on the Static Recrystallization Behavior of Thermal Deformation of Austenitic Stainless Steel for Nuclear Power
p.165

Synthesis of Ternary Machinable Al₂O₃/Ti₂AlC Composites by High Energy Milling and In Situ Hot-Pressing Method
p.169

Novel Preparation of Silver-Coated Copper in Aqueous Solution
p.173

The Theoretical Research of Constitutive Property, Reactivity and FTIR of Chitosan
p.177

Synthesis of Ti₃AlC₂ Powder by High Energy Ball Milling and High Temperature Heat Treatment
p.181

HomeMaterials Science ForumMaterials Science Forum Vol. 658Study on the Static Recrystallization Behavior of...

Study on the Static Recrystallization Behavior of Thermal Deformation of Austenitic Stainless Steel for Nuclear Power

Abstract:

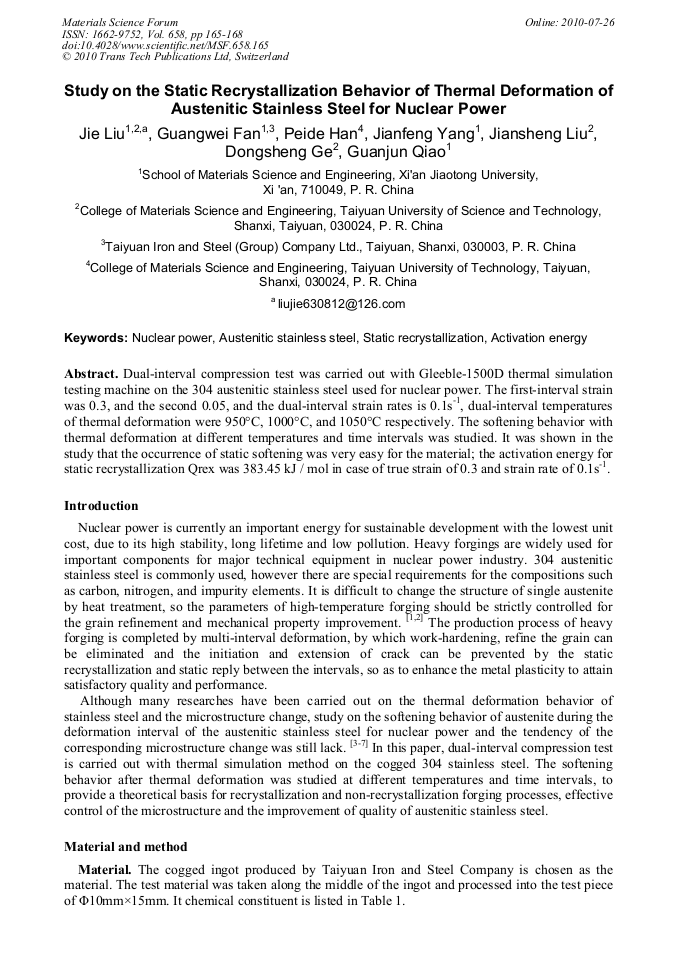

Dual-interval compression test was carried out with Gleeble-1500D thermal simulation testing machine on the 304 austenitic stainless steel used for nuclear power. The first-interval strain was 0.3, and the second 0.05, and the dual-interval strain rates is 0.1s-1, dual-interval temperatures of thermal deformation were 950°C, 1000°C, and 1050°C respectively. The softening behavior with thermal deformation at different temperatures and time intervals was studied. It was shown in the study that the occurrence of static softening was very easy for the material; the activation energy for static recrystallization Qrex was 383.45 kJ / mol in case of true strain of 0.3 and strain rate of 0.1s-1.
