Preparation and Characterization of Silicon Nanowire Arrays for Solar Cell

Abstract:

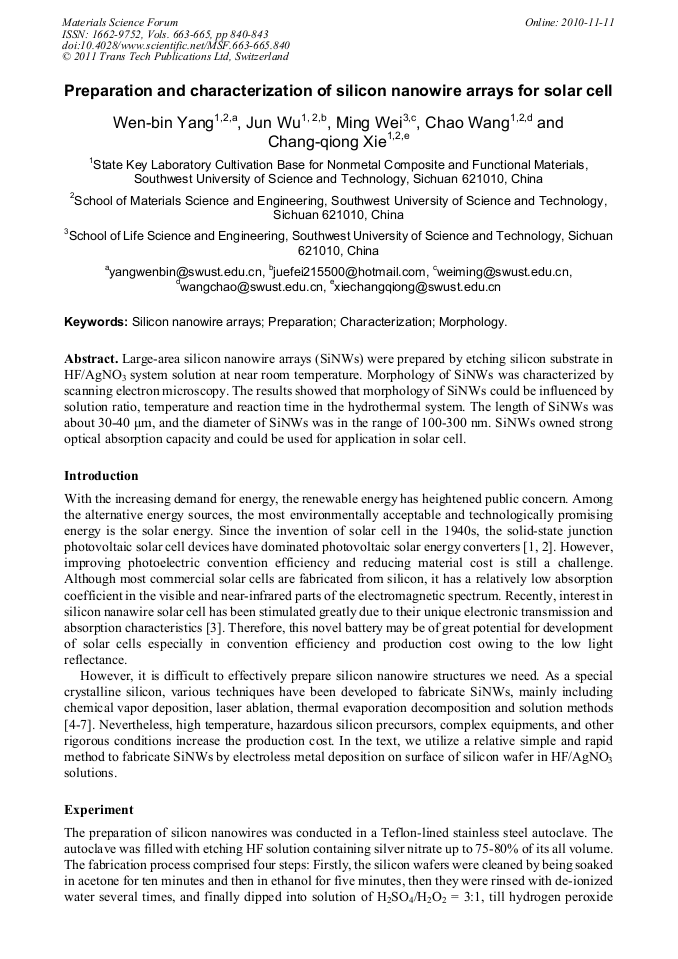

Article Preview

Large-area silicon nanowire arrays (SiNWs) were prepared by etching silicon substrate in HF/AgNO3 system solution at near room temperature. Morphology of SiNWs was characterized by scanning electron microscopy. The results showed that morphology of SiNWs could be influenced by solution ratio, temperature and reaction time in the hydrothermal system. The length of SiNWs was about 30-40 μm, and the diameter of SiNWs was in the range of 100-300 nm. SiNWs owned strong optical absorption capacity and could be used for application in solar cell.

Info:

Periodical:

Materials Science Forum (Volumes 663-665)

Edited by:

Yuan Ming Huang

Pages:

840-843

DOI:

10.4028/www.scientific.net/MSF.663-665.840

Citation:

W. B. Yang et al., "Preparation and Characterization of Silicon Nanowire Arrays for Solar Cell", Materials Science Forum, Vols. 663-665, pp. 840-843, 2011

Online since:

November 2010

Export:

Price:

$35.00

[1] K. Q. Peng, W. Xing and S. T. Lee: Appl. Phys. Lett. Vol. 92 (2008), p.163103.

[2] K. Q. Peng, J. S. Jie, W. J. Zhang and S. T. Lee: Appl. Phys. Lett. Vol. 93 (2008), p.033105.

[3] J. S. Jie, W. J. Zhang, K. Q. Peng, G. D. Yuan, C. S. Lee and S. T. Lee: Adv. Funct. Mater. Vol. 18 (2008), p.3251.

[4] O. L. Muskens, S. L. Diedenhofen, M. H. M. Weert, M. T. Borgstrom, E. P. A. M. Bakkers and J. G. Rivas: Adv. Funct. Mater. Vol. 18 (2008), p.1039.

[5] A. L. Schmitt and S. Jin: Chem. Mater. Vol. 19 (2007), p.126.

[6] A. P. Goodey, S. M. Eichfeld, K. K. Lew, J. M. Redwing and T. E. Mallouk: J. Am. Chem. Soc. Vol. 129 (2007), p.12344.

[7] E. C. Garnett and P. D. Yang: J. Am. Chem. Soc. Vol. 130 (2008), p.9244.
