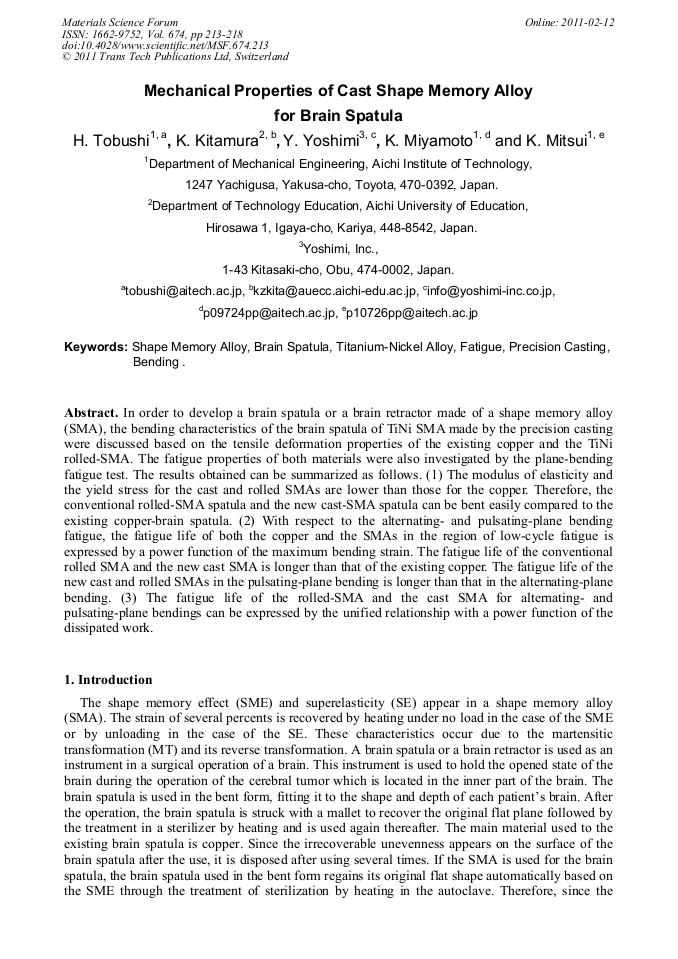

Mechanical Properties of Cast Shape Memory Alloy for Brain Spatula

Abstract:

In order to develop a brain spatula or a brain retractor made of a shape memory alloy (SMA), the bending characteristics of the brain spatula of TiNi SMA made by the precision casting were discussed based on the tensile deformation properties of the existing copper and the TiNi rolled-SMA. The fatigue properties of both materials were also investigated by the plane-bending fatigue test. The results obtained can be summarized as follows. (1) The modulus of elasticity and the yield stress for the cast and rolled SMAs are lower than those for the copper. Therefore, the conventional rolled-SMA spatula and the new cast-SMA spatula can be bent easily compared to the existing copper-brain spatula. (2) With respect to the alternating- and pulsating-plane bending fatigue, the fatigue life of both the copper and the SMAs in the region of low-cycle fatigue is expressed by a power function of the maximum bending strain. The fatigue life of the conventional rolled SMA and the new cast SMA is longer than that of the existing copper. The fatigue life of the new cast and rolled SMAs in the pulsating-plane bending is longer than that in the alternating-plane bending. (3) The fatigue life of the rolled-SMA and the cast SMA for alternating- and pulsating-plane bendings can be expressed by the unified relationship with a power function of the dissipated work.

• Periodical: Materials Science Forum (Volume 674)
• Pages: 213-218
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.674.213
• Online since: February 2011
• Authors: Hisaaki Tobushi, K. Kitamura, Yukiharu Yoshimi, K. Miyamoto, K. Mitsui
• Keywords: Bending, Brain Spatula, Fatigue, Precision Casting, Shape Memory Alloy Actuator, Titanium-Nickel Alloy

References

[1] Yoshimi, Y., Kitamura, K., Tokuda, M., Inaba, T., Asai, J. and Watanabe, Y., Ti-Ni Shape Memory Alloys Precision Casting Products and Its Process, Proc. Int. Conf. Shape Memory and Superelastic Tech. (2008), pp.387-396.

[2] Tobushi, H., Tanaka, K., Kimura, K., Hori, T. and Sawada, T., Stress-Strain-Temperature Relationship Associated with the R-phase Transformation in TiNi Shape Memory Alloy, JSME Inter. J., Ser. I, Vol. 35, No. 3 (1992), pp.278-284.

DOI: 10.1299/jsmea1988.35.3_278

[3] Tobushi, H., Okumura, K., Nakagawa K. and Takata, K. Fatigue Properties of TiNi Shape Memory Alloy, Trans. Mater. Res. Soc. Jap., Vol. 26, No. 1 (2001), pp.347-350.

[4] Furuichi, Y., Tobushi, H., Ikawa, T. and Matsui, R., Fatigue Properties of TiNi Shape-Memory Alloy Wire Subjected to Bending with Various Strain Ratios. Proc. Instn. Mech. Engrs., Vol. 217 (2003).

DOI: 10.1177/146442070321700201

[5] Shigley, J. E. and Mischke, C. R., Mechanical Engineering Design, 5th ed., McGraw-Hill, New York (1989), pp.270-274.

[6] Tobushi, H., Nakahara, T., Shimeno, Y. and Hashimoto, T., Low-Cycle Fatigue of TiNi Shape Memory Alloy and Formulation of Fatigue Life, Trans. ASME, J. Eng. Mater. Tech., Vol. 122 (2000), pp.186-191.

DOI: 10.1115/1.482785
