HomeMaterials Science ForumMaterials Science Forum Vols. 675-677Uniform High Magnetostrictive Properties of...

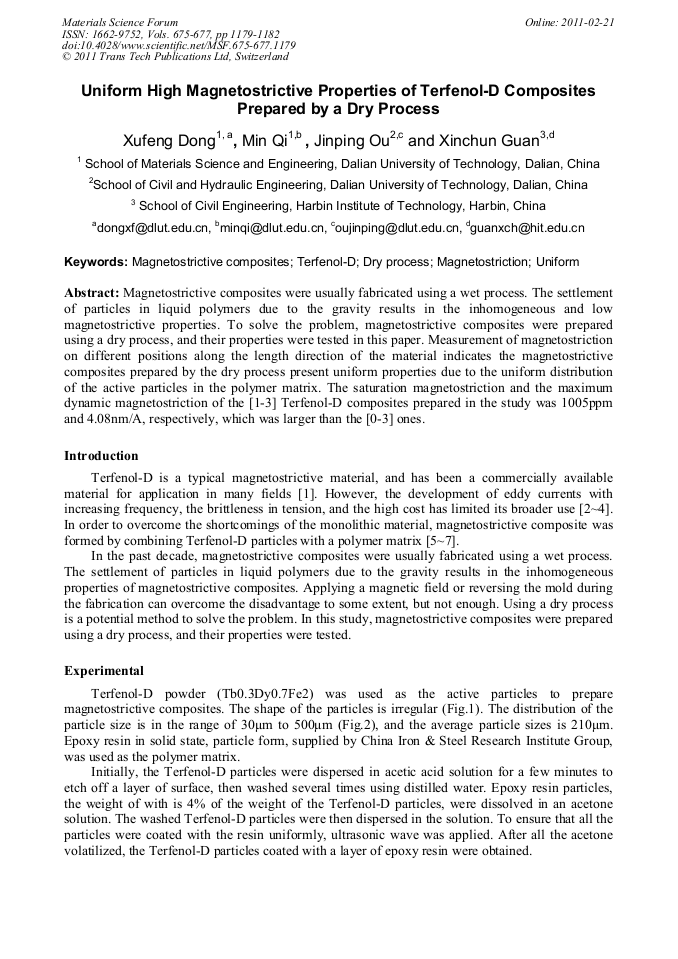

Uniform High Magnetostrictive Properties of Terfenol-D Composites Prepared by a Dry Process

Abstract:

Magnetostrictive composites were usually fabricated using a wet process. The settlement of particles in liquid polymers due to the gravity results in the inhomogeneous and low magnetostrictive properties. To solve the problem, magnetostrictive composites were prepared using a dry process, and their properties were tested in this paper. Measurement of magnetostriction on different positions along the length direction of the material indicates the magnetostrictive composites prepared by the dry process present uniform properties due to the uniform distribution of the active particles in the polymer matrix. The saturation magnetostriction and the maximum dynamic magnetostriction of the [1-3] Terfenol-D composites prepared in the study was 1005ppm and 4.08nm/A, respectively, which was larger than the [0-3] ones.

You might also be interested in these eBooks

Advanced Material Science and Technology

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 675-677)

Pages:

1179-1182

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.675-677.1179

Citation:

Cite this paper

Online since:

February 2011

Authors:

Xu Feng Dong, Min Qi, Jin Ping Ou, Xin Chun Guan

Keywords:

Dry Process, Magnetostriction, Magnetostrictive Composites, Terfenol-D, Uniform

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A.E. Clark, B.D. DeSavage and R. Bozorth: Phys. Rev. Vol. 138 (1965), p.216.

Google Scholar

[2] S.M. Na, S.J. Suh, K.H. Shin and S.H. Lim: J. Magn. Magn. Mater. Vol. 272-276 (2004), p. (2076).

Google Scholar

[3] S.W. Or, C.S. Yung and C.Y. Lo: IEEE Transactions on Magnetics Vol. 42 (2006), p.47.

Google Scholar

[4] S.W. Or, N. Nersessian and G.P. Carman: IEEE Transactions on Magnetics Vol. 40 (2004), p.71.

Google Scholar

[5] X.F. Dong，M. Qi，X.C. Guan and J.P. Ou: Polymer Testing Vol. 29 (2010), p.369.

Google Scholar

[6] X.C. Guan, X.F. Dong and J.P. Ou: J. Magn. Magn. Mater. Vol. 321 (2009), p.2742.

Google Scholar

[7] C. Rodríguez, A. Barrio, I. Orue, J. L. Vilas, L.M. Leon, J. M. Barandiarán and M. L. Fdez-Gubieda Ruiz: Sensors and Actuators A Vol. 142 (2008), p.538.

DOI: 10.1016/j.sna.2007.05.021

Google Scholar
