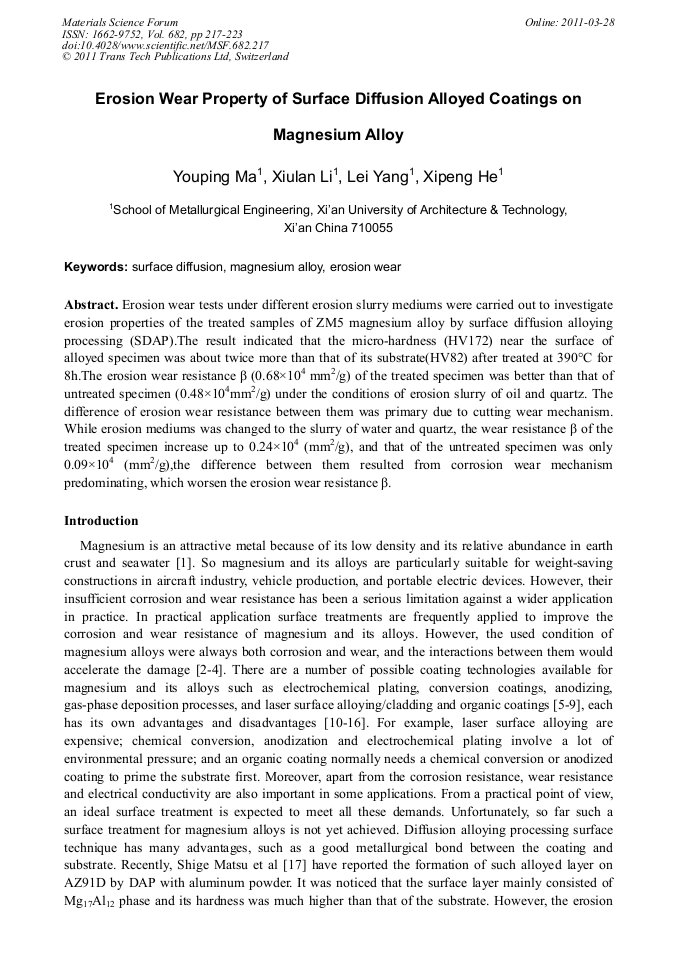

Erosion Wear Property of Surface Diffusion Alloyed Coatings on Magnesium Alloy

Abstract:

Erosion wear tests under different erosion slurry mediums were carried out to investigate erosion properties of the treated samples of ZM5 magnesium alloy by surface diffusion alloying processing (SDAP).The result indicated that the micro-hardness (HV172) near the surface of alloyed specimen was about twice more than that of its substrate(HV82) after treated at 390°C for 8h.The erosion wear resistance β (0.68×104 mm2/g) of the treated specimen was better than that of untreated specimen (0.48×104mm2/g) under the conditions of erosion slurry of oil and quartz. The difference of erosion wear resistance between them was primary due to cutting wear mechanism. While erosion mediums was changed to the slurry of water and quartz, the wear resistance β of the treated specimen increase up to 0.24×104 (mm2/g), and that of the untreated specimen was only 0.09×104 (mm2/g),the difference between them resulted from corrosion wear mechanism predominating, which worsen the erosion wear resistance β.

• Periodical: Materials Science Forum (Volume 682)
• Pages: 217-223
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.682.217
• Online since: March 2011
• Authors: You Ping Ma, Xiu Lan Li, Lei Yang, Xi Peng He
• Keywords: Erosion Wear, Magnesium Alloy, Surface Diffusion

References

[1] M.M. Avedesian, H. Baker: ASM Specialty Handbook: Magnesium and Magnesium Alloys (ASM International, 1999).

[2] X. Jiang, S. Li, S. Li: Corrosion and wearing of metal material (Chemical Industry Press, Beijing 2003).

[3] N. Yamauchi, K. Demizu, N. Ueda, N.K. Cuong, T. Sone, Y. Hirose: Surface and Coatings Technology Vol. 193 (2005), p.277.

DOI: 10.1016/j.surfcoat.2004.07.056

[4] G. Song, A. Atrensa, M. Dargusch: Corrosion Science Vol. 41 (1999), p.249.

[5] P.L. Hagans, C.M. Haas, in: ASM Handbook, Surface Engineering, edited by C.M. Catherine, J.A. Sprague and F.A. Smidt, Jr. (ASM International, 1994).

[6] W.P. Innes: Modern Electroplating (Wiley-Interscience, New York, 1974).

[7] G. Reiners, M. Griepentrog: Surface and Coating Technology Vol. 76-77 (1995), p.809.

[8] F. Stippich, E. Vera, G.K. Wolf, G. Berg, Chr. Friedrich: Surface and Coating Technology Vol. 103-104 (1998), p.29.

[9] A. Yamamoto, A. Watanabe, K. Sugahara, H. Tsubakino, S. Fukumoto: Scripta mater. Vol. 44 (2001), p.1039.

[10] V.T. Truong, P.K. Lai, B.T. Moore, R.F. Muscat, M.S. Russo: Synthetic Metals Vol. 110 (2000), p.7.

[11] A.L. Rudd, C.B. Breslin, F. Mansfeld: Corrosion Science Vol. 42 (2000), p.275.

[12] C.Y. Wang, P. Yao, D.H. Bradhurst, H.K. Liu, S.X. Dou: Joural of Alloys and Compounds Vol. 285 (1999), p.267.

[13] I. Nakatsugawa: International Magnesium Association (1996), p.24.

[14] R.H. Unger, in: ASM Handbook: Corrosion (ASM International, 1987).

[15] H.O. Pierson, in: ASM Handbook: Corrosion (ASM International, 1987).

[16] J.E. Gray, B. Luan: Joural of Alloys and Compounds Vol. 336 (2002), p.88.

[17] S.M. Nakamura, N. Siatou, K. Shimojima: Journal of Material Science Letters Vol. 19(4) (2000), p.473.

[18] Y.P. Ma, J. Li, J. Zhu, L. Yang, Y.G. Liu, Z.Y. Li, et al: Acat Metallurgica Sinica (Englishi Letters) Vol. 20(1) (2007), p.72.

[19] Z. Wu, P. Li, S. Liu, et al: Foundry (1988), p.281.
