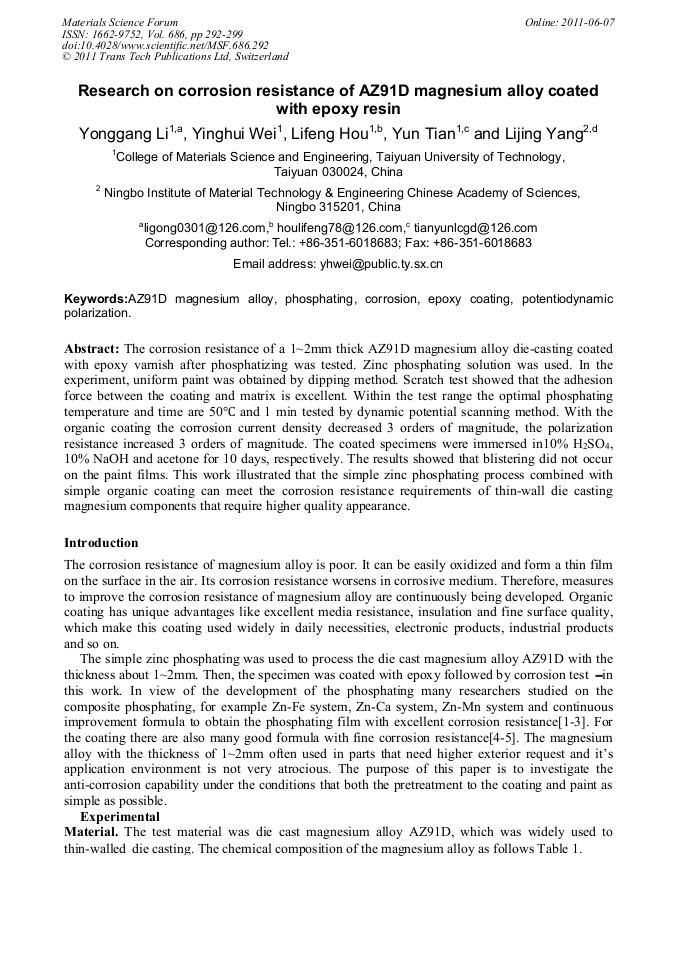

Research on Corrosion Resistance of AZ91D Magnesium Alloy Coated with Epoxy Resin

Abstract:

The corrosion resistance of a 1~2mm thick AZ91D magnesium alloy die-casting coated with epoxy varnish after phosphatizing was tested. Zinc phosphating solution was used. In the experiment, uniform paint was obtained by dipping method. Scratch test showed that the adhesion force between the coating and matrix is excellent. Within the test range the optimal phosphating temperature and time are 50°C and 1 min tested by dynamic potential scanning method. With the organic coating the corrosion current density decreased 3 orders of magnitude, the polarization resistance increased 3 orders of magnitude. The coated specimens were immersed in10% H₂SO₄, 10% NaOH and acetone for 10 days, respectively. The results showed that blistering did not occur on the paint films. This work illustrated that the simple zinc phosphating process combined with simple organic coating can meet the corrosion resistance requirements of thin-wall die casting magnesium components that require higher quality appearance.

• Periodical: Materials Science Forum (Volume 686)
• Pages: 292-299
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.686.292
• Online since: June 2011
• Authors: Yong Gang Li, Ying Hui Wei, Li Feng Hou, Yun Tian, Lijing Yang
• Keywords: AZ91D Magnesium Alloy, Corrosion, Epoxy Coating, Phosphating, Potentiodynamic Polarization

References

[1] Li Qing, Xua Shuqiang, Hua Junying, et al. Electrochemical Acta, Vol. 55 (2010), p.887.

[2] Niu Li-yuan, Li Guang-yu, Jiang Zhong-hao. Trans. Nonferrous Met. SOC. China, Vol. 16 (2006), p.567.

[3] Xiang Hongzhao, Chen Wei, Chen Tianlang, et. al. Materials Protection, Vol. 37 (2004), p.13.

[4] Liu Jianguo, Gong Gaoping, Yan Chuanwei. Electrochemical Acta, Vol. 50 (2005), p.3320.

[5] Liu Xuwen, Xiong Jinping, Lv Yongwu, et al. Progress in Organic Coating, 64 (2009), p.497.

[6] ASTM D2651-01. Standard guide for preparation of metal surfaces for adhesive bonding, (2001).

[7] ISO Standards Handbook: Paints and varnishes: Volume 1. General ttest methods: Part 1, ISO2409 code, 2002, International Organization for Standardization (ISBN 2-67-10354-7).

[8] Niu L.Y., Jiang Z.H., Li G.Y. surface coatings and technology, Vol. 200(2006), p.3021.

[9] L. Kouisni, M. Azzi, M. Zertoubi, F. Dalard, S. Maximovitch, Surf. Coat. Technol. Vol. 185 (2004) , p.58.

[10] Shigeyoshi Maeda, Masahiro Yamamoto, Progress in Organic Coatings, 33 (1998), p.83.

[11] George Górecki. Matal Finishing, Vol. 98 (2000), p.97.

[12] Bi-lan Lin, Jin-tang Lu, Gang Kong. Surface & Coatings Technology, Vol. 202 (2008), p.1831.

[13] P. Puomi, H.M. Fagerholm, J.B. Rosenholm. Surface and Coatings Technology, Vol. 115 (1999), p.70.

[14] Chhiu-Tsu Lin. Progress in Organic Coatings, Vol. 42 (2001), p.226.
