Effect of Sr on Microstructure and Mechanical Properties of Mg-9Li-3Al Alloy

Abstract:

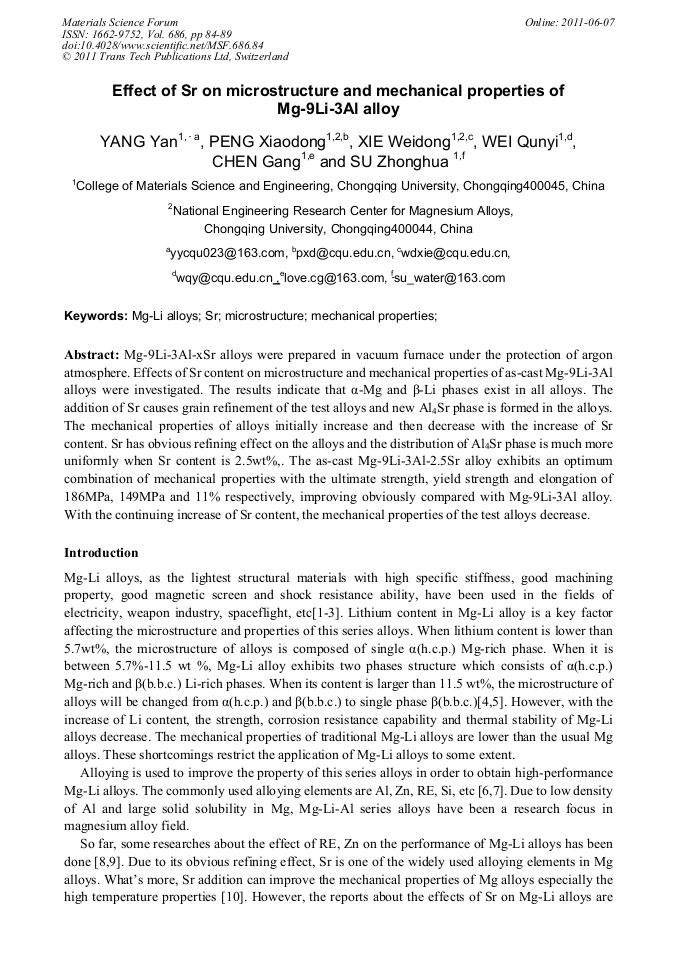

Mg-9Li-3Al-xSr alloys were prepared in vacuum furnace under the protection of argon atmosphere. Effects of Sr content on microstructure and mechanical properties of as-cast Mg-9Li-3Al alloys were investigated. The results indicate that α-Mg and β-Li phases exist in all alloys. The addition of Sr causes grain refinement of the test alloys and new Al₄Sr phase is formed in the alloys. The mechanical properties of alloys initially increase and then decrease with the increase of Sr content. Sr has obvious refining effect on the alloys and the distribution of Al₄Sr phase is much more uniformly when Sr content is 2.5wt%,. The as-cast Mg-9Li-3Al-2.5Sr alloy exhibits an optimum combination of mechanical properties with the ultimate strength, yield strength and elongation of 186MPa, 149MPa and 11% respectively, improving obviously compared with Mg-9Li-3Al alloy. With the continuing increase of Sr content, the mechanical properties of the test alloys decrease.

• Periodical: Materials Science Forum (Volume 686)
• Pages: 84-89
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.686.84
• Online since: June 2011
• Authors: Yan Yang, Xiao Dong Peng, Wei Dong Xie, Qun Yi Wei, Gang Chen, Zhong Hua Su
• Keywords: Mg-Li Alloy, Microstructure, SR

References

[1] Wang T, Zhang M. L and WU R. Z: Mater Lett Vol. 62(2008), p.1846.

[2] Chang T. C, Wang J. Y and Chu C. L, Lee S: Mater Lett Vol. 60(2006), pp.3272-3276.

[3] Meng X. R, Wu R. Z, Zhang M. L, Wu L. B and Cu C. L: J Alloy Compd . Vol. 486(2009), p.722.

[4] Kral M. V, Muddle B. C and Nie J. F: Mater Sci Eng A Vol. 460(2007), p.227.

[5] Song G. S, Kral M. V: Mater Charact Vol. 54(2005), p.279.

[6] Wang T, Zhang M. L, Niu Z. Y and Liu B: J Rare Earth Vol. 24(2006), p.797.

[7] Ifeanyi A, Yasuhiro G, Atsuya S, Shigeharu K, Yo K and Suguru T: Mater. Sci. Eng. A Vol. 380(2004), p.93.

[8] Drozd Z, Zuzanka T and Stanislav K: J Alloy Compd Vol. 378(2004), p.192.

[9] LuY. Z, Wang Q. D and Zeng,X. Q: Mater. Sci. Eng. A Vol. 278(2000), p.66.

[10] Yang M. B, Pan F. S and Cheng R. J: Mater. Sci. Eng. A Vol. 491(2008), p.440.

[11] Chiu C. H, Wu H. Y, Wang J. Y and Lee S: J Alloy Compd Vol. 460(2000), p.246.

[12] Son G. S, Staiger M and Kral M. V: Mater Sci Eng A Vol. 371(2004), p.371.

[13] Aljarrah M, Parvez M. A, Li J, Essadiqi E and Medraj M: Sci Technol Adv Mater Vol. 8(2007), p.237.

[14] Liu B, Zhang M. L and Wu R. Z: Mater Sci Eng A Vol. 487(2007), p.347.
