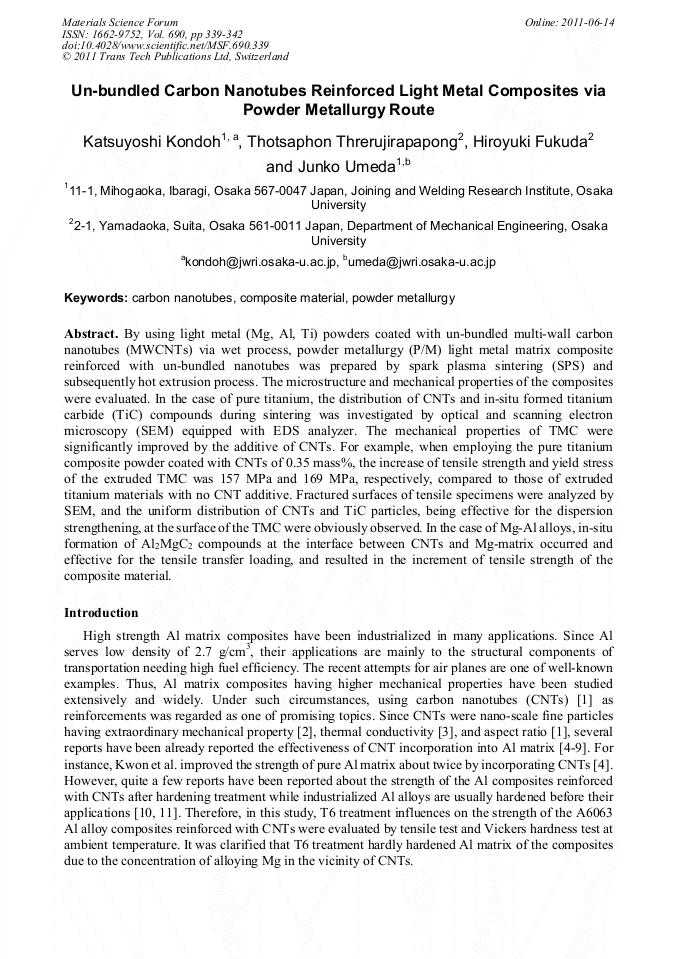

Un-Bundled Carbon Nanotubes Reinforced Light Metal Composites via Powder Metallurgy Route

Abstract:

By using light metal (Mg, Al, Ti) powders coated with un-bundled multi-wall carbon nanotubes (MWCNTs) via wet process, powder metallurgy (P/M) light metal matrix composite reinforced with un-bundled nanotubes was prepared by spark plasma sintering (SPS) and subsequently hot extrusion process. The microstructure and mechanical properties of the composites were evaluated. In the case of pure titanium, the distribution of CNTs and in-situ formed titanium carbide (TiC) compounds during sintering was investigated by optical and scanning electron microscopy (SEM) equipped with EDS analyzer. The mechanical properties of TMC were significantly improved by the additive of CNTs. For example, when employing the pure titanium composite powder coated with CNTs of 0.35 mass%, the increase of tensile strength and yield stress of the extruded TMC was 157 MPa and 169 MPa, respectively, compared to those of extruded titanium materials with no CNT additive. Fractured surfaces of tensile specimens were analyzed by SEM, and the uniform distribution of CNTs and TiC particles, being effective for the dispersion strengthening, at the surface of the TMC were obviously observed. In the case of Mg-Al alloys, in-situ formation of Al₂MgC₂ compounds at the interface between CNTs and Mg-matrix occurred and effective for the tensile transfer loading, and resulted in the increment of tensile strength of the composite material.

• Periodical: Materials Science Forum (Volume 690)
• Pages: 339-342
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.690.339
• Online since: June 2011
• Authors: Katsuyoshi Kondoh, Thotsaphon Threrujirapapong, Hiroyuki Fukuda, Junko Umeda
• Keywords: Carbon Nanotube (CN), Composite Material, Powder metallurgy

References

[1] S. Iijima, Nature 354 (1991) 56.

[2] K. Mylvaganam, L. C. Zhang, Carbon 42 (2004) 2025.

[3] Q. Z. Xue, Nanotechnology 17 (2006) 1655.

[4] H. Kwon, M. Estili, K. Takagi, T. Miyazaki and A. Kawasaki, Carbon 47 (2009) 570.

[5] T. Laha and A. Agarwal, Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 480 (2008) 323.

[6] T. Laha, A. Agarwal, T. McKechnie and S. Seal, Materials Science and Engineering A 381 (2004) 249.

[7] K. Morsi, A. M. K. Esawi, P. Borah, S. Lanka, A. Sayed and M. Taher, Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 527 (2010) 5686.

DOI: 10.1016/j.msea.2010.05.081

[8] H. Uozumi, K. Kobayashi, K. Nakanishi, T. Matsunaga, K. Shinozaki, and H. Sakamoto et al., Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 495 (2008) 282.

[9] C. F. Deng, X. X. Zhang, D. Z. Wang, Q. Lin and A. B. Li, Materials Letters 61 (2007) 1725.

[10] G. Das, M. Das, S. Ghosh, P. Dubey and A. K. Ray, Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 527 (2010) 1590.

[11] A. Munitz, C. Cotler and M. Talianker, Journal of Materials Science 35 (2000) 2529.

[12] K. Kondoh, H. Fukuda, J. Umeda, H. Imai, B. Fugetsu, and M. Endo, Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 527 (2010) 4103.

DOI: 10.1016/j.msea.2010.03.049

[13] K. Kondoh, T. Threrujirapapong, H. Imai, J. Umeda, and B. Fugetsu, Composite Science and Technology 69 (2009) 1077.

DOI: 10.1016/j.compscitech.2009.01.026

[14] H. Fukuda, J. A. Szpunar, K. Kondoh and R. Chromik, Corrosion Science 52 (2010) 3917.

[15] E.A. Olevsky, S. Kandukuri, and L. Froyen, Journal of Applied Physics 102 (2007).

[16] J. Guo and X. Yuan, Materials Science and Engineering a-Structural Materials Properties Microstructure and Processing 499 (2009) 212.

[17] A. Fujiwara, K. Ishii, H. Suematsu, H. Kataura, Y. Maniwa, and S. Suzuki et al., Chemical Physics Letters 336 (2001) 205.

DOI: 10.1016/s0009-2614(01)00111-7

[18] Y. Maniwa, H. Kataura, M. Abe, S. Suzuki, Y. Achiba, and H. Kira et al., Journal of the Physical Society of Japan 71 (2002) 2863.

DOI: 10.1143/jpsj.71.2863

[19] A. Kimura, M. Shibata, K. Kondoh, Y. Takeda, M. Katayama, and T. Kanie., Applied Physics Letters 70 (1997) 3615.

[20] K. J. Holub and L. J. Matienzo, Applied Surface Science 9 (1981) 22.
