Synthesis of Perovskite Brown Pigments

Abstract:

This study aims to synthesize Cr doped Perovskite brown pigments. The pigment were synthesized by doping Cr₂O₃(0.01 ~ 0.05mole) for TiO₂(0.993 ~ 0.963 mole) at 1150 ~ 1350°C. The samples were characterized by X-ray diffraction (XRD), Raman Spectrometer, Scanning Electron Microscope(SEM) and the UV/Vis spectroscopy. The optimum composition was CaCr_0.03Ti_0.978O₃and heating condition was 1300°C for 3h of soaking time. The doped Cr ion for Perovskite was observed to be Cr(Ⅲ) and Cr(Ⅳ). The brown color was mixed with violet doped by Cr⁴⁺(³A₂ → ³T₂) and Blueish-Green doped by Cr³⁺(4A_2g → ⁴F_1g). The results of SEM analysis showed the Perovskite structure and the particle size was approximately 2µm. The color in Frit 6060 glaze adding 10wt% pigment was Redish Brown, and CIE Lab parameters were L^*= 41.53, a^*=13.27 and b^*=9.94 .

You might also be interested in these eBooks

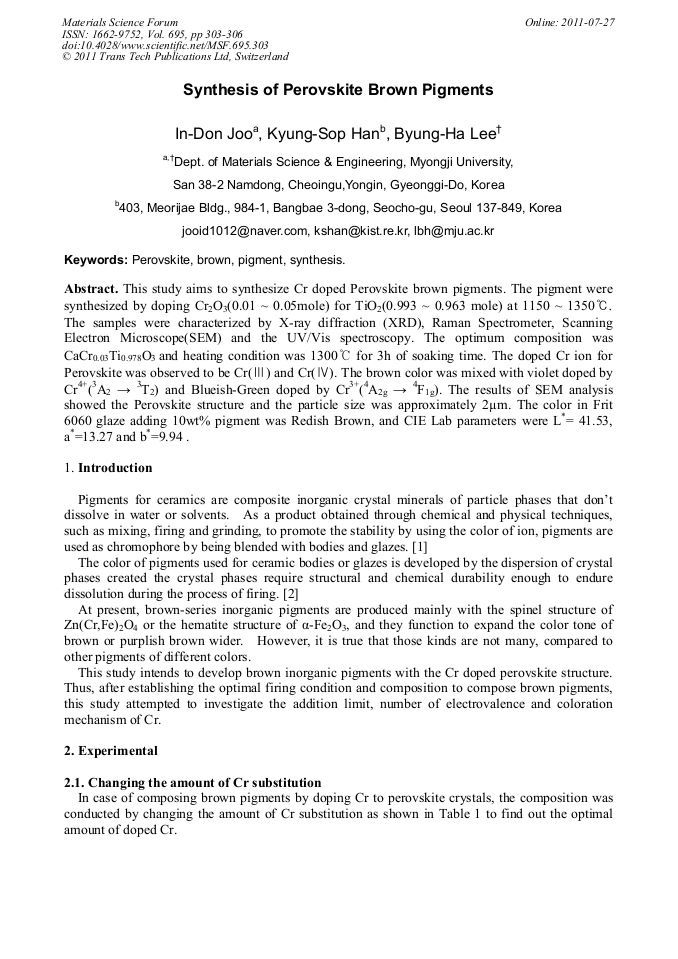

View Preview

Info:

Periodical:

Materials Science Forum (Volume 695)

Pages:

303-306

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.695.303

Citation:

Cite this paper

Online since:

July 2011

Authors:

In Don Joo, Kyong Sop Han, Byung Ha Lee

Keywords:

Brown, Perovskite, Pigment, Synthesis

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. De A. Licciulli, M. Nacucchi, Uniformly Dispersed Pr+3 Doped Silica Glass by the Sol-Gel Process, J. Non-Crys. Solid 201.

DOI: 10.1016/0022-3093(96)00166-4

Google Scholar

[1] 153-58(1996).

Google Scholar

[2] A. Garcia, M. Llusar, J. Calbo, M. A. Tena and G. Monrós. Low-toxicity Red Ceramic Pigments for Porcelainised Stoneware from Lanthanide-Cerianite Solid Solutions, Green Chemistry 3, 238-42 (2001).

DOI: 10.1039/b105830b

Google Scholar

[3] Neil T. McDevitt and William L. Baun, Infrared Absorption Study of Metal Oxides in the Low Frequency Region (700-240cm-1), J. Spectrochimica Acta., 20.

DOI: 10.1016/0371-1951(64)80079-5

Google Scholar

[5] 799-808 (1964).

Google Scholar

[4] W. Hajjajia, C. Zanellib, M.P. Seabraa, M. Dondib, J.A. Labrinchaa, Cr-doped titanite pigment based on industrial rejects, J. Chemical Engineering., 158, 167-72(2010).

DOI: 10.1016/j.cej.2009.12.026

Google Scholar
