GTA Welding of Copper Thick Plates by Using ERCuTi Welding Materials

Yi Nan Li; Z.L. Peng; J.C. Yan

doi:10.4028/www.scientific.net/MSF.697-698.409

Paper Titles

Process Parameter Optimization on Pneumatic Bulging for Abnormity Thin-Wall Pot
p.389

The Dissolution Mechanism of Copper Weld Brazing with Cu-Based Brazing Alloys
p.394

Effect of Weld Line Direction and Its Position on Drawing Performance of Tailor-Welded Blanks
p.399

Research on Stress Corrosion Behavior of AISI304 Stainless Steel Enhanced by Ultrasonic Peening Treatment
p.404

GTA Welding of Copper Thick Plates by Using ERCuTi Welding Materials
p.409

Conceptual Design for Upper Beam of Hydraulic Press
p.414

Study on the Maximum Forging Load and Final Face Width of Powder Spur Gear Forging
p.420

Study on Mapping of Forming Precision of Workpiece to Stiffness of Hydropress Frame
p.424

Research on the Propagation of the Crack Inclined across the Interface in the Cermet Cladding Part
p.430

HomeMaterials Science ForumMaterials Science Forum Vols. 697-698GTA Welding of Copper Thick Plates by Using ERCuTi...

GTA Welding of Copper Thick Plates by Using ERCuTi Welding Materials

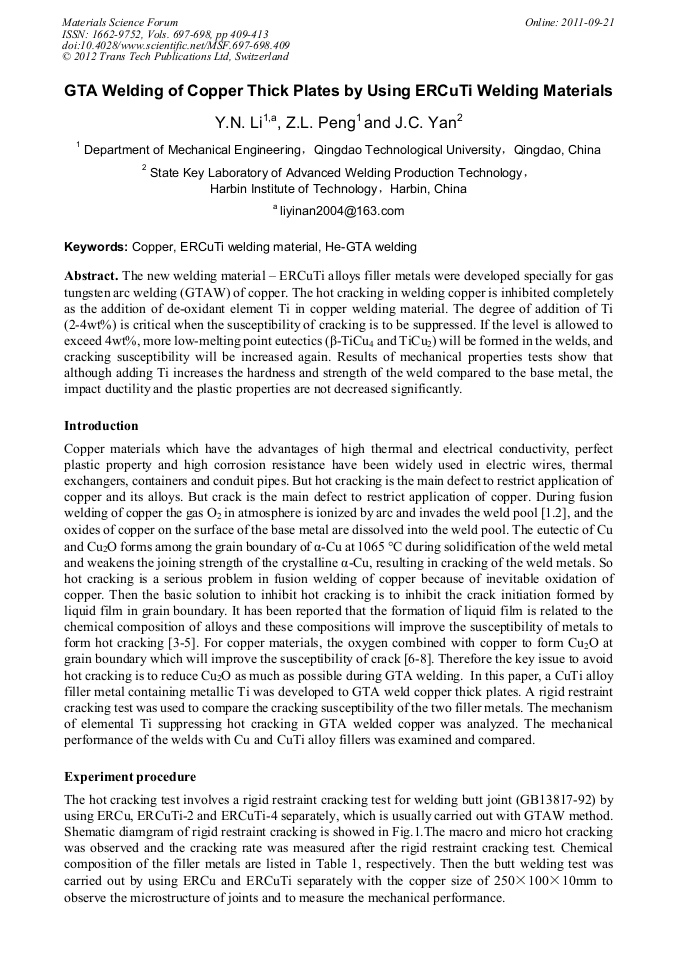

Abstract:

The new welding material – ERCuTi alloys filler metals were developed specially for gas tungsten arc welding (GTAW) of copper. The hot cracking in welding copper is inhibited completely as the addition of de-oxidant element Ti in copper welding material. The degree of addition of Ti (2-4wt%) is critical when the susceptibility of cracking is to be suppressed. If the level is allowed to exceed 4wt%, more low-melting point eutectics (β-TiCu₄ and TiCu₂) will be formed in the welds, and cracking susceptibility will be increased again. Results of mechanical properties tests show that although adding Ti increases the hardness and strength of the weld compared to the base metal, the impact ductility and the plastic properties are not decreased significantly.
