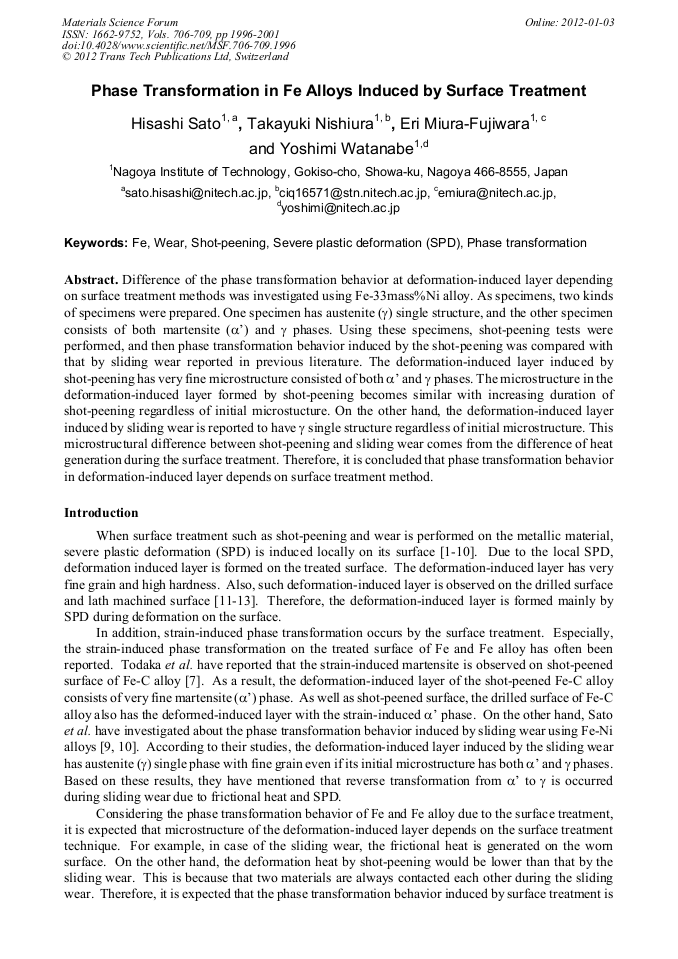

Phase Transformation in Fe Alloys Induced by Surface Treatment

Abstract:

Difference of the phase transformation behavior at deformation-induced layer depending on surface treatment methods was investigated using Fe-33mass%Ni alloy. As specimens, two kinds of specimens were prepared. One specimen has austenite (γ) single structure, and the other specimen consists of both martensite (α’) and γ phases. Using these specimens, shot-peening tests were performed, and then phase transformation behavior induced by the shot-peening was compared with that by sliding wear reported in previous literature. The deformation-induced layer induced by shot-peening has very fine microstructure consisted of both α’ and γ phases. The microstructure in the deformation-induced layer formed by shot-peening becomes similar with increasing duration of shot-peening regardless of initial microstucture. On the other hand, the deformation-induced layer induced by sliding wear is reported to have γ single structure regardless of initial microstructure. This microstructural difference between shot-peening and sliding wear comes from the difference of heat generation during the surface treatment. Therefore, it is concluded that phase transformation behavior in deformation-induced layer depends on surface treatment method.

• Periodical: Materials Science Forum (Volumes 706-709)
• Pages: 1996-2001
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.706-709.1996
• Online since: January 2012
• Authors: Hisashi Sato, Takayuki Nishiura, Eri Miura-Fujiwara, Yoshimi Watanabe
• Keywords: Fe, Phase Transformation, Severe Plastic Deformation (SPD), Shot-Peening, Wear

References

[1] S. B. Newcomb and W. M. Stobbs: Mater. Sci. Eng. Vol. 66 (1984), p.195.

[2] S. M. Kuo and D. A. Rigney: Mater. Sci. Eng. A Vol. 157 (1992), p.131.

[3] Y. Watanabe, N. Yamanaka and Y. Fukui: Metall. Mater. Trans. A Vol. 30A (1999), p.3253.

[4] Y. Watanabe, Y. Yokoyama and H. Hosoda: Mater. Sci. Forum Vols. 396-402 (2002), p.1467.

[5] J. Barry and G. Byrne: Mater. Sci. Eng. A Vol. 325 (2002), p.356.

[6] M. Umemoto, Y. Todaka and K. Tsuchiya: Mater. Trans. Vol. 44 (2003), p.1488.

[7] Y. Todaka, M. Umemoto, Y. Watanabe, A. Yamazaki, C. Wang and K. Tsuchiya: ISIJ Int. Vol. 47 (2007), p.157.

[8] H. Sato, T. Murase, T. Fujii, S. Onaka, Y. Watanabe and M. Kato: Acta Mater. Vol. 56 (2008), p.4549.

[9] H. Sato, Y. Kubota, E. Miura-Fujiwara and Y. Watanabe: Proceedings of the 2nd International Symposium on Steel Science (2009), p.249.

[10] H. Sato, Y. Kubota, E. Miura-Fujiwara and Y. Watanabe: Mater. Sci. Forum Vols. 654-656 (2010), p.1227.

[11] M. Field and J. F. Kahles: Ann. CIRP Vol. 20 (1971), p.153.

[12] D. M. Turley: Mater. Sci. Eng. Vol. 19 (1975), p.79.

[13] Y. Todaka, M. Umemoto, S. Tanaka and K. Tsuchiya: Mater. Trans. Vol. 45 (2004), p.2209.

[14] T. Maki, T. Hazama, S. Shimooka and I. Tamura: J. Soc. Mater. Sci. Japan Vol. 24 (1975), p.296.

[15] Y. Ivanisenko, I. MacLaren, X. Sauvage, R. Z. Valiev and H. –J. Fecht: Acta Mater. Vol. 54 (2006), p.1659.

DOI: 10.1016/j.actamat.2005.11.034

[16] J. G. Li, M. Umemoto, Y. Todaka, K. Fujisaku and K. Tsuchiya: Rev. Adv. Mater. Sci. Vol. 18 (2008), p.577.
