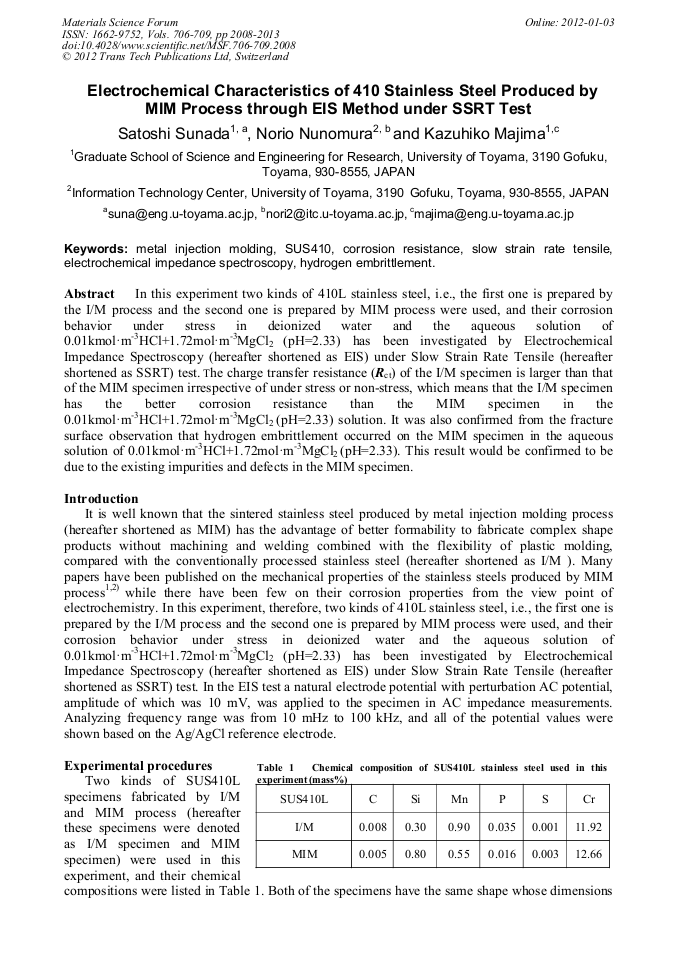

Electrochemical Characteristics of 410 Stainless Steel Produced by MIM Process through EIS Method under SSRT Test

Abstract:

In this experiment two kinds of 410L stainless steel, i.e., the first one is prepared by the I/M process and the second one is prepared by MIM process were used, and their corrosion behavior under stress in deionized water and the aqueous solution of 0.01kmol·m^-3HCl+1.72mol·m^-3MgCl₂ (pH=2.33) has been investigated by Electrochemical Impedance Spectroscopy (hereafter shortened as EIS) under Slow Strain Rate Tensile (hereafter shortened as SSRT) test. The charge transfer resistance (R_ct) of the I/M specimen is larger than that of the MIM specimen irrespective of under stress or non-stress, which means that the I/M specimen has the better corrosion resistance than the MIM specimen in the 0.01kmol·m^-3HCl+1.72mol·m^-3MgCl₂ (pH=2.33) solution. It was also confirmed from the fracture surface observation that hydrogen embrittlement occurred on the MIM specimen in the aqueous solution of 0.01kmol·m^-3HCl+1.72mol·m^-3MgCl₂ (pH=2.33). This result would be confirmed to be due to the existing impurities and defects in the MIM specimen.

• Periodical: Materials Science Forum (Volumes 706-709)
• Pages: 2008-2013
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.706-709.2008
• Online since: January 2012
• Authors: Satoshi Sunada, Norio Nunomura, Kazuhiko Majima
• Keywords: Corrosion Resistance, Electrochemical Impedance Spectroscopy (EIS), Hydrogen Embrittlement, Metal Injection Molding (MIM), Slow Strain Rate Tensile, SUS410

References

[1] M. Matsuda and H. Miura: Application of Heterogeneous Microstructure to Ultrahigh Strengthening Sintered Low Alloy Steels, Proceeding of 2000 Powder Metallurgy World Congress, (2000)20-23.

[2] H. Miura: Fabrication of High Performance Sintered Materials through PIM, Proceeding of 2000 Powder Metallurgy World Congress, (2000)315-319.

[3] M. L. Zheludkevich, R. Serra, M. F. Montemor, I.M. Miranda Salvado and M.G.S. Ferreira, Surface and Coatings Technology, 200(2006), 3084-3094.

DOI: 10.1016/j.surfcoat.2004.09.007

[4] Yin-Yu Chang and Da-Yung Wang, Surface and Coatings Technology, 200(2005), 2187-2191.

[5] S. Krakowiak, K. Darowicki and P. Slepski, Electrochimica Acta, 50(2005), 2699-270.

[6] K. Sugimoto and M. Yuki, J. Japan Inst. Metals, 46(1982), 1156-1163.

[7] S. Sunada, M. Kariba, K. Majima and K. Sugimoto: Materials Transactions, Vol. 47(2006), 364-370.
