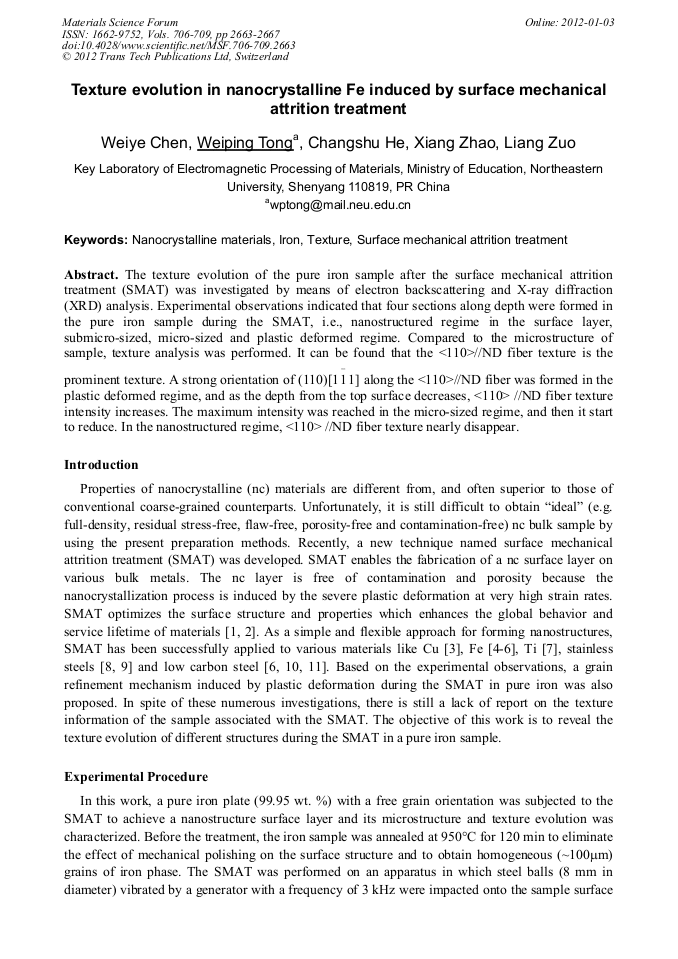

Texture Evolution in Nanocrystalline Fe Induced by Surface Mechanical Attrition Treatment

Abstract:

The texture evolution of the pure iron sample after the surface mechanical attrition treatment (SMAT) was investigated by means of electron backscattering and X-ray diffraction (XRD) analysis. Experimental observations indicated that four sections along depth were formed in the pure iron sample during the SMAT, i.e., nanostructured regime in the surface layer, submicro-sized, micro-sized and plastic deformed regime. Compared to the microstructure of sample, texture analysis was performed. It can be found that the <110>//ND fiber texture is the prominent texture. A strong orientation of (110)[11] along the <110>//ND fiber was formed in the plastic deformed regime, and as the depth from the top surface decreases, <110> //ND fiber texture intensity increases. The maximum intensity was reached in the micro-sized regime, and then it start to reduce. In the nanostructured regime, <110> //ND fiber texture nearly disappear.
