Development of Low Temperature Bonding Technique of Titanium and Zirconium Using Hydrogen Diffusion-Induced Phase Transformation

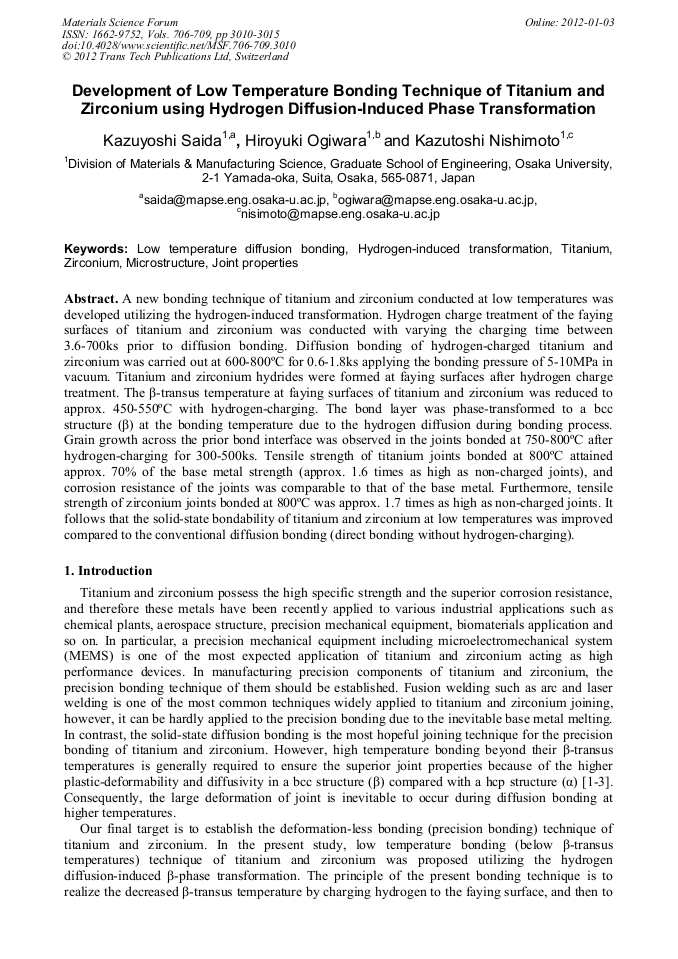

Abstract:

A new bonding technique of titanium and zirconium conducted at low temperatures was developed utilizing the hydrogen-induced transformation. Hydrogen charge treatment of the faying surfaces of titanium and zirconium was conducted with varying the charging time between 3.6-700ks prior to diffusion bonding. Diffusion bonding of hydrogen-charged titanium and zirconium was carried out at 600-800°C for 0.6-1.8ks applying the bonding pressure of 5-10MPa in vacuum. Titanium and zirconium hydrides were formed at faying surfaces after hydrogen charge treatment. The β-transus temperature at faying surfaces of titanium and zirconium was reduced to approx. 450-550°C with hydrogen-charging. The bond layer was phase transformed to a bcc structure (β) at the bonding temperature due to the hydrogen diffusion during bonding process. Grain growth across the prior bond interface was observed in the joints bonded at 750-800°C after hydrogen-charging for 300-500ks. Tensile strength of titanium joints bonded at 800°C attained approx. 70% of the base metal strength (approx. 1.6 times as high as non-charged joints), and corrosion resistance of the joints was comparable to that of the base metal. Furthermore, tensile strength of zirconium joints bonded at 800°C was approx. 1.7 times as high as non-charged joints. It follows that the solid-state bondability of titanium and zirconium at low temperatures was improved compared to the conventional diffusion bonding (direct bonding without hydrogen-charging).

• Periodical: Materials Science Forum (Volumes 706-709)
• Pages: 3010-3015
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.706-709.3010
• Online since: January 2012
• Authors: Kazuyoshi Saida, Hiroyuki Ogiwara, Kazutoshi Nishimoto
• Keywords: Hydrogen-Induced Transformation, Joint Properties, Low Temperature Diffusion Bonding, Microstructure, Titanium, Zirconium

References

[1] T. Enjo, K. Ikeuchi, N. Akigawa and T. Maruyama: Effects of α↔β Transformation on the Diffusion Welding of Titanium, J. High Temp. Soc., 6-2 (1980), pp.81-88.

[2] S. Kundu, M. Ghosh and S. Chatterjee: Diffusion Bonding of Commercially Pure Titanium and 17-4 Precipitation Hardening Stainless Steel, Mater. Sci. and Eng. A 428 (2006) p.18–23.

DOI: 10.1016/j.msea.2005.10.047

[3] A. Kanai, S. Seto and T. Wada: Diffusion Bonding of TiAl Intermetallic Compound to Ti-6Al-4V Alloy and Pure Titanium, Qurter. J. JWS, 22-4 (2004), pp.580-586 (in Japanese).

DOI: 10.2207/qjjws.22.580

[4] T. B. Massalski: Binary Alloy Phase Diagrams, ASM International (1990).
