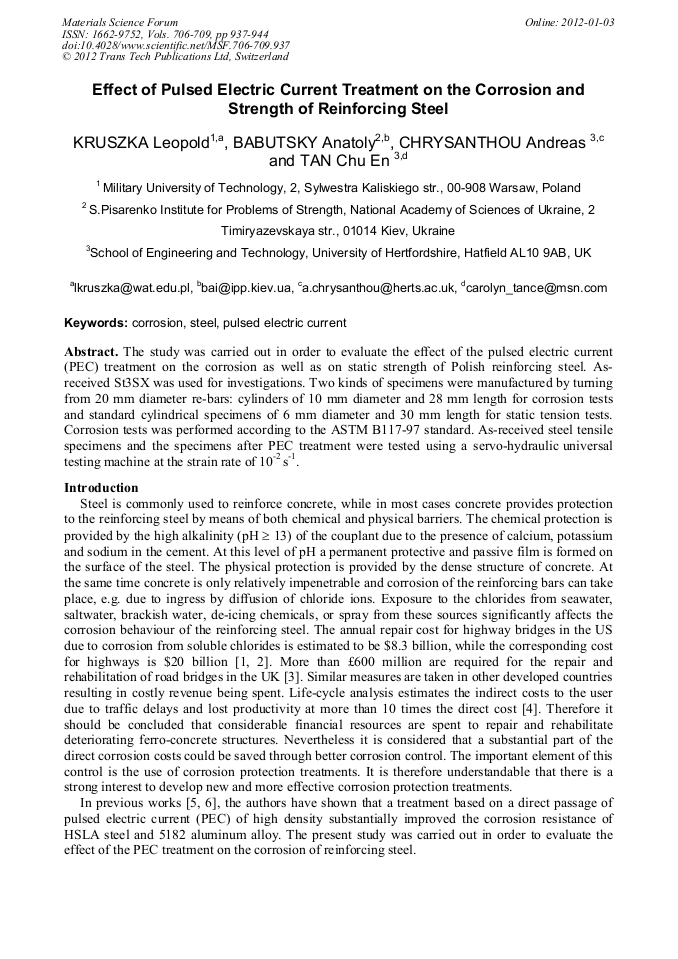

Effect of Pulsed Electric Current Treatment on the Corrosion and Strength of Reinforcing Steel

Abstract:

The study was carried out in order to evaluate the effect of the pulsed electric current (PEC) treatment on the corrosion as well as on static strength of Polish reinforcing steel. As-received St3SX was used for investigations. Two kinds of specimens were manufactured by turning from 20 mm diameter re-bars: cylinders of 10 mm diameter and 28 mm length for corrosion tests and standard cylindrical specimens of 6 mm diameter and 30 mm length for static tension tests. Corrosion tests was performed according to the ASTM B117-97 standard. As-received steel tensile specimens and the specimens after PEC treatment were tested using a servo-hydraulic universal testing machine at the strain rate of 10^-2 s^-1.

• Periodical: Materials Science Forum (Volumes 706-709)
• Pages: 937-944
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.706-709.937
• Online since: January 2012
• Authors: Leopold Kruszka, Anatoli Babutsky, Andreas Chrysanthou, Chu En Tan
• Keywords: Corrosion, Pulsed Electric Current, Steel

References

[1] G. C. Koch, M. P. Brongers, M. P. Thompson, Y. P. Virmani, J. H. Payer: Corrosion Costs and Preventive Strategies in the United States (Report No. FHWA-RD, Federal Highway Administration, Washington, DC, 2002).

[2] G. G. Clementa: Testing of Selected Metallic Reinforcing Bars for Extending the Service Life of Future Concrete Bridges (Final Report VTRC 03-R7, Virginia Transportation Research Council, Charlottesville, VA, 2002).

[3] E. J. Wallbank: The Performance of Concrete in Bridges (HMSO, London, 1989).

[4] Ch. Alk. Apostolopoulos, D. Michalopoulos: J. Mater. Eng. Perform. Vol. 15 (6) December 2006, p.742.

[5] A. I. Babutsky, A. Chrysanthou, J. Ioannou: Strength of Materials Vol. 41 (2009), p.387.

[6] A. Babutsky, A. Chrysanthou, J. Ioannou, in: Fundamental Aspects of External Fields Action on Materials, edited by V. Gromov, Novokuznetsk Polygraphic Center, (2010), p.613.

[7] Yu. V. Baranov, O. V. Troitskii, Yu. S. Avraamov, and A. D. Shlyapin, Physical Grounds of Electric Pulse and Electric Current/Plastic Treatments and New Materials (MGIU, Moscow, 2001).

[8] G. Li, Y. Sun, W.D. Fei: Materials Letters Vol. 57 (2003), p.3217.

[9] V.V. Levitin, S.V. Loskutov: Solid State Communications Vol. 131 (2004), p.181.

[10] V.L. Volodin, V.D. Thai, Yu.D. Kon'kov, V.V. Gaiduk, T.V. Volodin, in: Proceedings of Institutes of Higher Education: Ferrous Metallurgy, No. 6 (2002), p.17.

[11] B. Fang, J. Wang, S. Xiao, E. -H. Han, Z. Zhu, W. Ke: J. Mater. Sc. Vol. 40 (2005), p.6545.

[12] N.P. Zhuk: Course on corrosion and protection of metals (Metallurgiya, Moscow 1968).

[13] O.N. Romaniv, G.N. Nikiforchin: Mechanics of Corrosion Destruction of Structural Alloys (Metallurgiya, Moscow 1986).

[14] V. Yu. Vasil'ev, T. K. Sergeeva, Yu. V. Baldokhin, E. S. Ivanov, V. V. Novosadov, and V. Ya. Bayankin: Protection of Metals, Vol. 38 (2002), p.166.

DOI: 10.1023/a:1014973317755

[15] G. van Boven, W. Chen, R. Rogge: Acta Materialia Vol. 55 (2007), p.29.

[16] R. Oltra, V. Vignal: Corrosion Science Vol. 49 (2007), p.158.

[17] C. Richard Liu, Xiaoping Yang: Machining Science and Technology, Vol. 5 (2001), p.1.

[18] B. E. Klamecki: Journal of Materials Processing Technology Vol. 141 (2003), p.385.

[19] A. L. Lu, F. Tang, X. J. Luo et al.: J. Mater. Process. Technol. Vol. 74 (1998), p.259.

[20] G.V. Stepanov, A.I. Babutsky, I.A. Mameyev, et al.: Strength of Materials Vol. 40 (2008), p.452.

[21] H. Conrad: Materials Science and Engineering A Vol. 287 (2000), p.227.

[22] S. Wu, H. Zhao, A. Lu, et al.: Journal of Materials Processing Technology Vol. 132 (2003), p.198.

[23] A. A. Lebedev, N. R. Muzyka, N. L. Volchek: Strength of Materials Vol. 34 (2002), p.312.

[24] A.A. Lebedev, N. R. Muzyka, N. L. Volchek et al.: Strength of Materials Vol. 35 (2003), p.122.

[25] J. Frankel, A. Abbate, W. Scholz: Journal of Experimental Mechanics Vol. 33 (1993). p.164.
