Intergranular Cracking in Alloy 690 with Nb, Mo, and Hf Additions: In Situ SEM High Temperature Deformation Study

Article Preview

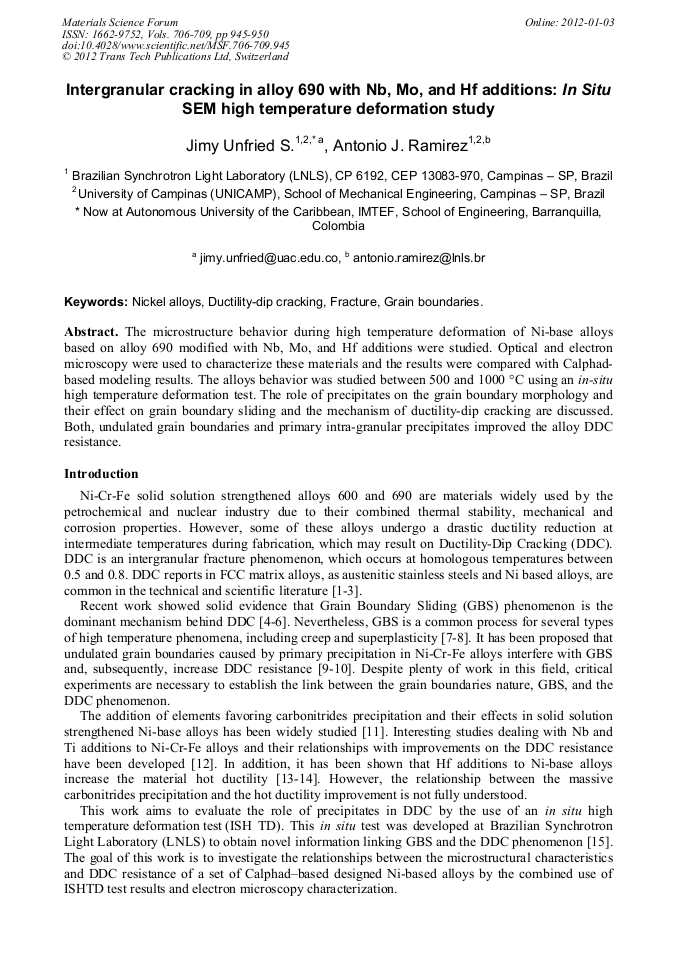

Abstract:

The microstructure behavior during high temperature deformation of Ni-base alloys based on alloy 690 modified with Nb, Mo, and Hf additions were studied. Optical and electron microscopy were used to characterize these materials and the results were compared with Calphad-based modeling results. The alloys behavior was studied between 500 and 1000 °C using an in-situ high temperature deformation test. The role of precipitates on the grain boundary morphology and their effect on grain boundary sliding and the mechanism of ductility-dip cracking are discussed. Both, undulated grain boundaries and primary intra-granular precipitates improved the alloy DDC resistance.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 706-709)

Pages:

945-950

Citation:

Online since:

January 2012

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] M.A. Arkoosh and N.F. Fiore: Metallurgical transactions, Vol. 3 (1972), p.2235.

Google Scholar

[2] F.N. Rhines and P.J. Wray: Transactions of the ASM, 54, (1961) p.117.

Google Scholar

[3] D.M. Haddrill and R.G. Baker: British welding journal, (1965) p.411.

Google Scholar

[4] F.F. Noecker II and J.N. DuPont: Welding Journal, Vol. 88, (2009) p. 7s.

Google Scholar

[5] N.E. Nissley and J.C. Lippold: Welding journal, Vol. 88, (2009) p. 131s.

Google Scholar

[6] A.J. Ramirez, J.C. Lippold: Mat. Sci. and Eng. A 380, (2004) p.259.

Google Scholar

[7] R.C. Gifkins: Materials characterization 32, (1994) p.59.

Google Scholar

[8] T.G. Langdon: Materials science 41, (2006) p.597.

Google Scholar

[9] A.J. Ramirez and J.C. Lippold, in: Hot Cracking Phenomena in welds, edited by T. Böllinghaus, H. Herold. (2005) p.19.

DOI: 10.1007/b139103

Google Scholar

[10] M.G. Collins, A.J. Ramirez, J.C. Lippold: Welding Journal 83, (2004) p. 39s.

Google Scholar

[11] S. Yamaguchi, Et al.: Phil. Trans. R. Soc. Lond. A, 295, (1980) p.122.

Google Scholar

[12] A.J. Ramirez, C.M. Garzón, in: Hot Cracking Phenomena in welds II, edited by T. Böllinghaus, H. Herold, C. Cross, J.C. Lippold, (2008) p.427.

DOI: 10.1007/978-3-540-78628-3

Google Scholar

[13] L.N. Zimina, N.N. Burova, O.V. Makushok: Met. Sci. and heat treatment, 28(2), (1986) p.130.

Google Scholar

[14] J.M. Duhl, C.P. Sullivan: Journal of metals, (1971) pp.38-40.

Google Scholar

[15] E.A. Torres, F.G. Paternella, R. Caram, A.J. Ramirez, , In: 8th international conference on trends in welding research, Pine-Mountain, GA-USA, (2009) p.354.

Google Scholar

[16] J. Unfried S., Et Al., In: Mathematical Modelling of Weld Phenomena 9, edited by Maney. H Cerjak; H K D H Bhadeshia and E Kozeschnik, (2010) p.983.

Google Scholar

[17] G.D. Pigrova: Metal science and heat treatment, 47, 11-12, (2005) p.544.

Google Scholar

[18] E.A. Torres, R. Caram, A.J. Ramirez: Materials science forum, 638-642, (2010) p.2858.

Google Scholar

[19] J. Unfried S., E. A. Torres, A. J. Ramirez, In: Hot Cracking Phenomena in Welds III, edited by T. Böllinghaus, H. Herold, C. Cross, (2011) in press.

Google Scholar

[20] C.R.M. Afonso, J.C. Lippold, A.J. Ramirez: submitted to Metallurgical transactions A (2010).

Google Scholar
