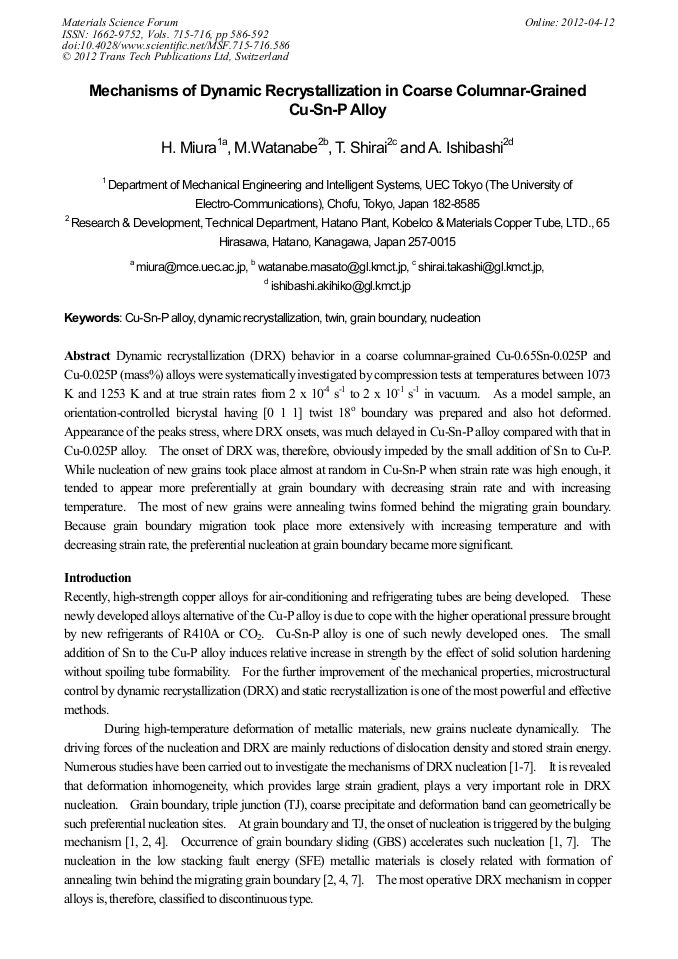

Mechanisms of Dynamic Recrystallization in Coarse Columnar-Grained Cu-Sn-P Alloy

Abstract:

Dynamic recrystallization (DRX) behavior in a coarse columnar-grained Cu-0.65Sn-0.025P and Cu-0.025P (mass%) alloys were systematically investigated by compression tests at temperatures between 1073 K and 1253 K and at true strain rates from 2 x 10^-4 s^-1 to 2 x 10^-1 s^-1 in vacuum. As a model sample, an orientation-controlled bicrystal having [0 1 twist 18^o boundary was prepared and also hot deformed. Appearance of the peaks stress, where DRX onsets, was much delayed in Cu-Sn-P alloy compared with that in Cu-0.025P alloy. The onset of DRX was, therefore, obviously impeded by the small addition of Sn to Cu-P. While nucleation of new grains took place almost at random in Cu-Sn-P when strain rate was high enough, it tended to appear more preferentially at grain boundary with decreasing strain rate and with increasing temperature. The most of new grains were annealing twins formed behind the migrating grain boundary. Because grain boundary migration took place more extensively with increasing temperature and with decreasing strain rate, the preferential nucleation at grain boundary became more significant.

• Periodical: Materials Science Forum (Volumes 715-716)
• Pages: 586-592
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.715-716.586
• Online since: April 2012
• Authors: Hiromi Miura, Masato Watanabe, Takashi Shirai, Akihiko Ishibashi
• Keywords: Cu-Sn-P Alloy, Dynamic Recrystallization (DRX), Grain Boundary, Nucleation, Twin

References

[1] H. Miura, H. Aoyama and T. Sakai: J. Japan Inst. Metals Vol. 58 (1994), p.267.

[2] H. Miura，T. Sakai，R. Mogawa and J.J. Jonas: Philo. Mag. Vol. 87 (2007), p.4197.

[3] L. Blaz, T. Sakai and J.J. Jonas: Metal Sci. Vol. 17 (1983), p.609.

[4] S. Mahajan, C. S. Pande, M. A. Imam and B. B. Rath: Acta mater. Vol. 45 (1997), p.2633.

[5] G. Gottstein, D. Zabardjadi and H. Mecking: Metal Sci., Vol. 13 (1979), p.223.

[6] E.I. Poliak and J.J. Jonas: ISIJ Int. Vol. 43 (2003), p.684.

[7] H. Miura, T. Sakai, S. Andiarwanto and J.J. Jonas: Philo. Mag. Vol. 85 (2005), p.2653.

[8] M. Winning, G. Gottstein and L.S. Shvindlerman: Acta Mater. Vol. 49 (2001), p.211.

[9] B. Bayle, Ph. Bocher, J.J. Jonas and F. Montheillet: Mater. Sci. Tech. Vol. 15 (1999), p.803.

[10] R.T. McDonald, F.J. Humphreys, P.S. Bate and I. Brough: Mater. Sci. Forum Vols. 558-559 (2007), p.449.

[11] F.J. Humphreys and M. Hatherly: Recrystallization and Related Annealing Phenomena (Pergamon Press, 1995), p.235.

[12] P. J. Wilbrandt and P. Z. Haasen: Metallkd. Vol. 71 (1980), p.273.
