Preparation and Mechanism of Nano-TiO2 Coatings on Poly(p-phenylene-benzobisoxazole) (PBO) Fiber

Yan Yan Luan; Xue Feng Liu; Zhan Nan Peng; Jian Xin Xie

doi:10.4028/www.scientific.net/MSF.724.274

Paper Titles

Research of Assembled Monolithic Compound Spiral Reinforced Concrete Column Encased by Steel Plate Hoop and Jointed by Bolts
p.255

Low-Temperature and Rapid Fabrication of Bulk Nano-TiO₂ Ceramic
p.261

Study on Preparation of Nano-SiC Fibers by Template Method Based on Waste Cotton Linter
p.265

Shot Peening Characteristics of Cold-Rolled Mo Sheet
p.269

Preparation and Mechanism of Nano-TiO₂ Coatings on Poly(p-phenylene-benzobisoxazole) (PBO) Fiber
p.274

Effect of TiC Content on the Microstructure and Mechanical Properties of Ti₃AlC₂/Al₂O₃ In Situ Composites Synthesized by Hot Pressing
p.278

Effects of Sintering Conditions and Additives on Translucent Silicon Nitride Ceramics
p.282

The Dynamic Recrystallization of Hot-Deformed Austenite in a Micro-Alloyed Steel
p.287

Effect of Electromagnetic Stirring on the Microstructure and Mechanical Properties of the High Speed Steel
p.291

HomeMaterials Science ForumMaterials Science Forum Vol. 724Preparation and Mechanism of Nano-TiO2 Coatings on...

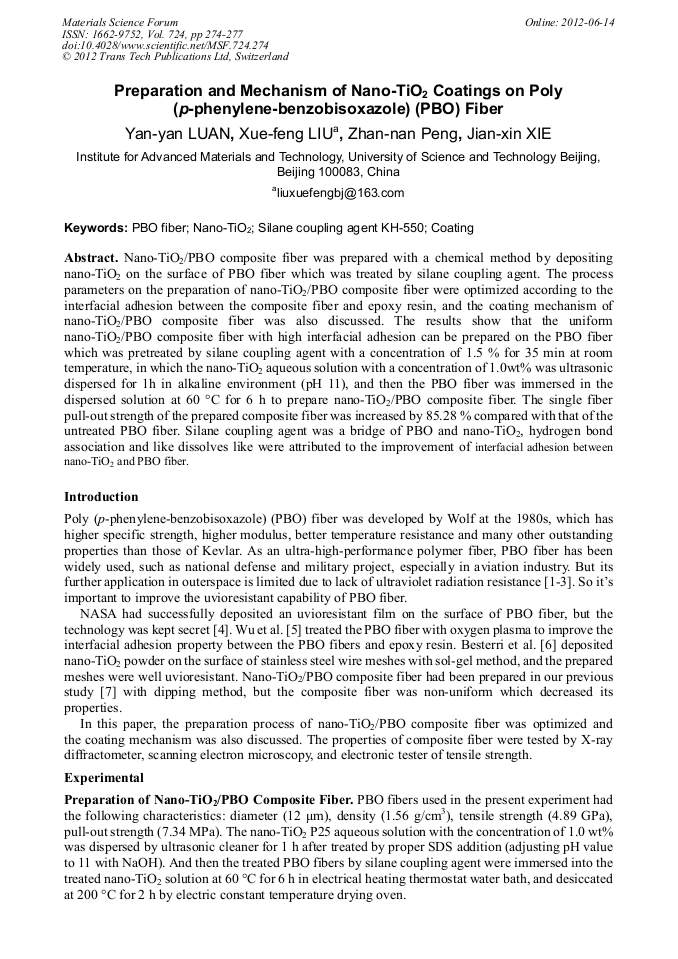

Preparation and Mechanism of Nano-TiO₂ Coatings on Poly(p-phenylene-benzobisoxazole) (PBO) Fiber

Abstract:

nanoTiO₂/PBO composite fiber was prepared with a chemical method by depositing nanoTiO₂ on the surface of PBO fiber which was treated by silane coupling agent. The process parameters on the preparation of nanoTiO₂/PBO composite fiber were optimized according to the interfacial adhesion between the composite fiber and epoxy resin, and the coating mechanism of nanoTiO₂/PBO composite fiber was also discussed. The results show that the uniform nanoTiO₂/PBO composite fiber with high interfacial adhesion can be prepared on the PBO fiber which was pretreated by silane coupling agent with a concentration of 1.5 % for 35 min at room temperature, in which the nanoTiO₂ aqueous solution with a concentration of 1.0wt% was ultrasonic dispersed for 1h in alkaline environment (pH 11), and then the PBO fiber was immersed in the dispersed solution at 60 °C for 6 h to prepare nanoTiO₂/PBO composite fiber. The single fiber pull-out strength of the prepared composite fiber was increased by 85.28 % compared with that of the untreated PBO fiber. Silane coupling agent was a bridge of PBO and nanoTiO₂, hydrogen bond association and like dissolves like were attributed to the improvement of interfacial adhesion between nanoTiO₂ and PBO fiber.

You might also be interested in these eBooks

Eco-Materials Processing and Design XIII

View Preview

Info:

Periodical:

Materials Science Forum (Volume 724)

Pages:

274-277

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.724.274

Citation:

Cite this paper

Online since:

June 2012

Authors:

Yan Yan Luan, Xue Feng Liu, Zhan Nan Peng, Jian Xin Xie

Keywords:

Coating, Nano-TiO₂, PBO Fiber, Silane Coupling Agent KH-550

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. J. Krause: Polymer Vol. 29 (1988), p.1354.

Google Scholar

[2] O. Evelyne and D. Rajib: NASA Tech. Briefs. (USA) Vol. 24 (2000), p.54.

Google Scholar

[3] G. M. Wu: Hi-Tech Fiber & Application Vol. 27 (2002), p.15.

Google Scholar

[4] J. W. Lee, D. L. Hart, E. T. Shinn, A. J. Cooley, E. L. White, P. W. MacDowell, E. Schomburg, G. A. Slenski, A. N. Watkins and R. L. Yang: MRS Symp. Proc. Vol. 851 (2005), p.177.

DOI: 10.1557/proc-851-nn5.3

Google Scholar

[5] G. M. Wu, Y. T. Shyng, S. F. Kung and C. F. Wu: Vacuum Vol. 83 (2009), p. S271.

Google Scholar

[6] M. Besterri, D. Sacco, M.F. Brunella, S. Franz, R. Amadelli and L. Samiolo: Mater. Chem. Phys. Vol. 124 (2010), p.1225.

Google Scholar

[7] S. J. Sui: The Preparation Procedure Foundation of Composite Fiber of PBO Coated by Pure Copper (University of Science and Technology Beijing, Beijing 2007).

Google Scholar

[8] S. L. Zheng: Powder Surface Modification (China Building Material Industry Publishing House, China 2003).

Google Scholar
