Thermoelectric Properties of Solid-State Synthesized Magnesium Silicides Doped with Group BI-III Elements

Sin Wook You; Soon Mok Choi; Won Seon Seo; Sun Uk Kim; Kyung Wook Jang; Jung Il Lee; Soon Chul Ur; Il Ho Kim

doi:10.4028/www.scientific.net/MSF.724.385

Paper Titles

The Effect of Porosity of CBN Grinding Tools on Grinding Properties
p.363

Modified Distillers' Grains by Microwave-Assisted Hydrolysis for Cu²⁺ Adsorption from Aqueous Solution
p.369

Synthesis of Glycerol Carbonate from Biomass Glycerol: Focus on the Calcination Temperature
p.374

Preparation and Microstructure of Biomorphic Hydroxyapatite Using Extracted Beech Wood Template
p.378

Thermoelectric Properties of Solid-State Synthesized Magnesium Silicides Doped with Group B^I-III Elements
p.385

Influence of Composition of Gd-Doped Ceria Electrolyte on Performance of Solid Oxide Fuel Cell
p.389

Fabrication of Novel Ag-Paste and Evaluation of its Electrical Properties in Bulk-Si Solar Cell
p.393

Dye Sensitized Solar Cells Based on ZnO Nanorod/TiO₂ Nanoparticle Composite Films
p.397

A Study on Fabrication, Dispersion and Surface Coating of Nanocarbon for MgO-C Refractories
p.404

HomeMaterials Science ForumMaterials Science Forum Vol. 724Thermoelectric Properties of Solid-State...

Thermoelectric Properties of Solid-State Synthesized Magnesium Silicides Doped with Group B^I-III Elements

Abstract:

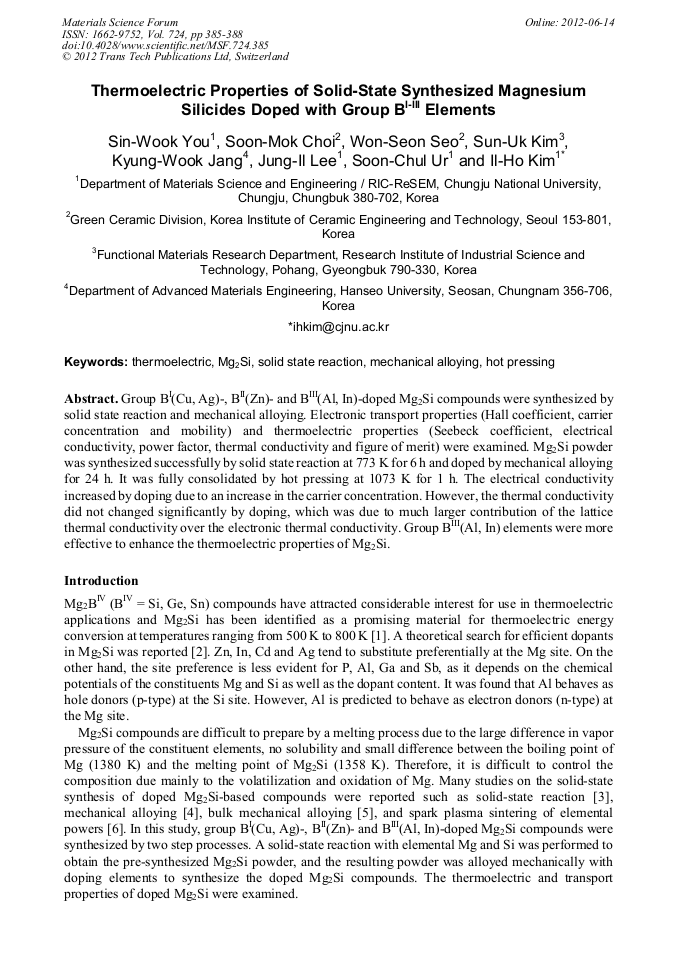

Group B^I(Cu, Ag)-, B^II(Zn)- and B^III(Al, In)-doped Mg₂Si compounds were synthesized by solid state reaction and mechanical alloying. Electronic transport properties (Hall coefficient, carrier concentration and mobility) and thermoelectric properties (Seebeck coefficient, electrical conductivity, power factor, thermal conductivity and figure of merit) were examined. Mg₂Si powder was synthesized successfully by solid state reaction at 773 K for 6 h and doped by mechanical alloying for 24 h. It was fully consolidated by hot pressing at 1073 K for 1 h. The electrical conductivity increased by doping due to an increase in the carrier concentration. However, the thermal conductivity did not changed significantly by doping, which was due to much larger contribution of the lattice thermal conductivity over the electronic thermal conductivity. Group B^III(Al, In) elements were more effective to enhance the thermoelectric properties of Mg₂Si.
