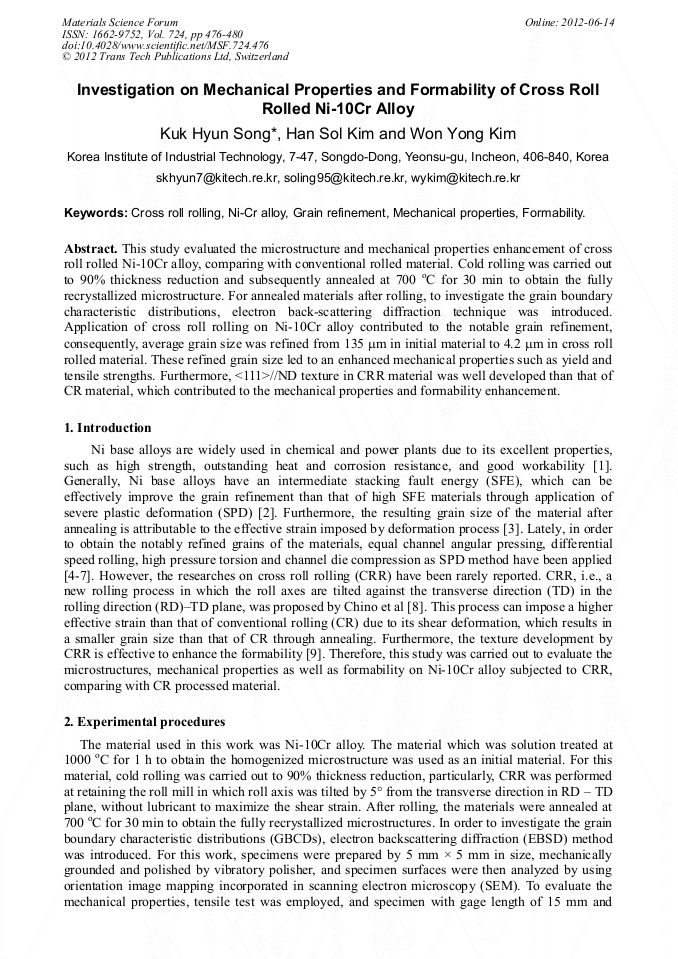

Investigation on Mechanical Properties and Formability of Cross Roll Rolled Ni-10Cr Alloy

Abstract:

This study evaluated the microstructure and mechanical properties enhancement of cross roll rolled Ni-10Cr alloy, comparing with conventional rolled material. Cold rolling was carried out to 90% thickness reduction and subsequently annealed at 700 °C for 30 min to obtain the fully recrystallized microstructure. For annealed materials after rolling, to investigate the grain boundary characteristic distributions, electron back-scattering diffraction technique was introduced. Application of cross roll rolling on Ni-10Cr alloy contributed to the notable grain refinement, consequently, average grain size was refined from 135 μm in initial material to 4.2 μm in cross roll rolled material. These refined grain size led to an enhanced mechanical properties such as yield and tensile strengths. Furthermore, <111>//ND texture in CRR material was well developed than that of CR material, which contributed to the mechanical properties and formability enhancement.

You might also be interested in these eBooks

Eco-Materials Processing and Design XIII

View Preview

Info:

Periodical:

Materials Science Forum (Volume 724)

Pages:

476-480

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.724.476

Citation:

Cite this paper

Online since:

June 2012

Authors:

Kuk Hyun Song, Han Sol Kim, Won Yong Kim

Keywords:

Cross Roll Rolling, Formability, Grain Refinement, Mechanical Property, Ni-Cr Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G.S. Was: Corro. Vol. 46 (1990), pp.319-330.

Google Scholar

[2] K. Neishi, Z. Horita and T.G. Langdon: Mater. Sci. Eng. A Vol. 325 (2002), pp.54-58.

Google Scholar

[3] Y. Chino, K. Sassa, A. Kamiya and M. Mabuchi: Mater. Sci. Eng. A Vol. 473 (2007), pp.195-200.

Google Scholar

[4] W.J. Kim, C.S. Chung, D.S. Ma, S.I. Hong and H.K. Kim: Scripta Mater. Vol. 49 (2003), pp.333-338.

Google Scholar

[5] J.B. Lee, T.J. Konno and H.G. Jeong: Mater. Sci. Eng. B Vol. 161 (2009), pp.166-169.

Google Scholar

[6] T. Hebesberger, H.P. Stüwe, A. Vorhauer, F. Wetscher and R. Pippan: Acta Mater. Vol. 53 (2005), pp.393-402.

DOI: 10.1016/j.actamat.2004.09.043

Google Scholar

[7] S.H. Ahn, Y.B. Chun, S.H. Yu, K.H. Kim and S.K. Hwang: Mater. Sci. Eng. A Vol. 528 (2010), pp.165-171.

Google Scholar

[8] Y. Chino, K. Sassa, A. Kamiya and M. Mabuchi: Mater. Sci. Eng. A Vol. 441 (2006), pp.349-356.

Google Scholar

[9] D.G. Kim, H.T. Son, D.W. Kim, Y.H. Kim and K. M Lee: J. Alloys Compd. Vol. 509 (2011), pp.9413-9418.

Google Scholar

[10] K.H. Song, H.S. Kim and W.Y. Kim: Mater. Trans. Vol. 52 (2011), pp.1070-1073.

Google Scholar
