Morphological Characterization of UNCD on Etched <100> Silicon

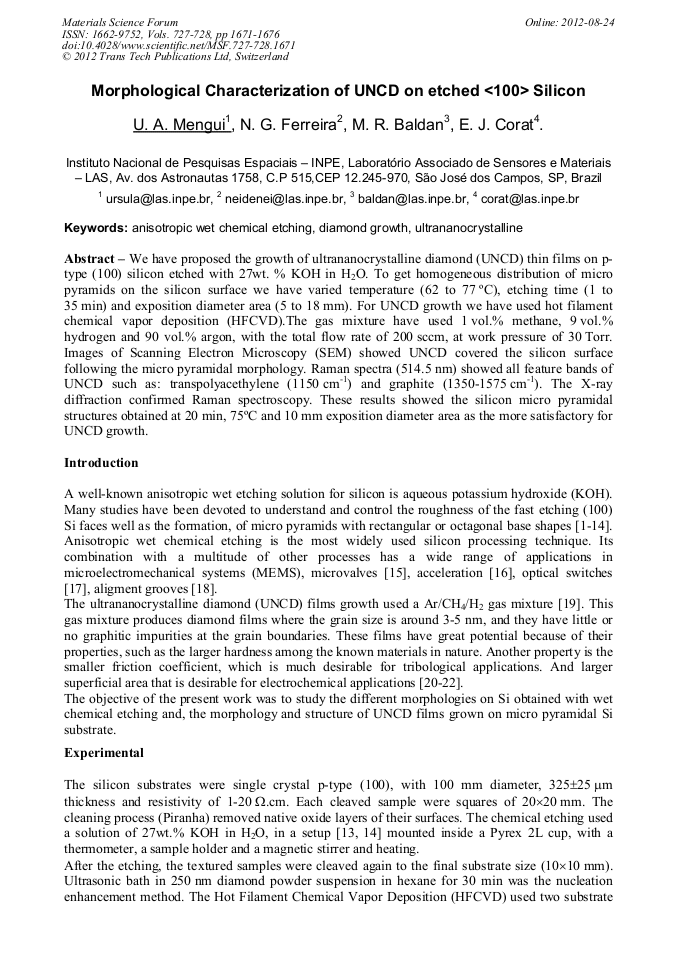

Article Preview

Abstract:

We have proposed the growth of ultrananocrystalline diamond (UNCD) thin films on p-type (100) silicon etched with 27wt. % KOH in H2O. To get homogeneous distribution of micro pyramids on the silicon surface we have varied temperature (62 to 77 °C), etching time (1 to 35 min) and exposition diameter area (5 to 18 mm). For UNCD growth we have used hot filament chemical vapor deposition (HFCVD).The gas mixture have used 1 vol.% methane, 9 vol.% hydrogen and 90 vol.% argon, with the total flow rate of 200 sccm, at work pressure of 30 Torr. Images of Scanning Electron Microscopy (SEM) showed UNCD covered the silicon surface following the micro pyramidal morphology. Raman spectra (514.5 nm) showed all feature bands of UNCD such as: transpolyacethylene (1150 cm-1) and graphite (1350-1575 cm-1). The X-ray diffraction confirmed Raman spectroscopy. These results showed the silicon micro pyramidal structures obtained at 20 min, 75°C and 10 mm exposition diameter area as the more satisfactory for UNCD growth.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 727-728)

Pages:

1671-1676

Citation:

Online since:

August 2012

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] K. L. Soh, W.P. Kang, J.L. Davidson, Y.M. Wong, A. Wisitsora-at, G. Swain, D.E. Cliffel, Sensors and Actuators B. 91, 3 (2003).

DOI: 10.1016/s0925-4005(03)00064-9

Google Scholar

[2] E. Van Veenendaal, K. Sato, M. Shikida, J. van Suchtelen, Sensors and Actuators A. 93, 219, (2001).

DOI: 10.1016/s0924-4247(01)00655-0

Google Scholar

[3] H. Schröder, E. Obermeier, A. Steckenborn, J. Micromech. Microeng. 9, 139 (1999).

Google Scholar

[4] D. L. Kendall, Ann. Rev. Mater. Sci. 9, 373 (1979).

Google Scholar

[5] H. Deidel, L. Csepregi, A. Heuberger, H. Baumgärtel, J. Electrochem. Soc. 137, 3626 (1990).

Google Scholar

[6] L. M. Landesberger, S. Naseh, M. Kahriz i, M. Paranjape, J. Microelectromech. Syst. 5, 106 (1996).

Google Scholar

[7] H. Schröder, E. Obermeier, A. Steckenborn, J. Micromech. Microenh. 9, 139 (1999).

Google Scholar

[8] E. van Veenendaal, K. Sato, M. Shikida, J. van Suchtelen, Sensors and Actuators. 93, 219 (2001).

DOI: 10.1016/s0924-4247(01)00655-0

Google Scholar

[9] J. G. R. Poço, H. Furlan, R. Giudiei, J. Phys. Chem. B. 106, 4873 (2002).

Google Scholar

[10] M. A. Gosálvez e R. M. Niemienen, New Journal of Physics. 5, 100. 1 (2003).

Google Scholar

[11] F. P. Honorato, D. W. L. Monteiro, J. R. T. Branco, P&D Cemig/ANEEL-Cetec. MTFV P&D12.

Google Scholar

[12] I. A. Shah, B. M. A. Benjamin, van der Wolf, J. P. van Enckevort, E. Vlieg, J. Crystal Growth. 311, 1371 (2009).

DOI: 10.1016/j.jcrysgro.2008.12.021

Google Scholar

[13] H. Furlan, Proposta de implementação de membranas em sensores de pressão e elementos piezoresistivos utilizando a técnica de pós processamento,. 71. Dissertação de Mestrado. Escola Politécnica da Universidade de São Paulo.

DOI: 10.29381/0103-8559/2023330189-101

Google Scholar

[14] E. K. França, Corrosão de silício (100) em KOH assistida por ultra-som e desenvolvimento do processo de oxidação de silício,. 125. Dissertação de Mestrado. Instituto Tecnológico de Aeronáutica.

DOI: 10.11606/t.3.1998.tde-14062022-092819

Google Scholar

[15] H. J. Cho, K. W. Oh, C. H. Ahn, Boolchand. P, Nam T. C. IEEE Trans. Magn. 37, 2749 (2001).

Google Scholar

[16] J. D. Johnson, S. R. Zarabadi, J. C. Christenson, Noll T. A, SAE Technical Papers. 1, 1080 (2002).

Google Scholar

[17] M. Hoffmann,. P. Kopka,. T. Gross,. E. J. Voges, Micromech. Microeng. 9, 151 (1999).

Google Scholar

[18] S-S. Tan, M. L. Reed, H. Han, Boudreau. R, J. Microelectromech. Syst. 5, 66 (1996).

Google Scholar

[19] O. Auciello; A. V. Sumant, Diamond Relat. Mater. 19, 699 (2010).

Google Scholar

[20] O. A . Williams, Semicond. Sci. Technol. 21, R49 (2006).

Google Scholar

[21] D. C. Barbosa, P. R. P. Barreto, V. W. Ribas, V. J. Trava-Airoldi, E. J. Corat, Encyclopedia of Nanoscience and Nanotechnology. 13, 59 (2011).

Google Scholar

[21] D. C. Barbosa, A. F. Almeida, R. F. Silva, N. G. Ferreira, V. J. Trava-Airoldi, E. J. Corat, Diamond. Relat. Mater. 18, 1283 (2009).

DOI: 10.1016/j.diamond.2009.05.002

Google Scholar

[22] S. C. Ramos, A. F. Azevedo, M. R. Baldan, N.G. Ferreira, J. Cac. Sci. Technol. 28, 27 (2010).

Google Scholar
