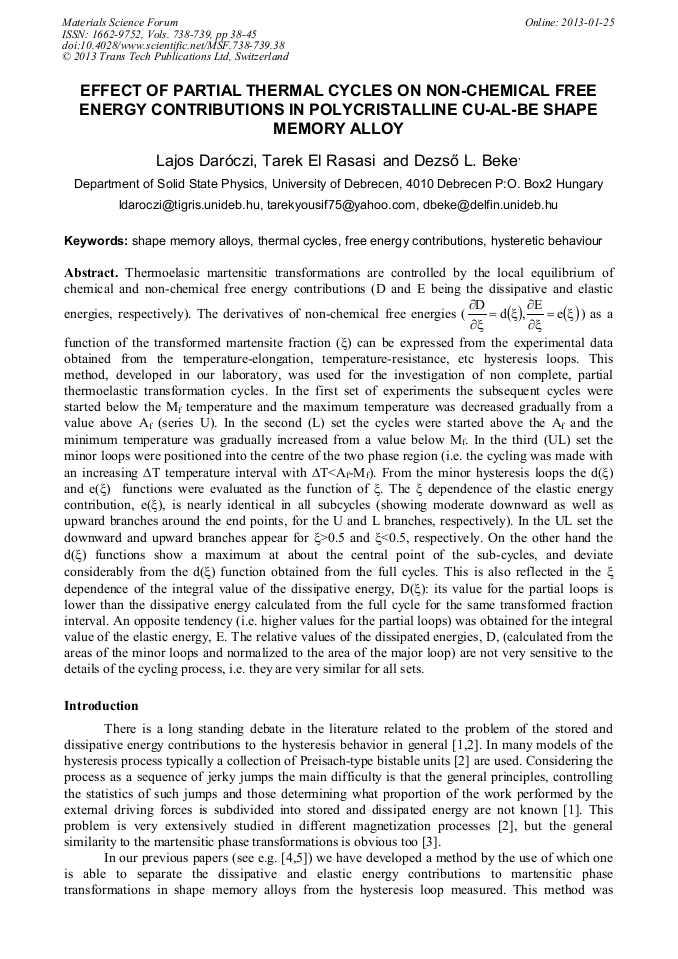

Effect of Partial Thermal Cycles on Non-Chemical Free Energy Contributions in Polycrystalline Cu-Al-Be Shape Memory Alloy

Abstract:

Abstract. Thermoelasic martensitic transformations are controlled by the local equilibrium of chemical and non-chemical free energy contributions (D and E being the dissipative and elastic energies, respectively). The derivatives of non-chemical free energies ( ) as a function of the transformed martensite fraction (ξ) can be expressed from the experimental data obtained from the temperature-elongation, temperature-resistance, etc hysteresis loops. This method, developed in our laboratory, was used for the investigation of non complete, partial thermoelastic transformation cycles. In the first set of experiments the subsequent cycles were started below the Mf temperature and the maximum temperature was decreased gradually from a value above Af (series U). In the second (L) set the cycles were started above the Af and the minimum temperature was gradually increased from a value below Mf. In the third (UL) set the minor loops were positioned into the centre of the two phase region (i.e. the cycling was made with an increasing T temperature interval with T0.5 and <0.5, respectively. On the other hand the d() functions show a maximum at about the central point of the sub-cycles, and deviate considerably from the d() function obtained from the full cycles. This is also reflected in the  dependence of the integral value of the dissipative energy, D(): its value for the partial loops is lower than the dissipative energy calculated from the full cycle for the same transformed fraction interval. An opposite tendency (i.e. higher values for the partial loops) was obtained for the integral value of the elastic energy, E. The relative values of the dissipated energies, D, (calculated from the areas of the minor loops and normalized to the area of the major loop) are not very sensitive to the details of the cycling process, i.e. they are very similar for all sets.

• Periodical: Materials Science Forum (Volumes 738-739)
• Pages: 38-45
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.738-739.38
• Online since: January 2013
• Authors: Lajos Daróczi, Tarek El Rasasi, Dezső L. Beke
• Keywords: Free Energy Contributions, Hysteretic Behaviour, Shape Memory Alloy (SMA), Thermal Cycle

References

[1] G. Bertotti, Hysteresis in magnetism, Academic Press, San Diego, 1998, P. 443

[2] G. I. Mayergroyz, Scalar Preisach Models of Hystereis in P. Bertotti and I. Mayergozy (eds), The Science of Hysteresis, Elsevier, 2005, Vol. I p.293

[3] J. Ortin and A. Planes, Hysteresis in Shape-Memory Alloys in P. Bertotti and I. Mayergozy (eds), The Science of Hysteresis, Elsevier, 2005,Vol. III. p.467

[4] Beke, D.L., Daróczi L., Palánki Z., Lexcellent C.; International Conference on Shape Memory and Superelastic Technologies, SMST-2007; Tsukuba; 2 December 2007 through 5 December (2007)

[5] D.L. Beke, L. Daróczi, T. Y. Elrasasi, "Determination of elastic and dissipative energy contributions to martensitic phase transformation in shape memory alloys" book chapter in "Shape Memory Alloys" (Ed. F.M.B. Fernandes), In-Tech, Zagreb, ISBN 979-953-307-797-9 (2012)

DOI: 10.5772/51511

[6] Z. Palánki, L. Daróczi, L. Excellent, D.L. Beke, Acta Mat. 55 (2010) 1823-1830

[7] El Rasasi, T.Y., Daróczi, L., Beke, D.L; Intermetallics Volume 18, Issue 6, June 2010, Pages 1137-1142

[8] El Rasasi, T.Y., Daróczi, L., Beke, D.L; Journal of Alloys and Compounds in press

[9] Planes A., Macqueron, J.L., Ortin J., Phil. Mag. Letters, 57 (1988) 291-298

[10] Ortin.J, Planes A., Journal de Physique IV, Colloque C4 (supplement) Vol. 1 (1991), C4-13-C4-23

DOI: 10.1051/jp4:1991402

[11] Planes A., Castan, T., Ortin, J., J of Appl. Phys. 66 (1989) 2342-2348

[12] H.C. Tong and C.M. Wayman, Acta Metall., 22 (1974) 887.

[13] Salzbrenner R.J., Cohen, M. Acta metall, 27 (1979) 739
