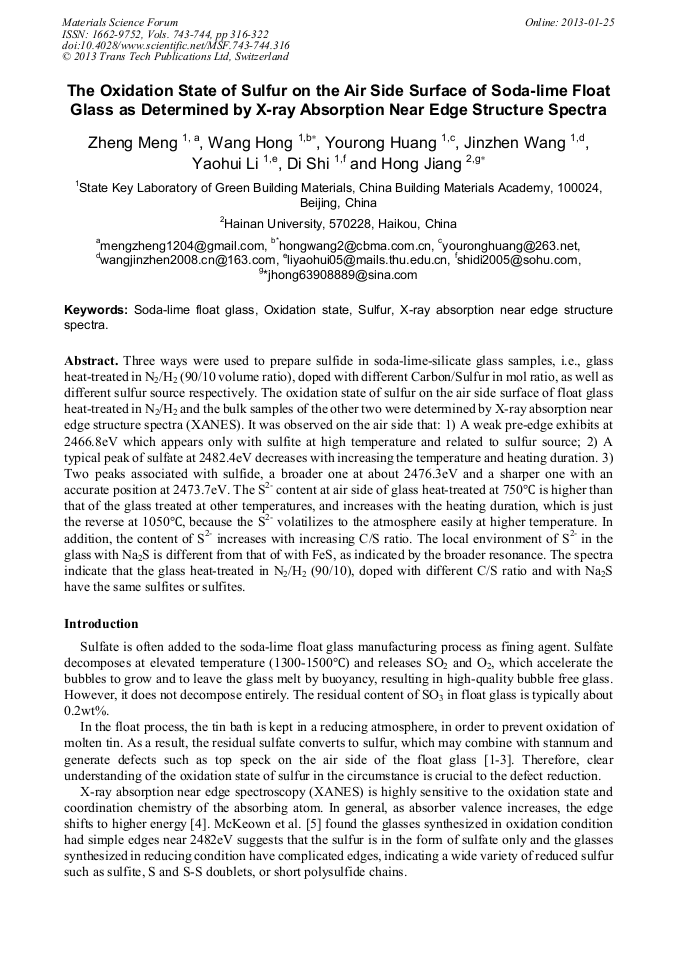

The Oxidation State of Sulfur on the Air Side Surface of Soda-Lime Float Glass as Determined by X-Ray Absorption near Edge Structure Spectra

Abstract:

Three ways were used to prepare sulfide in soda-lime-silicate glass samples, i.e., glass heat-treated in N₂/H₂ (90/10 volume ratio), doped with different Carbon/Sulfur in mol ratio, as well as different sulfur source respectively. The oxidation state of sulfur on the air side surface of float glass heat-treated in N₂/H₂ and the bulk samples of the other two were determined by X-ray absorption near edge structure spectra (XANES). It was observed on the air side that: 1) A weak pre-edge exhibits at 2466.8eV which appears only with sulfite at high temperature and related to sulfur source; 2) A typical peak of sulfate at 2482.4eV decreases with increasing the temperature and heating duration. 3) Two peaks associated with sulfide, a broader one at about 2476.3eV and a sharper one with an accurate position at 2473.7eV. The S^2- content at air side of glass heat-treated at 750 is higher than that of the glass treated at other temperatures, and increases with the heating duration, which is just the reverse at 1050, because the S^2- volatilizes to the atmosphere easily at higher temperature. In addition, the content of S^2- increases with increasing C/S ratio. The local environment of S^2- in the glass with Na₂S is different from that of with FeS, as indicated by the broader resonance. The spectra indicate that the glass heat-treated in N₂/H₂ (90/10), doped with different C/S ratio and with Na₂S have the same sulfites or sulfites.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 316-322
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.316
• Online since: January 2013
• Authors: Zheng Meng, Wang Hong, You Rong Huang, Jin Zhen Wang, Yao Hui Li, Di Shi, Hong Jiang
• Keywords: Oxidation State, Soda-Lime Float Glass, Sulfur, X-Ray Absorption near Edge Structure Spectra

References

[1] N. Ban, T. Kamihori, H. Takamuku, A study of the behavior of volatiles in the float process, Journal of Non-Crystalline Solids. 345 (2004) 777-781.

DOI: 10.1016/j.jnoncrysol.2004.08.200

[2] G.H. Frischat, Tin ions in float glass cause anomalies, Comptes Rendus Chimie. 5 (2002) 759-763.

DOI: 10.1016/s1631-0748(02)01436-4

[3] S. Takeda, Oxygen and silver diffusion into float glass, Journal of Non-Crystalline Solids. 5 (2006) 3910-3913.

DOI: 10.1016/j.jnoncrysol.2006.06.010

[4] D. Li, G.M. Bancroft, M. Kasrai, M.E. Fleet, X. Feng, K. Tan, S K-and L-edge X-ray absorption spectroscopy of metal sulfides and sulfates; applications in mineralogy and geochemistry, The Canadian Mineralogist. 5 (1995) 949-960.

[5] D.A. McKeown, I.S. Muller, H. Gan, I.L. Pegg, W.C. Stolte, Determination of sulfur environments in borosilicate waste glasses using X-ray absorption near-edge spectroscopy, Journal of Non-Crystalline Solids. 333 (2004) 74-84.

DOI: 10.1016/j.jnoncrysol.2003.09.035

[6] L. Backnaes, J. Stelling, H. Behrens, J. Goettlicher, S. Mangold, O. Verheijen, R.G.C. Beerkens, J. Deubener, Dissolution Mechanisms of Tetravalent Sulfur in Silicate Melts: Evidences from Sulfur K Edge XANES Studies on Glasses, Journal of the American Ceramic Society. 999 (2008).

DOI: 10.1111/j.1551-2916.2007.02044.x

[7] A.M. Flank, P. Lagarde, J. Jupille, H. Montigaud, Redox profile of the glass surface, Journal of Non-Crystalline Solids. 357 (2011) 3200-3206.

DOI: 10.1016/j.jnoncrysol.2011.03.046

[8] J. Stelling, H. Behrens, M. Wilke, J. Göttlicher, E. Chalmin-Aljanabi, Interaction between sulphide and H2O in silicate melts, Geochimica et Cosmochimica Acta. 75 (2011) 42-3557.

DOI: 10.1016/j.gca.2011.03.030

[9] D.A. McKeown, I.S. Muller, H. Gan, I.L. Pegg, W.C. Stolte, Determination of sulfur environments in borosilicate waste glasses using X-ray absorption near-edge spectroscopy, Journal of Non-Crystalline Solids. 333 (2004) 74-84.

DOI: 10.1016/j.jnoncrysol.2003.09.035

[10] M.M. Smedskjaer, Y. Yue, J. Deubener, H.P. Gunnlaugsson, S. Mørup, Modifying glass surfaces via internal diffusion, Journal of Non-Crystalline Solids. 356 (2010) 290-298.

DOI: 10.1016/j.jnoncrysol.2009.12.004

[11] M.M. Smedskjaer, Q. Zheng, J.C. Mauro, M. Potuzak, S. Mørup, Y. Yue, Sodium diffusion In boroaluminosilicate glasses, Journal of Non-Crystalline Solids. 357 (2011)3744-3750.

DOI: 10.1016/j.jnoncrysol.2011.07.008

[12] R.H. Doremus, Glass Science, John Wiley and Sons, New York, (1994).

[13] G.B. Cook, R.F. Cooper, Redox dynamics in the high-temperature float processing of glasses. I. Reaction between undoped and iron-doped borosilicate glass melts and a gold±tin alloy, Journal of Non-Crystalline Solids. 249 (1999) 210-227.

DOI: 10.1016/s0022-3093(99)00312-9

[14] Z. Meng, H. Jiang, the oxidation state detected in Na2O-CaO-SiO2 float glass by X-ray absorption near edge structure spectra, Journal of Wuhan University of Technology-Mater. Sci. Ed(in press).

DOI: 10.1007/s11595-013-0644-2

[15] N. Métrich, A.J. Berry, H.S.C. O'Neill, J. Susini, The oxidation state of sulfur in synthetic and natural glasses determined by X-ray absorption spectroscopy, Geochimica et Cosmochimica Acta. 73 (2009) 2382-2399.

DOI: 10.1016/j.gca.2009.01.025

[16] M.E. Fleet, X. Liu, S.L. Harmer, P.L. King, Sulfur K-edge XANES spectroscopy: chemical state and content of sulfur in silicate glasses, The Canadian Mineralogist. 43 (2005) 1605-1618.

DOI: 10.2113/gscanmin.43.5.1605
