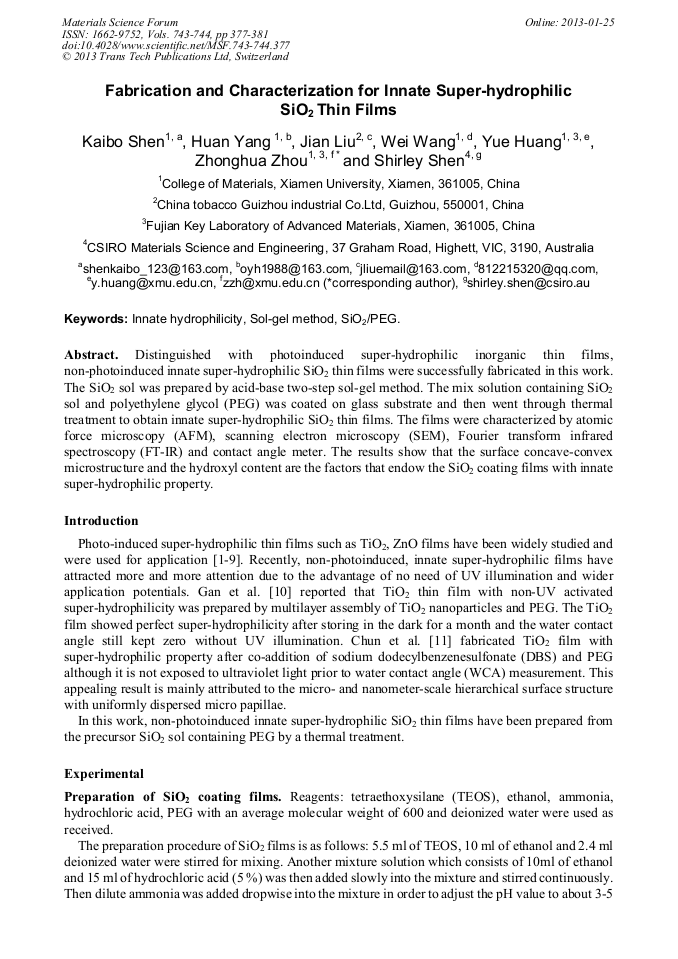

Fabrication and Characterization for Innate Super-Hydrophilic SiO₂ Thin Films

Abstract:

Distinguished with photoinduced super-hydrophilic inorganic thin films, non-photoinduced innate super-hydrophilic SiO₂ thin films were successfully fabricated in this work. The SiO₂ sol was prepared by acid-base two-step sol-gel method. The mix solution containing SiO₂ sol and polyethylene glycol (PEG) was coated on glass substrate and then went through thermal treatment to obtain innate super-hydrophilic SiO₂ thin films. The films were characterized by atomic force microscopy (AFM), scanning electron microscopy (SEM), Fourier transform infrared spectroscopy (FT-IR) and contact angle meter. The results show that the surface concave-convex microstructure and the hydroxyl content are the factors that endow the SiO₂ coating films with innate super-hydrophilic property.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 377-381
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.377
• Online since: January 2013
• Authors: Kai Bo Shen, Huan Yang, Jian Liu, Wei Wang, Yue Huang, Zhong Hua Zhou, Shirley Shen
• Keywords: Innate Hydrophilicity, SiO₂/PEG, Sol-Gel Method

References

[1] R. Wang, K. Hashimoto, A. Fujishima, M. Chikuni, E. Kojima, A. Kitamura, et al., Photogeneration of highly amphiphilic TiO2 surfaces, Adv. Mater. 10 (1998) 135-138.

DOI: 10.1002/(sici)1521-4095(199801)10:2<135::aid-adma135>3.0.co;2-m

[2] R. Wang, K. Hashimoto, A. Fujishima, Light-induced amphiphilic surfaces, Nature 388 (1997) 431-432.

DOI: 10.1038/41233

[3] N. Sakai, R. Wang, A. Fujishima, T. Watanabe, K. Hashimoto, Effect of ultrasonic treatment on highly hydrophilic TiO2 surfaces, Langmuir 14 (1998) 5918-5920.

DOI: 10.1021/la980623e

[4] R. Wang, N. Sakai, A. Fujishima, T. Watanabe, K. Hashimoto, Studies of surface wettability conversion on TiO2 single-crystal surfaces, J. Phys. Chem. B. 103 (1999) 2188-2194.

DOI: 10.1021/jp983386x

[5] M. Miyauchi, A. Nakajima, A. Fujishima, K. Hashimoto, T. Watanabe, Photoinduced surface reactions on TiO2 and SrTiO3 films photocatalytic oxidation and photoinduced hydrophilicity, Chem. Mater. 12 (2000) 3-5.

DOI: 10.1021/cm990556p

[6] K. Ishibashi, Y. Nosaka, K. Hashimoto, A. Fujishima, Time-dependent behavior of active oxygen species formed on photoirradiated TiO2 films in air, J. Phys. Chem. B. 102 (1998) 2117-2120.

DOI: 10.1021/jp973401i

[7] T. Watanabe, A. Nakajima, R. Wang, M. Minabe, S. Koizumi, A. Fujishima and K. Hashimoto, Photocatalytic activity and photoinduced hydrophilicity of titanium dioxide coated glass, Thin Solid Films 351 (1999) 260-263.

DOI: 10.1016/s0040-6090(99)00205-9

[8] A. Nakajima, K. Hashimoto, T. Watanabe, K. Takai, G. Yamauchi and A. Fujishima, Transparent superhydrophobic thin films with self-cleaning properties, Langmuir 16 (2000) 7044-7047.

DOI: 10.1021/la000155k

[9] X.J. Feng, L. Feng, M.H. Jin, J. Zhai, L. Jiang, D.B. Zhu, Reversible superhydrophobic to superhydrophilic transition of aligned ZnO nanorod films, JACS. 126 (2004) 62-63.

DOI: 10.1021/ja038636o

[10] W.Y. Gan, S.W. Lam, K. Chiang, R. Amal, H.J. Zhao, M.P. Brungs, Novel TiO2 thin film with non-UV activated superwetting and antifogging behaviors, J. Mater. Chem. 17 (2007) 952-954.

DOI: 10.1039/b618280a

[11] Q.Y. Chun, J.L. Qiang, W.W. Xin, F.H. Gang, L. Yang, Effects of co-adition of DBS and PEG on wetting performance of TiO2 film, Chem. Res. Chinese Universities. 27 (2011) 1-5.

[12] G.J. Wang, Q. Shi, H.X. Shang, L. Liu, J. Pan, Preparation of hydrophobic coatings with methyltrimethoxysilane modified Si-sol, CIESC Journal 9 (2009).

[13] R.N. Wenzel, Resistance of solid surfaces to wetting by water, Ind. Eng. Chem. 28 (1936) 988-994.

DOI: 10.1021/ie50320a024
