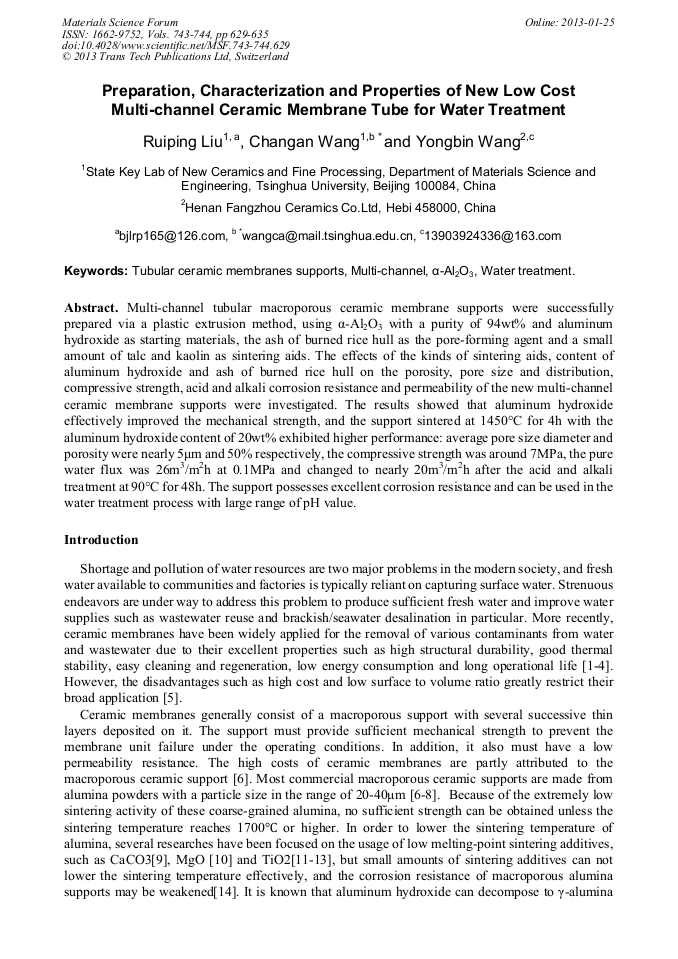

Preparation, Characterization and Properties of New Low Cost Multi-Channel Ceramic Membrane Tube for Water Treatment

Abstract:

Multi-channel tubular macroporous ceramic membrane supports were successfully prepared via a plastic extrusion method, using α-Al₂O₃ with a purity of 94wt% and aluminum hydroxide as starting materials, the ash of burned rice hull as the pore-forming agent and a small amount of talc and kaolin as sintering aids. The effects of the kinds of sintering aids, content of aluminum hydroxide and ash of burned rice hull on the porosity, pore size and distribution, compressive strength, acid and alkali corrosion resistance and permeability of the new multi-channel ceramic membrane supports were investigated. The results showed that aluminum hydroxide effectively improved the mechanical strength, and the support sintered at 1450°C for 4h with the aluminum hydroxide content of 20wt% exhibited higher performance: average pore size diameter and porosity were nearly 5μm and 50% respectively, the compressive strength was around 7MPa, the pure water flux was 26m³/m²h at 0.1MPa and changed to nearly 20m³/m²h after the acid and alkali treatment at 90°C for 48h. The support possesses excellent corrosion resistance and can be used in the water treatment process with large range of pH value.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 629-635
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.629
• Online since: January 2013
• Authors: Rui Ping Liu, Chan Gan Wang, Yong Bin Wang
• Keywords: Multi-Channel, Tubular Ceramic Membranes Supports, Water Treatment, α-Al₂O₃

References

[1] Sareh Rezaei Hosein Abadi, Mohammad Reza Sebzari, Mahmood Hemati, Fatemeh Rekabdar, Toraj Mohammadi, Ceramic membrane performance in microfiltration of oily wastewater, Desalination. 265 (2011) 222-228.

DOI: 10.1016/j.desal.2010.07.055

[2] Leonardo L.O. Silva, Daniela C.L. Vasconcelos, Eduardo H.M. Nunes, Lecino Caldeira, Vilma C. Costa, Ana P. Musse, et al., Processing, structural characterization and performance of alumina supports used in ceramic membranes, Ceram. Int. 38 (2012).

DOI: 10.1016/j.ceramint.2011.10.025

[3] Changhong Su, Youqian Xu, Wei Zhang, Yang Liu, Jun Li, Porous ceramic membrane with superhydrophobic and superoleophilic surface for reclaiming oil from oily water, Appl. Surf. Sci. 258 (2012) 2319-2323.

DOI: 10.1016/j.apsusc.2011.10.005

[4] Zhaoliang Cui, Weihong Xing, Yiqun Fan, Nanping Xu, Pilot study on the ceramic membrane pre-treatment for seawater desalination with reverse osmosis in Tianjin Bohai Bay, Desalination. 279 (2011) 190-194.

DOI: 10.1016/j.desal.2011.06.008

[5] Hsieh HP, Inorganic membranes for separation and reaction, Amsterdam, The Netherlands, (1996).

[6] Hong Qi, Yiqun Fan, Weihong Xing, Louis Winnubst, Effect of TiO2 doping on the characteristics of macroporous Al2O3/TiO2 membrane supports, J. Eur. Ceram. Soc. 30 (2010) 1317-1325.

DOI: 10.1016/j.jeurceramsoc.2009.12.011

[7] Yingchao Dong, Xuyong Feng, Dehua Dong, Songlin Wang, Jiakui Yang, Jianfeng Gao, et al., Elaboration and chemical corrosion resistance of tubular macro-porous cordierite ceramic membrane supports, J. Membr. Sci. 304 (2007) 65-75.

DOI: 10.1016/j.memsci.2007.06.058

[8] Wang Y H, Cheng J G, Liu X Q, et al., Preparation and sintering of macroporous ceramic membrane support from titania sol-coated alumina powder, J Am Ceram Soc. 91 (2008) 825-830.

DOI: 10.1111/j.1551-2916.2007.02207.x

[9] C. Falamaki, M. Naimi, A. Aghaie, Dual behavior of CaCO3 as a porosifier and sintering aid in the manufacture of alumina membrane/catalyst supports, J. Eur. Ceram. Soc. 24 (2004) 3195-3201.

DOI: 10.1016/j.jeurceramsoc.2003.10.041

[10] Han YS, Li JB, Chen YJ, Fabrication of bimodal porous alumina ceramics, Mater Res Bull. 38 (2003) 373-379.

[11] Y.H. Wang, Y. Zhang, X.Q. Liu, G.Y. Meng, Microstructure control of ceramic membrane support from corundum–rutile powder mixture, Powder Technol. 168 (2006) 125-133.

DOI: 10.1016/j.powtec.2006.07.010

[12] Zhang Q L, Yang H, Zou J L, et al., Sintering and dielectric properties of Al2O3 ceramics doped by TiO2 and CuO, J Electroceram. 18 (2007) 225-229.

DOI: 10.1007/s10832-007-9028-3

[13] Lu F H, Fang F X, Chen Y S, Eutectic reaction between copper oxide and titanium dioxide, J Eur Ceram Soc. 21 (2001) 1093-1099.

[14] Yingchao Dong, Bin Lin, Jian-er Zhou, Xiaozhen Zhang, Yihan Ling, Xingqin Liu, et al., Corrosion resistance characterization of porous alumina membrane supports, Mater. Charact. 62 (2011) 409-418.

DOI: 10.1016/j.matchar.2011.01.012
