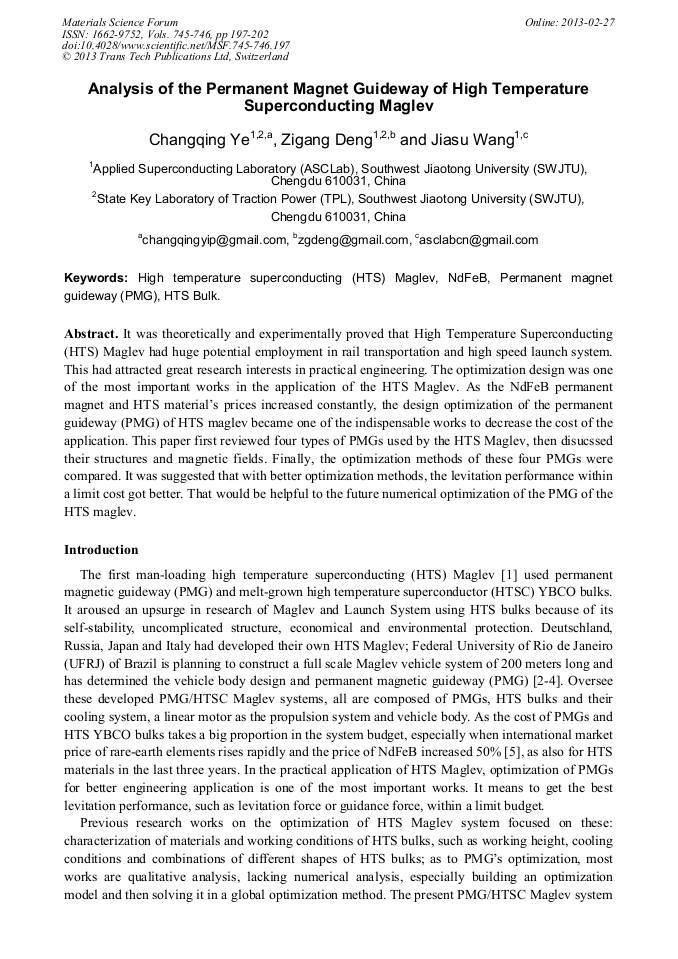

Analysis of the Permanent Magnet Guideway of High Temperature Superconducting Maglev

Abstract:

t was theoretically and experimentally proved that High Temperature Superconducting (HTS) Maglev had huge potential employment in rail transportation and high speed launch system. This had attracted great research interests in practical engineering. The optimization design was one of the most important works in the application of the HTS Maglev. As the NdFeB permanent magnet and HTS materials prices increased constantly, the design optimization of the permanent guideway (PMG) of HTS maglev became one of the indispensable works to decrease the cost of the application. This paper first reviewed four types of PMGs used by the HTS Maglev, then disucssed their structures and magnetic fields. Finally, the optimization methods of these four PMGs were compared. It was suggested that with better optimization methods, the levitation performance within a limit cost got better. That would be helpful to the future numerical optimization of the PMG of the HTS maglev.

• Periodical: Materials Science Forum (Volumes 745-746)
• Pages: 197-202
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.745-746.197
• Online since: February 2013
• Authors: Chang Qing Ye, Zi Gang Deng, Jia Su Wang
• Keywords: High Temperature Superconducting (HTS) Maglev, HTS Bulk, NdFeB, Permanent Magnet Guideway (PMG)

References

[1] J.S. Wang, S.Y. Wang, et al., The first man-loading high temperature superconducting Maglev test vehicle in the world. Physica C 378-381(Part 1) (2002) 809-814.

DOI: 10.1016/s0921-4534(02)01548-4

[2] R. Stephan, R. Nicolsky, et al., A superconducting levitation vehicle prototype. Physica C 408–410 (2004) 932–934.

DOI: 10.1016/j.physc.2004.03.169

[3] G. G. Sotelo, D. H. N. Dias, et al., Experiments in a Real Scale Maglev Vehicle Prototype. Journal of Physics: Conference Series 234 (2010) 032054.

DOI: 10.1088/1742-6596/234/3/032054

[4] G.G. Sotelo, D.H.N. Dias, et al., Tests on a Superconductor Linear Magnetic Bearing of a Full-Scale Maglev Vehicle. IEEE Trans. Appl. Superconductivity Vol. 21 No. 3 (2011) 1464-1468.

DOI: 10.1109/tasc.2010.2086034

[5] Information on http: /www. dailyfinance. com.

[6] G.T. Ma, N Wang, et al., Influence of Pre-loading on The Levitation Force Decay Due to Transverse Movement in A High-Tc Superconducting Maglev System. Chinese Journal of Low Temperature Physics Vol. 33 No. 6 (2011) 445-449.

[7] F. Guo, Research on HTS Maglev Continuous Pulsed Magnetic Traveling Wave Propulsion. A Doctor Thesis. Huazhong University of Science and Technology, Wuhan, China, (2010).

[8] E.S. Motta, D.H.N. Dias, et al., Optimization of a Linear Superconducting Levitation System. IEEE Trans. Appl. Superconductivity Vol. 21 No. 5 (2011) 3548-3554.

DOI: 10.1109/tasc.2011.2161986

[9] J. Zheng, W. Liu, et al., Levitation Efficiency Optimization Considerations for High Temperature Superconducting Maglev. Chinese Journal of Low Temperature Physics Vol. 31 No. 5 (2009) 304-308.
