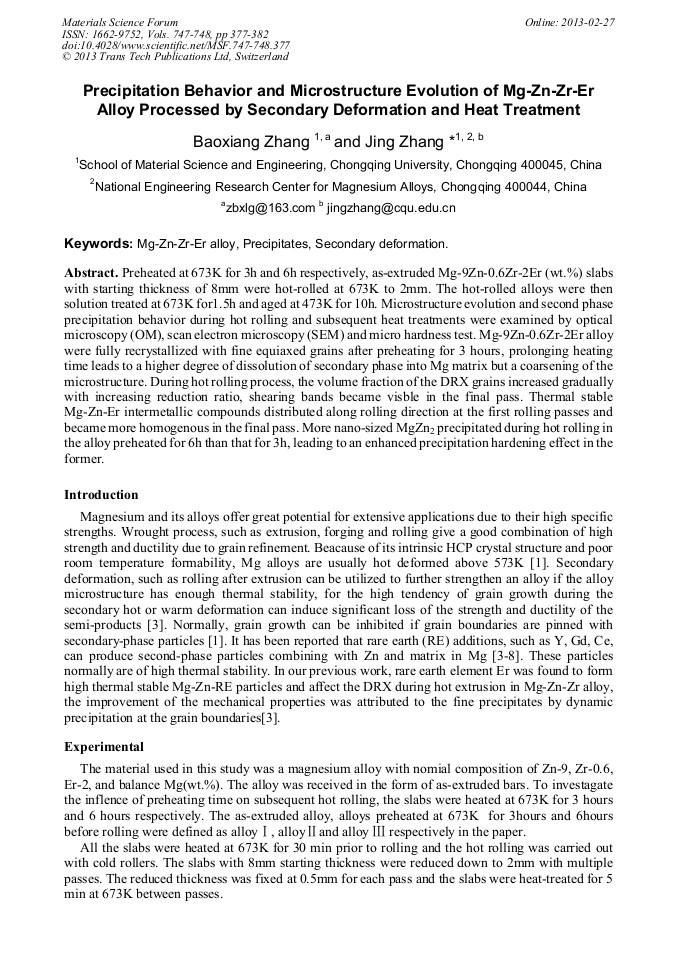

Precipitation Behavior and Microstructure Evolution of Mg-Zn-Zr-Er Alloy Processed by Secondary Deformation and Heat Treatment

Abstract:

Preheated at 673K for 3h and 6h respectively, as-extruded Mg-9Zn-0.6Zr-2Er (wt.%) slabs with starting thickness of 8mm were hot-rolled at 673K to 2mm. The hot-rolled alloys were then solution treated at 673K for1.5h and aged at 473K for 10h. Microstructure evolution and second phase precipitation behavior during hot rolling and subsequent heat treatments were examined by optical microscopy (OM), scan electron microscopy (SEM) and micro hardness test. Mg-9Zn-0.6Zr-2Er alloy were fully recrystallized with fine equiaxed grains after preheating for 3 hours, prolonging heating time leads to a higher degree of dissolution of secondary phase into Mg matrix but a coarsening of the microstructure. During hot rolling process, the volume fraction of the DRX grains increased gradually with increasing reduction ratio, shearing bands became visble in the final pass. Thermal stable Mg-Zn-Er intermetallic compounds distributed along rolling direction at the first rolling passes and became more homogenous in the final pass. More nanosized MgZn₂ precipitated during hot rolling in the alloy preheated for 6h than that for 3h, leading to an enhanced precipitation hardening effect in the former.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 377-382
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.377
• Online since: February 2013
• Authors: Bao Xiang Zhang, Jing Zhang
• Keywords: Mg-Zn-Zr-Er Alloy, Precipitate, Secondary Deformation

References

[1] K. Hono, C.L. Mendis, T.T. Sasaki and K. Oh-ishi. Towards the development of heat-treatable high-strength wrought Mg alloys, Scripta Materialia 63(2010) 710-715.

DOI: 10.1016/j.scriptamat.2010.01.038

[2] Zhen Zhang, Ming-pu Wang, Shuo Zhu. Formation of shearing bands in the hot-rolling process of AZ31 alloy, Journal of Alloys and compounds 512(2012) 73-78.

DOI: 10.1016/j.jallcom.2011.09.021

[3] Jing Zhang, Qi Ma, Fusheng Pan. Effects of trace Er addition on the microstructure and mechanical properties of Mg-Zn-Zr alloy, Materials and Design 31(2010)4043-4049.

DOI: 10.1016/j.matdes.2010.05.008

[4] Z.P. Luo D.Y. Song S.Q. Zhang. Strengthening effects of rare earths on wrought Mg-Zn-Zr-RE alloys, Journal of alloys and compounds 230(1995)109-114.

DOI: 10.1016/0925-8388(95)01893-x

[5] Muhammad Shahzad, Lothar Wagner. Microstructure development during extrusion in a wrought Mg-Zn-Zr alloy, Scripta Materilia 60(2009)536-538.

DOI: 10.1016/j.scriptamat.2008.12.006

[6] Xiaoqin Zeng, Ya Zhang, Chen Lu. Precipitation behavior and mechanical properties of a Mg-Zn-Y-Zr alloy processed by themo-mechanical treatment, Journal of Alloys and Compounds 395(2005)213-219.

DOI: 10.1016/j.jallcom.2004.10.070

[7] He S, Peng L, Zeng X, Ding W, Zhu Y. Comparison of the microstructure and mechanical properties of a ZK60 alloy with and without 1. 3 wt. % gadolinium addition, Mater Sci Eng A 433(2006)175-181.

DOI: 10.1016/j.msea.2006.06.063

[8] Bohlen J, Nurnberg MR, Senn JW, Letzig D, Agnew SR. The texture and anisotropy of magnesium-zinc-rare earth alloy sheets, Acta Mater 55(2007)2101-(2012).

DOI: 10.1016/j.actamat.2006.11.013

[9] Miao Qing, Hu lian-xi, SUN Hong-fei, WANG Er-de. Grain refining and property improvement of AZ31Mg alloy by hot rolling, Trans. Nonferrous. Met. Soc. china 19(2009)s326-s330.

DOI: 10.1016/s1003-6326(10)60063-5
