Rolling Temperature and Subsequent Annealing on Microstructure, Texture and Mechanical Properties of Consecutive Rolled Mg-2.0Zn-0.8Gd Alloy

Abstract:

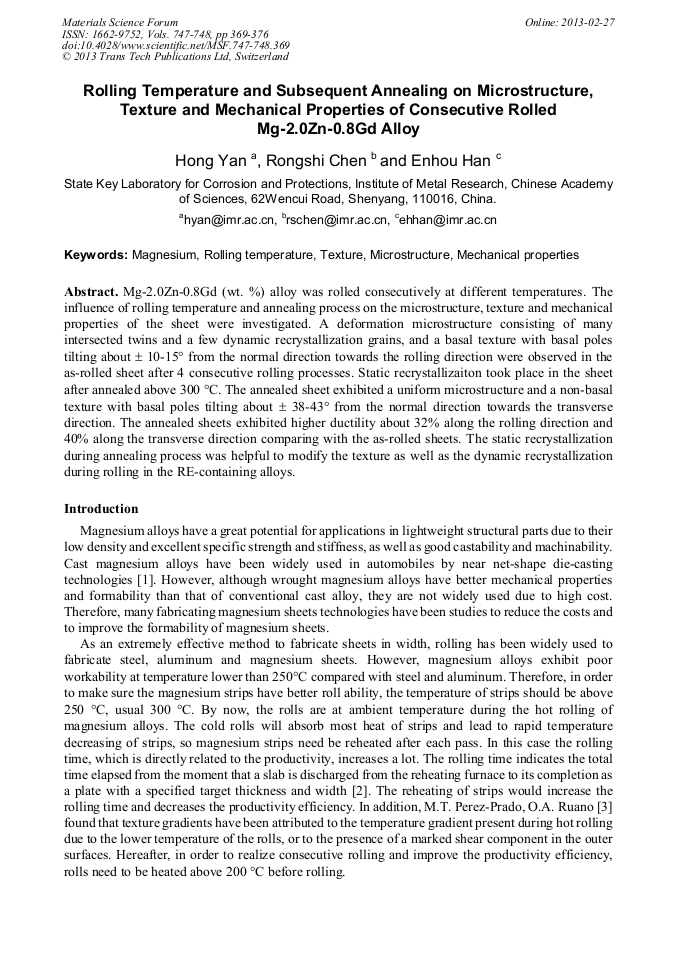

Mg-2.0Zn-0.8Gd (wt. %) alloy was rolled consecutively at different temperatures. The influence of rolling temperature and annealing process on the microstructure, texture and mechanical properties of the sheet were investigated. A deformation microstructure consisting of many intersected twins and a few dynamic recrystallization grains, and a basal texture with basal poles tilting about ± 10-15° from the normal direction towards the rolling direction were observed in the as-rolled sheet after 4 consecutive rolling processes. Static recrystallizaiton took place in the sheet after annealed above 300 °C. The annealed sheet exhibited a uniform microstructure and a non-basal texture with basal poles tilting about ± 38-43° from the normal direction towards the transverse direction. The annealed sheets exhibited higher ductility about 32% along the rolling direction and 40% along the transverse direction comparing with the as-rolled sheets. The static recrystallization during annealing process was helpful to modify the texture as well as the dynamic recrystallization during rolling in the RE-containing alloys.

• Periodical: Materials Science Forum (Volumes 747-748)
• Pages: 369-376
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.747-748.369
• Online since: February 2013
• Authors: Hong Yan, Rongshi Chen, En-Hou Han
• Keywords: Magnesium, Mechanical Property, Microstructure, Rolling Temperature, Texture

References

[1] B.L. Mordike and T. Ebert, Magnesium - Properties - applications - potential, Materials Science and Engineering A 302 (2001) 37-45.

[2] C.H. Moon and Y. Lee, The effects of rolling method changes on productivity in thick plate rolling process, Journal of Materials Processing Technology 210 (2010)1844-1851.

DOI: 10.1016/j.jmatprotec.2010.06.018

[3] M.T. Perez-Prado and O.A. Ruano, Texture evolution during annealing of magnesium AZ31 alloy, Scripta Materialia, 46 (2002) 149-155.

DOI: 10.1016/s1359-6462(01)01212-x

[4] J. Bohlen, M.R. Nürnberg, J.W. Senn, D. Letzig and S.R. Agnew, The texture and anisotropy of magnesium-zinc-rare earth alloy sheets, Acta Materialia 55 (2007) 2101-2112.

DOI: 10.1016/j.actamat.2006.11.013

[5] Y. Chino, K. Sassa and M. Mabuchi, Texture and stretch formability of a rolled Mg-Zn alloy containing dilute content of Y. Materials Science and Engineering A 513-514 (2009) 394-400.

DOI: 10.1016/j.msea.2009.01.074

[6] H. Yan, R.S. Chen and E.H. Han, Room-temperature ductility and anisotropy of two rolled Mg-Zn-Gd alloys, Materials Science and Engineering A 527 (2010) 3317-3322.

DOI: 10.1016/j.msea.2010.02.038

[7] S.B. Yi, I. Schestakow and S. Zaefferer, Twinning-related microstructural evolution during hot rolling and subsequent annealing of pure magnesium. Materials Science and Engineering A 516 (2009) 58-64.

DOI: 10.1016/j.msea.2009.03.015

[8] S.Q. Zhu, H.G. Yan, J.H. Chen, Y.Z. Wu, J.Z. Liu and J. Tian, Effect of twinning and dynamic recrystallization on the high strain rate rolling process, Scripta Materialia 63 (2010) 985-988.

DOI: 10.1016/j.scriptamat.2010.07.029

[9] Y.C. Ｘin, M.Y. Wang, Z. Zeng, G.J. Huang and Q. Liu, Tailoring the texture of magnesium alloy by twinning deformation to improve the rolling capability, Scripta Materialia 64 (2011) 986-989.

DOI: 10.1016/j.scriptamat.2011.02.010

[10] A. Styczynski, C. Hartig, J. Bohlen and D. Letzig, Cold rolling textures in AZ31 wrought magnesium alloy, Scripta Materialia 50 (2004) 943-947.

DOI: 10.1016/j.scriptamat.2004.01.010

[11] C.E. Dreyer, W.V. Chiu, R.H. Wagone and S.R. Agnew, Formability of a more randomly textured magnesium alloy sheet: Application of an improved warm sheet formability test, Journal of Materials Processing Technology 210 (2010) 37-47.

DOI: 10.1016/j.jmatprotec.2009.08.022
