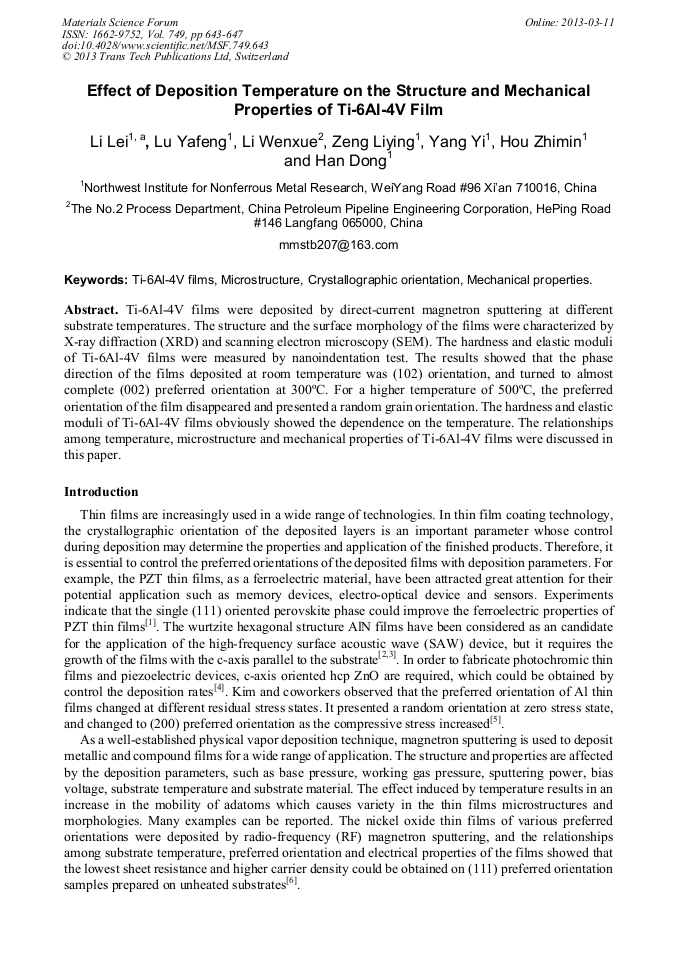

Effect of Deposition Temperature on the Structure and Mechanical Properties of Ti-6Al-4V Film

Abstract:

Ti-6Al-4V films were deposited by direct-current magnetron sputtering at different substrate temperatures. The structure and the surface morphology of the films were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The hardness and elastic moduli of Ti-6Al-4V films were measured by nanoindentation test. The results showed that the phase direction of the films deposited at room temperature was (102) orientation, and turned to almost complete (002) preferred orientation at 300°C. For a higher temperature of 500°C, the preferred orientation of the film disappeared and presented a random grain orientation. The hardness and elastic moduli of Ti-6Al-4V films obviously showed the dependence on the temperature. The relationships among temperature, microstructure and mechanical properties of Ti-6Al-4V films were discussed in this paper.

• Periodical: Materials Science Forum (Volume 749)
• Pages: 643-647
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.749.643
• Online since: March 2013
• Authors: Lei Li, Ya Feng Lu, Wen Xue Li, Li Ying Zeng, Yi Yang, Zhi Min Hou, Dong Han
• Keywords: Crystallographic Orientation, Mechanical Property, Microstructure, Ti-6Al-4V Films

References

[1] Xinshan Li, Tsunehisa Tanaka, Yoshihiko Suzuki, Preferred orientation and ferroelectric properties of lead zirconate titanate thin films, Thin Solid Films. 375 (2000) 91-94.

DOI: 10.1016/s0040-6090(00)01231-1

[2] F. Takeda, T. Mori, T. Takahashi, Effect of Hydrogen Gas on c-Axis Oriented AlN Films Prepared by Reactive Magnetron Sputtering, Jpn J Appl Phys. 20 (1981) L169-L172.

DOI: 10.1143/jjap.20.l169

[3] HwandashChul Lee, KiYoung Lee, YoondashJoong Yong, Influence of sputtering pressure on the microstructure evolution of AlN thin films prepared by reactive sputtering, Thin Solid Films. 261 (1995) 148-153.

DOI: 10.1016/s0040-6090(95)06530-x

[4] D.K. Murti, T.L. Bluhm, Preferred orientation of ZnO films controlled by r. f. sputtering, Thin Solid Films. 87 (1982) 57-61.

DOI: 10.1016/0040-6090(82)90571-5

[5] S.P. Kim, H.M. Choi, S.K. Choi, A study on the crystallographic orientation with residual stress and electrical property of Al films deposited by sputtering, Thin Solid Films. 322 (1998) 298-302.

DOI: 10.1016/s0040-6090(97)00926-7

[6] HaoLong Chen, YaoSheng Yang, Effect of crystallographic orientations on electrical properties of sputter-deposited nickel oxide thin films, Thin Solid Films. 516 (2008) 5590-5594.

DOI: 10.1016/j.tsf.2007.07.035

[7] R. Checchetto, Titanium thin film deposition in a deuterium atmosphere, Thin Solid Films. 302 (1997) 77-83.

DOI: 10.1016/s0040-6090(96)09552-1

[8] Tetsu Miyoshi, Yumiko Haga, Osamu Nittono, Microstructure and preferred orientation in pure titanium films deposited by two-facing-target-type DC sputtering, Thin Solid Films. 281 (1996) 128-131.

DOI: 10.1016/0040-6090(96)08592-6

[9] Deeder Aurongzeb, Growth instability and surface phase transition of Ti thin film on Si (1 1 1): An atomic force microscopy study, Applied Surface Science. 252(2006) 6135-6140.

DOI: 10.1016/j.apsusc.2005.07.026

[10] Min J. Jung, Kyung H. Nam, Leonid R. Shaginyan, Jeon G. Han, Deposition of Ti thin film using the magnetron sputtering method, Thin Solid Films. 435 (2003) 145-149.

DOI: 10.1016/s0040-6090(03)00344-4

[11] Vipin Chawla, R. Jayaganthan, A.K. Chawla, Ramesh Chandra, Microstructural characterizations of magnetron sputtered Ti films on glass substrate, Journal of Materials Progressing Technology. 209 (2009) 3444-3451.

DOI: 10.1016/j.jmatprotec.2008.08.004

[12] J. Musil, J. Vlček, V. ježek, M. Benda, M. Kolega, R. Boomsma, Production of Ti films with controlled texture, Surface and Coatings Technology. 76 (1995) 274-279.

DOI: 10.1016/0257-8972(95)02582-0

[13] R.A. Swalin, in: Thermodynamics of Solids, Wiley, New York, 1972, pp.232-235.
