The Role of Pb Impurity in SAC Solder Alloy

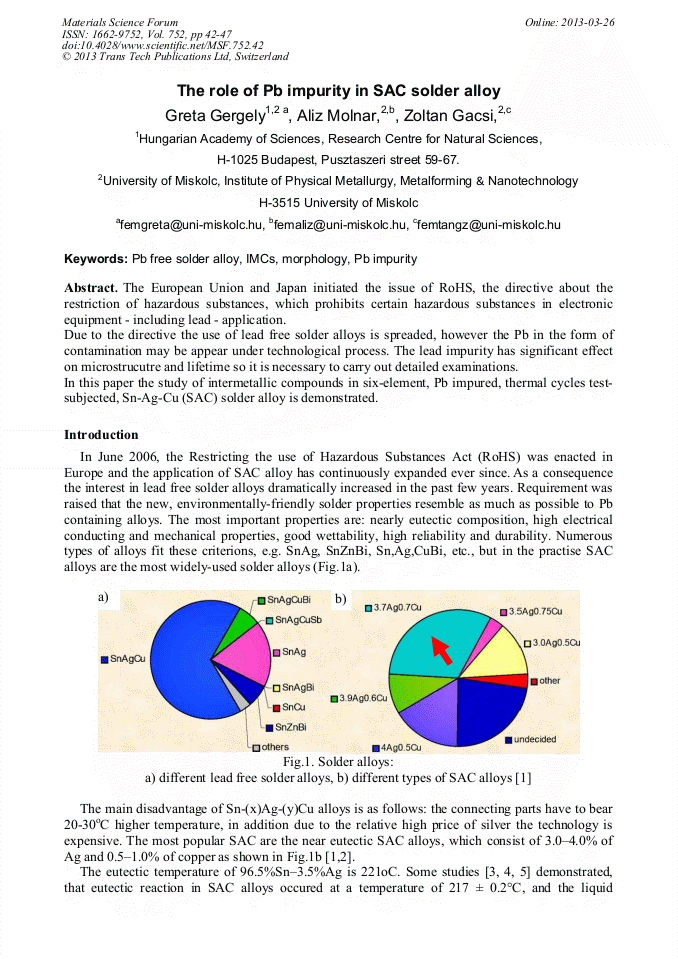

Article Preview

Abstract:

The European Union and Japan initiated the issue of RoHS, the directive about the restriction of hazardous substances, which prohibits certain hazardous substances in electronic equipment - including lead - application. Due to the directive the use of lead free solder alloys is spreaded, however the Pb in the form of contamination may be appear under technological process. The lead impurity has significant effect on microstrucutre and lifetime so it is necessary to carry out detailed examinations. In this paper the study of intermetallic compounds in six-element, Pb impured, thermal cycles test-subjected, Sn-Ag-Cu (SAC) solder alloy is demonstrated

You might also be interested in these eBooks

Materials Science at University of Miskolc

Info:

Periodical:

Materials Science Forum (Volume 752)

Pages:

42-47

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.752.42

Citation:

Cite this paper

Online since:

March 2013

Authors:

Gréta Gergely, Alíz Molnár, Zoltána Gácsi

Keywords:

IMCs, Morpholoy, Pb Free Solder Alloy, Pb Impurity
