Microstructure and Texture Evolution during Recrystallization of a Fe-Mn-C Alloy

Article Preview

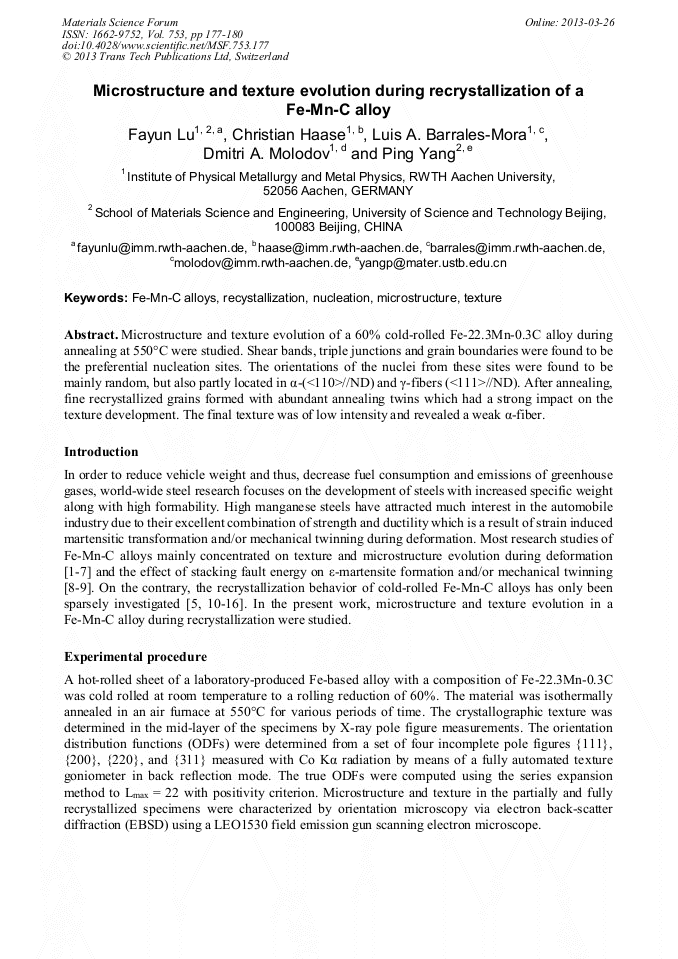

Abstract:

Microstructure and texture evolution of a 60% cold-rolled Fe-22.3Mn-0.3C alloy during annealing at 550°C were studied. Shear bands, triple junctions and grain boundaries were found to be the preferential nucleation sites. The orientations of the nuclei from these sites were found to be mainly random, but also partly located in α-(//ND) and γ-fibers (//ND). After annealing, fine recrystallized grains formed with abundant annealing twins which had a strong impact on the texture development. The final texture was of low intensity and revealed a weak α-fiber.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

177-180

Citation:

Online since:

March 2013

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2013 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C. Haase, S. G. Chowdhury, L. A. Barrales-Mora, D. A. Molodov and G. Gottstein: submitted to Metall. Mater. Trans. A (2012).

Google Scholar

[2] D. Barbier, N. Gey, S. Allain, N. Bozzolo and M. Humbert: Mater. Sci. Eng. A Vol. 500 (2009), p.19.

Google Scholar

[3] J. A. Jiménez and G. Frommeyer: Mater. Character. Vol. 61 (2010), p.221.

Google Scholar

[4] Y. Lü, B. Hutchinson, D. A. Molodov and G. Gottstein: Acta Mater. Vol. 58 (2010), p.3079.

Google Scholar

[5] L. Bracke, K.Verbeken, L. Kestens and J. Penning: Acta Mater. Vol. 57 (2009), p.1512.

Google Scholar

[6] Y. Lü, D. A. Molodov and G. Gottstein: ISIJ Int. Vol. 51 (2011), p.812.

Google Scholar

[7] S. Vercammen, B. Blanpain, B. C. De Cooman and P. Wollants: Acta Mater. Vol. 52 (2004), p.2005.

Google Scholar

[8] S. Allain, J.-P. Chateau, O. Bouaziz, S. Migot and N.Guelton: Mater. Sci. Eng. A Vol. 387-389 (2004), p.158.

Google Scholar

[9] A. Dumay, J.-P. Chateau, S. Allain, S. Migot and O. Bouaziz: Mater. Sci. Eng. A Vol. 483-484 (2008), p.184.

Google Scholar

[10] D. B. Santos, A. A. Saleh, A. A. Gazder, A. Carman, D. M. Duarte, É. A. S. Ribeiro, B. M. Gonzalez and E. V. Pereloma: Mater. Sci. Eng. A Vol. 528 (2011), p.3545.

Google Scholar

[11] Y. Lü, D. A. Molodov and G. Gottstein: Acta Mater. Vol. 59 (2011), p.3229.

Google Scholar

[12] A. A. Saleh, E. V. Pereloma and A. A. Gazder: Mate. Sci. Eng. A Vol. 528 (2011), p.4537.

Google Scholar

[13] Y. Lü, D. A. Molodov and G. Gottstein: Mater. Sci. Forum Vol. 715-716 (2012), p.568.

Google Scholar

[14] Y. Lü, D. A. Molodov and G. Gottstein: Mater. Sci. Forum Vol. 702-703 (2012), p.443.

Google Scholar

[15] L. A. Barrales-Mora, Y. Lü, D. A. Molodov and G. Gottstein: Mater. Sci. Forum Vol. 715-716 (2012), p.849.

DOI: 10.4028/www.scientific.net/msf.715-716.849

Google Scholar

[16] L. Bracke and N. Cabañas-Poy: Mater. Sci. Forum Vol. 715-716 (2012), p.649.

Google Scholar

[17] S. G. Chowdhury, S. Datta, B. Ravi Kumar, P. K. De and R. N. Ghosh: Mater. Sci. Eng. A Vol. 443 (2007), p.114.

Google Scholar

[18] L. A. Barrales-Mora, Y. Lü and D. A. Molodov: Steel Res. Int. Vol. 82 (2011), p.119.

Google Scholar

[19] A. A. Ridha and W. B. Hutchinson: Acta Metall. Vol. 30 (1982), p.1929.

Google Scholar
