Achieving High Tensile Properties in a C-Mn-Si Structural Steel by Simulating Hot Rolling and Heat Treatment Schedules

Balbir Singh; V. Kumar; S. Ghosal; B.K. Jha

doi:10.4028/www.scientific.net/MSF.762.89

Paper Titles

Novel Physical Simulation Technique Development for Multistage Metal Plastic Deformation Processing
p.62

Physical Simulation of Hot Rolling Steel Plate and Coil Production for Pipeline Applications
p.70

Physical Simulation of Thermomechanical Processing of Multiphase Mn-Al Steels with Retained Austenite
p.76

Designing a Novel DQ&P Process through Physical Simulation Studies
p.83

Achieving High Tensile Properties in a C-Mn-Si Structural Steel by Simulating Hot Rolling and Heat Treatment Schedules
p.89

The Development of Interphase Precipitated Nanometre-Sized Carbides in the Advanced Low-Alloy Steels
p.95

Effect of Heating Process on Retained Austenite of Mn-TRIP Steel
p.104

Crystallographic Features of Low-Carbon Bainite Formed under Non-Isothermal Conditions
p.110

Modeling of Microstructure and Mechanical Properties of Hot Rolled Steels
p.116

HomeMaterials Science ForumMaterials Science Forum Vol. 762Achieving High Tensile Properties in a C-Mn-Si...

Achieving High Tensile Properties in a C-Mn-Si Structural Steel by Simulating Hot Rolling and Heat Treatment Schedules

Abstract:

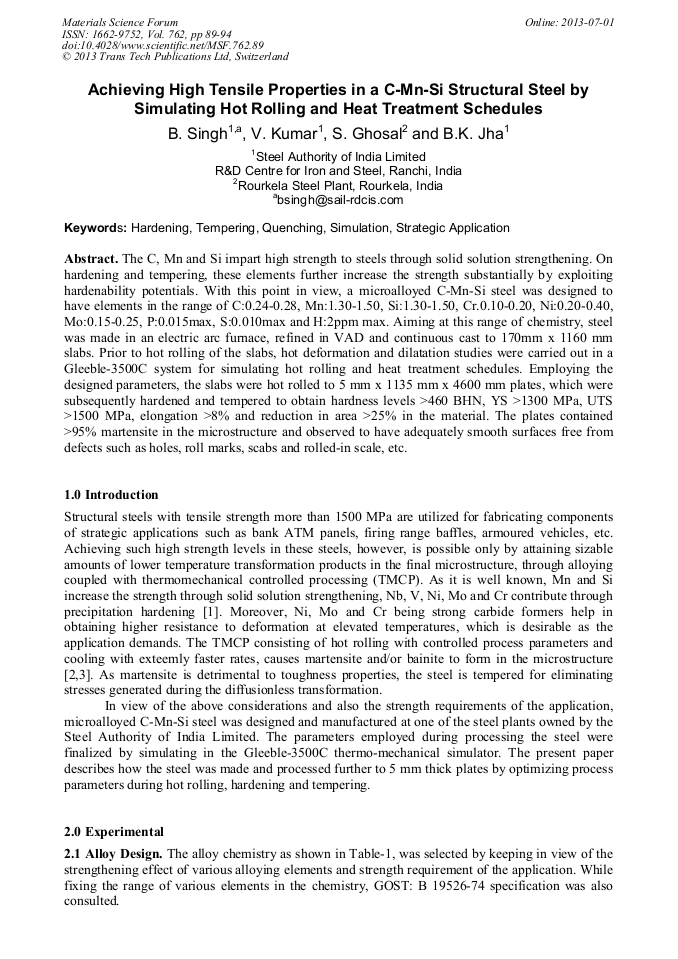

The C, Mn and Si impart high strength to steels through solid solution strengthening. On hardening and tempering, these elements further increase the strength substantially by exploiting hardenability potentials. With this point in view, a microalloyed C-Mn-Si steel was designed to have elements in the range of C:0.24-0.28, Mn:1.30-1.50, Si:1.30-1.50, Cr.0.10-0.20, Ni:0.20-0.40, Mo:0.15-0.25, P:0.015max, S:0.010max and H:2ppm max. Aiming at this range of chemistry, steel was made in an electric arc furnace, refined in VAD and continuous cast to 170mm x 1160 mm slabs. Prior to hot rolling of the slabs, hot deformation and dilatation studies were carried out in a Gleeble-3500C system for simulating hot rolling and heat treatment schedules. Employing the designed parameters, the slabs were hot rolled to 5 mm x 1135 mm x 4600 mm plates, which were subsequently hardened and tempered to obtain hardness levels >460 BHN, YS >1300 MPa, UTS >1500 MPa, elongation >8% and reduction in area >25% in the material. The plates contained >95% martensite in the microstructure and observed to have adequately smooth surfaces free from defects such as holes, roll marks, scabs and rolled-in scale, etc. Keywords: Hardening, Tempering, Quenching, Simulation, Strategic Application

You might also be interested in these eBooks

Physical and Numerical Simulation of Materials Processing VII

View Preview

Info:

Periodical:

Materials Science Forum (Volume 762)

Pages:

89-94

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.762.89

Citation:

Cite this paper

Online since:

July 2013

Authors:

Balbir Singh, V. Kumar, S. Ghosal, B.K. Jha

Keywords:

Hardening, Quenching, Simulation, Strategic Application, Tempering

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] R. Hohannes et al., Steel Res. Vol. 64 (1993), p.267.

Google Scholar

[2] K. Thelning, Steel and its Heat Treatment, Butterworths, London, 1975.

Google Scholar

[3] W.F. Smith, Structure and Properties of Engineering Alloys, McGraw-Hills, ed. (1981), p.122.

Google Scholar

[4] K.W. Andrews, JISI Vol. 203 (1965), p.721.

Google Scholar

[5] STEEL, A Handbook for Material Research and Engineering, Vol. 1: Fundamentals, Edited by Verein Deutscher Eisenhuttenleute, Springer-Verlag Publication, p.198.

Google Scholar

[6] Heat Treater's Guide – Practices and Procedures for Irons and Steels.

Google Scholar
