Influence of Microstructure on the Corrosion Resistance of AZ91D after EB Surface Alloying

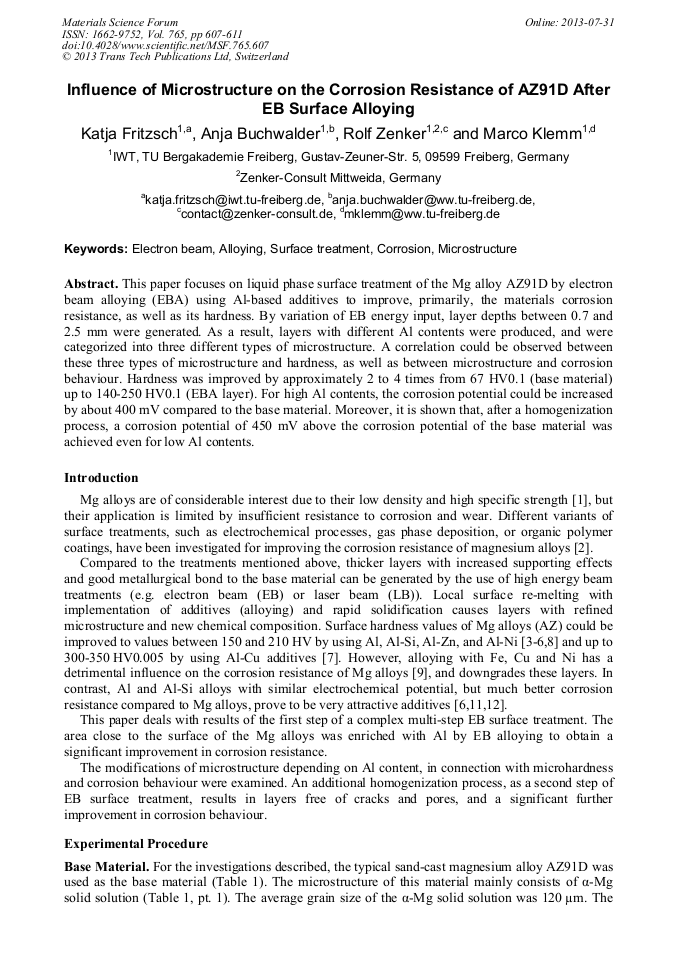

Abstract:

This paper focuses on liquid phase surface treatment of the Mg alloy AZ91D by electron beam alloying (EBA) using Al-based additives to improve, primarily, the materials corrosion resistance, as well as its hardness. By variation of EB energy input, layer depths between 0.7 and 2.5 mm were generated. As a result, layers with different Al contents were produced, and were categorized into three different types of microstructure. A correlation could be observed between these three types of microstructure and hardness, as well as between microstructure and corrosion behaviour. Hardness was improved by approximately 2 to 4 times from 67 HV0.1 (base material) up to 140-250 HV0.1 (EBA layer). For high Al contents, the corrosion potential could be increased by about 400 mV compared to the base material. Moreover, it is shown that, after a homogenization process, a corrosion potential of 450 mV above the corrosion potential of the base material was achieved even for low Al contents.

• Periodical: Materials Science Forum (Volume 765)
• Pages: 607-611
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.765.607
• Online since: July 2013
• Authors: Katja Fritzsch, Anja Buchwalder, Rolf Zenker, Marco Klemm
• Keywords: Alloying, Corrosion, Electron Beam, Microstructure, Surface Treatment

References

[1] Amtsblatt der Europäischen Union: Verordnung (EG) Nr. 443/2009 des Europäischen Parlaments und des Rates, 23.04.(2009)

DOI: 10.38072/978-3-910591-01-1/p21

[2] Singh, S.P. Harimkar, JOM 64 (2012).

[3] R. Galun et al., in: Proc. 5th European Conf. on Laser Treatment of Materials (ECLAT'94), DVS-Berichte 163 (1994), pp.421-426.

[4] Y. Yang, H. Wu, Mater. Letts. 63 (2009) 19-21.

[5] B. Carcel, J. Sampedro, A. Ruescas, X. Toneu, Phys. Procedia 12 (2011) 353-363.

DOI: 10.1016/j.phpro.2011.03.045

[6] H. Pokhmurska, et al., Surf. Coat. Technol. 202 (2008) 4515-4524.

[7] Y. Gao, C. Wang, H. Pang, H. Liu, M. Yao, Appl. Surf. Sci. 253 (2007) 4917-4922.

[8] M.R. Elahi, M.H. Sohi, A. Safaei, Appl. Surf. Sci. 258 (2012) 5876-5880.

[9] G. Song, A. Atrens, Adv. Eng. Mater. 5 (2003) 837-858.

[10] J. Dutta Majumdar, I. Manna, Scripta Mater. 62 (2010) 579-581.

[11] S.R. Paital et al., Surf. & Coat. Technol. 206 (2012) 2308-2315

[12] G. Rolink et al., in: Mg Alloys and their Applications: 9th Conf. on Mg Alloys and their Applications, Vancouver: 08.-12.07.2012, K.U. Kainer (Hrsg.), Weinheim: Wiley-VCH, 2012, pp.273-279.

[13] A.A. Nayeb-Hashemi, J.B. Clark: Phase Diagrams of Binary Magnesium Alloys. ASM International: Ohio.
