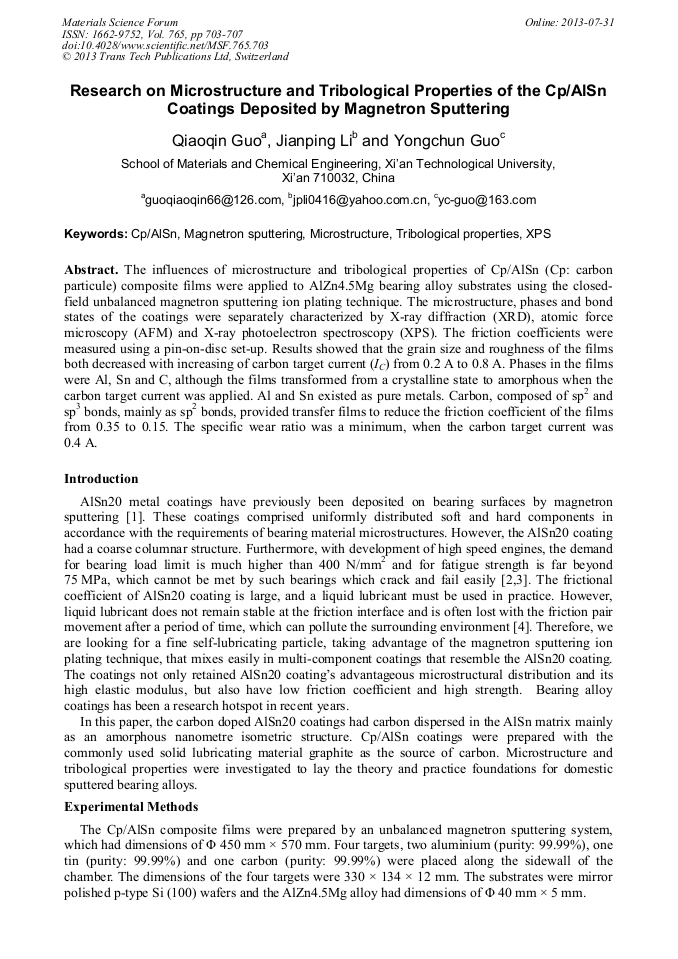

Research on Microstructure and Tribological Properties of the Cp/AlSn Coatings Deposited by Magnetron Sputtering

Abstract:

The influences of microstructure and tribological properties of Cp/AlSn (Cp: carbon particule) composite films were applied to AlZn4.5Mg bearing alloy substrates using the closed-field unbalanced magnetron sputtering ion plating technique. The microstructure, phases and bond states of the coatings were separately characterized by X-ray diffraction (XRD), atomic force microscopy (AFM) and X-ray photoelectron spectroscopy (XPS). The friction coefficients were measured using a pin-on-disc set-up. Results showed that the grain size and roughness of the films both decreased with increasing of carbon target current (I_C) from 0.2 A to 0.8 A. Phases in the films were Al, Sn and C, although the films transformed from a crystalline state to amorphous when the carbon target current was applied. Al and Sn existed as pure metals. Carbon, composed of sp² and sp³ bonds, mainly as sp² bonds, provided transfer films to reduce the friction coefficient of the films from 0.35 to 0.15. The specific wear ratio was a minimum, when the carbon target current was 0.4 A.

• Periodical: Materials Science Forum (Volume 765)
• Pages: 703-707
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.765.703
• Online since: July 2013
• Authors: Qiao Qin Guo, Jian Ping Li, Yong Chun Guo
• Keywords: Cp/AlSn, Magnetron Sputtering, Microstructure, Tribological Property, XPS

References

[1] G. Qiaoqin, J. Bailing, L. Jianping, Influence of target current on corrosion resistance of AlSn20/C coatings, Trans. Nonferr. Metal Soc. 22 (2012) 2289-2294.

[2] Y. Ogita, Liang Ju-ren, The new manufacturing methods to improve the aluminum lead bearing performance, Diesel Engine 15 (2010) 25-30.

[3] G. Qiaoqin, J. Bailing, L. Jianping, Study on the influence of substrate bias voltage on microstructure and properties of AlSn20, Special Casting & Nonferrous Alloys 31 (2011) 308-310.

[4] P.J. Kelly, R.D. Arnell, Magnetron sputtering: a review of recent developments and applications, Vacuum 56 (2011) 156-172.

DOI: 10.1016/s0042-207x(99)00189-x

[5] V. Jimenez, A. Fermandez, J.P. Espinqs, A.R. Gonzalez-Elipe, Interface effects for metal oxide thin films deposited on another metal oxide SnO deposited on SiO2, Surf. Sci. 350 (2011) 123.

DOI: 10.1016/0039-6028(95)01071-8

[6] D.G. Teer, New solid lubricant coatings, Wear 251 (2001) 1068-1074.

DOI: 10.1016/s0043-1648(01)00764-5

[7] A.J. Perry, J.N. Matossian, An overview of some advanced surface technology in Russion, Metall. Mater. Trans. 29 (1998) 593-609.

[8] S. Zhang, D. Sun, Y. Fu, H. Du, Recent advances of superhard nano composite coatings: a review, Surf. Coat. Tech. 167 (2003) 113-119.

[9] N.M. Renevier, J. Hamphire, et al., Advantages of using self-lubricating hard, wear-resistant MoS2-based coatings, Surf. Coat. Tech. 142-144 (2001) 67-77.

DOI: 10.1016/s0257-8972(01)01108-2

[10] K.E. Spear, J.P. Dismukes, Synthetic Diamond: Emerging CVD Science and Technology, John Wiley & Sons, New York, 1994, pp.450-462.

[11] X. Xiaohai, Foreign diesel engine crankshaft bearing shell material and manufacturing process, Journal of Foreign Locomotive Vehicle Technology (1999) l-5.

[12] K.E. Spear, J.P. Dismukes, Synthetic Diamond: Emerging CVD Science and Technology, John Wiley & Sons, New York, 1994, pp.450-462.

[13] Z. WenGen, Review of the development and level of locomotive diesel engine bearing both at home and abroad, Railway Locomotive Vehicle Workers (2006) l-7.

[14] H. Pengfei, J. Bailing, Study on tribological property of CrCN coating based on magnetron sputtering plating technique, Vacuum 85 (2001) 994-998.

DOI: 10.1016/j.vacuum.2011.02.007

[15] R.D. Arnella, P.J. Kelly, J.W. Bradley, Recent developments in pulsed magnetron sputtering, Surf. Coat. Tech. 188 (2004) 158-163.

[16] D. Lanfang, Z. Chunhua, Wear characteristics research on aluminum alloy bearing containing silicon, Mining and Metallurgy Engineering (2000) 67-69.
