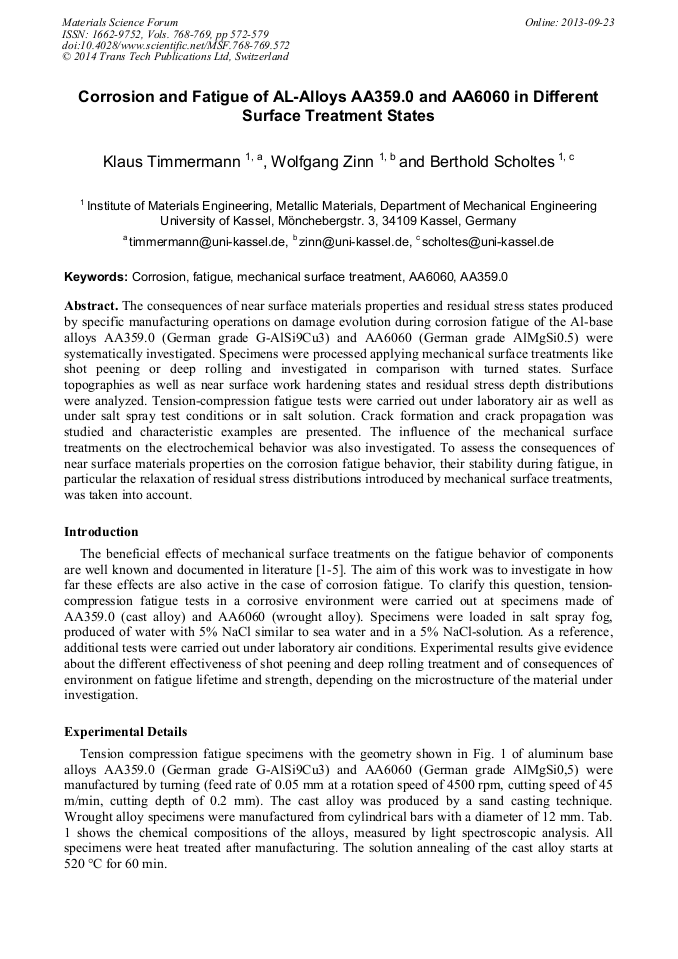

Corrosion and Fatigue of AL-Alloys AA359.0 and AA6060 in Different Surface Treatment States

Abstract:

The consequences of near surface materials properties and residual stress states produced by specific manufacturing operations on damage evolution during corrosion fatigue of the Al-base alloys AA359.0 (German grade G-AlSi9Cu3) and AA6060 (German grade AlMgSi0.5) were systematically investigated. Specimens were processed applying mechanical surface treatments like shot peening or deep rolling and investigated in comparison with turned states. Surface topographies as well as near surface work hardening states and residual stress depth distributions were analyzed. Tension-compression fatigue tests were carried out under laboratory air as well as under salt spray test conditions or in salt solution. Crack formation and crack propagation was studied and characteristic examples are presented. The influence of the mechanical surface treatments on the electrochemical behavior was also investigated. To assess the consequences of near surface materials properties on the corrosion fatigue behavior, their stability during fatigue, in particular the relaxation of residual stress distributions introduced by mechanical surface treatments, was taken into account.

• Periodical: Materials Science Forum (Volumes 768-769)
• Pages: 572-579
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.768-769.572
• Online since: September 2013
• Authors: Klaus Timmermann, Wolfgang Zinn, Berthold Scholtes
• Keywords: AA359.0, AA6060, Corrosion, Fatigue, Mechanical Surface Treatment

References

[1] B. Scholtes, Eigenspannungen in mechanisch randschichtverformten Werkstoffzuständen, DGM Informationsgesellschaft Verlag, Oberursel, (1991).

DOI: 10.1002/mawe.19910221203

[2] V. Schulze, Modern Mechanical Surface Treatment, WILEY-VCH Verlag, Weinheim, (2006).

[3] H. Wohlfahrt, P. Krull, Mechanische Oberflächenbehandlung, WILEY-VCH Verlag, Weinheim, (2000).

[4] C. Dindorf, Ermüdung und Korrosion nach mechanischer Oberflächenbehandlung von Leichtmetallen, Dr. -Ing. Thesis TU Darmstadt, (2006).

[5] R. Herzog; Auswirkungen bearbeitungsbedingter Randschichteigenschaften auf das Schwingungsrisskorrosionsverhalten von Ck45 und X35CrMo17; Dr. -Ing. - thesis, University of Braunschweig; Shaker Verlag; Aachen; (1998).

[6] K. Timmermann; Zur Schädigungsentwicklung bei der Korrosionsermüdung von Aluminium-basislegierungen mit definierten fertigungsbedingten Randschichtzuständen; Dr. -Ing. -thesis, University of Kassel; (2011).

[7] K. Timmermann, W. Zinn, B. Scholtes; Corrosion Fatigue of Al-alloy AA7020 in Different Surface Treatment States; Proceed. The Tenth International Conference on Shot Peening (ICSP-10); K. Tosha (Eds. ); p.363 – 368; Tokyo; (2008).

[8] K. Timmermann, W. Zinn, B. Scholtes; Effect of Shot Peening Treatments on Corrosion Fatigue of Cast or Wrought Al-base Alloys; Proceed. The Eleventh International Conference on Shot Peening (ICSPC-11); J. Champaigne (Eds. ); p.267 – 272; South Bend; (2011).

[9] Dieter Radaj, Michael Vormwald; Ermüdungsfestigkeit: Grundlagen für Ingenieure; Springer Verlag, Berlin; 3. Edition (2007).

[10] H. -J. Christ; Ermüdungsverhalten metallischer Werkstoffe; WILEY-VCH Verlag, Weinheim; 2. Edition (2009).

[11] H. Kaesche; Die Korrosion der Metalle; 3. Auflage, 1990; Springer-Verlag Berlin Heidelberg New York.

DOI: 10.1002/bbpc.19800840131

[12] D. Landolt; Corrosion and Surface Chemistry of Metals; 1. Edition, 2007; EPFL Press Ch-Lausanne.
