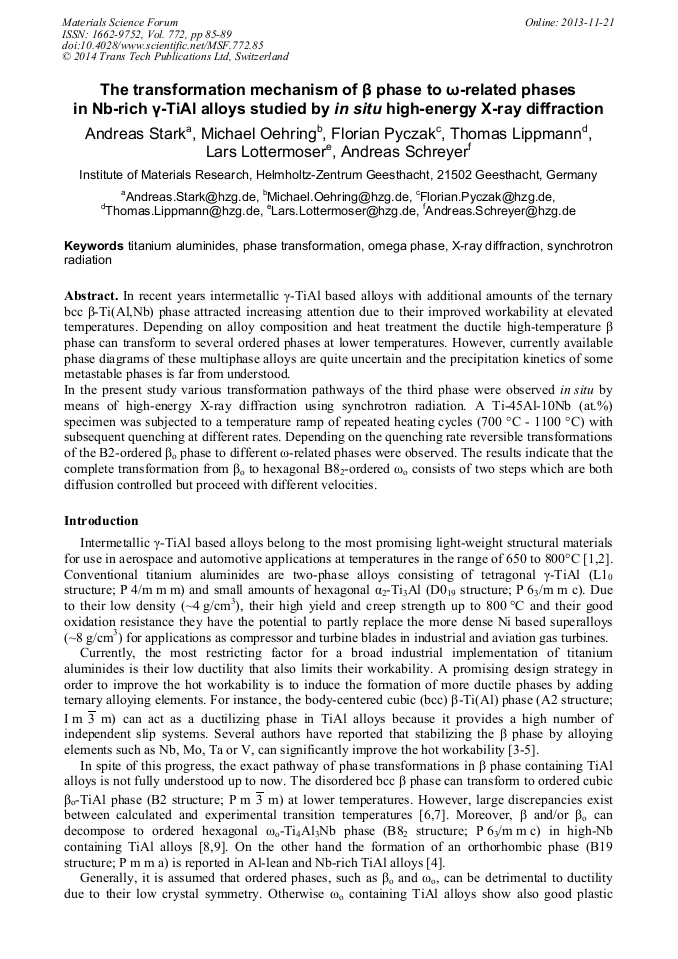

The Transformation Mechanism of β Phase to ω-Related Phases in Nb-Rich γ-TiAl Alloys Studied by In Situ High-Energy X-Ray Diffraction

Abstract:

In recent years intermetallic γ-TiAl based alloys with additional amounts of the ternary bcc β Ti(Al,Nb) phase attracted increasing attention due to their improved workability at elevated temperatures. Depending on alloy composition and heat treatment the ductile high-temperature β phase can transform to several ordered phases at lower temperatures. However, currently available phase diagrams of these multiphase alloys are quite uncertain and the precipitation kinetics of some metastable phases is far from understood. In the present study various transformation pathways of the third phase were observed in situ by means of high-energy X-ray diffraction using synchrotron radiation. A Ti-45Al-10Nb (at.%) specimen was subjected to a temperature ramp of repeated heating cycles (700 °C - 1100 °C) with subsequent quenching at different rates. Depending on the quenching rate reversible transformations of the B2-ordered β_o phase to different ω-related phases were observed. The results indicate that the complete transformation from β_o to hexagonal B8₂-ordered ω_o consists of two steps which are both diffusion controlled but proceed with different velocities.

• Periodical: Materials Science Forum (Volume 772)
• Pages: 85-89
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.772.85
• Online since: November 2013
• Authors: Andreas Stark, Michael Oehring, Florian Pyczak, Thomas Lippmann, Lars Lottermoser, Andreas Schreyer
• Keywords: Omega Phase, Phase Transformation, Synchrotron Radiation, Titanium Aluminide, X-Ray Diffraction (XRD)

References

[1] H. Kestler and H. Clemens, in: Titanium and Titanium Alloys, edited by C. Leyens and M. Peters, Wiley-VCH, Weinheim (2003) 351-392.

[2] Structural Aluminides for Elevated Temperature Applications, edited by Y. -W. Kim, D. Morris, R. Yang and C. Leyens, TMS, Warrendale, PA (2008).

[3] M. Takeyama and S. Kobayashi, Intermetallics 13 (2005) 993-999.

[4] F. Appel, M. Oehring and J. D. H. Paul, Adv. Eng. Mater. 8 (2006) 371-376.

[5] H. Clemens, W. Wallgram, S. Kremmer, V. Güther, A. Otto and A. Bartels, Adv. Eng. Mater. 10 (2008) 707-713.

DOI: 10.1002/adem.200800164

[6] V.T. Witusiewicz, A.A. Bondar, U. Hecht and T. Ya. Velikanova, J. Alloys Comp. 472 (2009) 133-161.

[7] T. Schmoelzer, K. -D. Liss, G. A. Zickler, I. J. Watson, L. M. Droessler, W. Wallgram, T. Buslaps, A. Studer and H. Clemens, Intermetallics 18 (2010) 1544-1552.

DOI: 10.1016/j.intermet.2010.04.008

[8] A. Stark, A. Bartels, H. Clemens and F. -P. Schimansky, Adv. Eng. Mater. 10 (2008) 929-934.

[9] S. Bystrzanowski, A. Bartels, A. Stark, R. Gerling, F. -P. Schimansky and H. Clemens, Intermetallics 18 (2010) 1046-1055.

DOI: 10.1016/j.intermet.2010.01.036

[10] F. Appel, J.D.H. Paul and M. Oehring, Mater. Sci. Eng.: A 510-511 (2009) 342-349.

[11] P. Staron, T. Fischer, T. Lippmann, A. Stark, S. Daneshpour, D. Schnubel, E. Uhlmann, R. Gerstenberger, B. Camin, W. Reimers, E. Eidenberger, H. Clemens, N. Huber and A. Schreyer, Adv. Eng. Mater. 13 (2011) 658-663.

DOI: 10.1002/adem.201000297

[12] R. Gerling, H. Clemens, and F. -P. Schimansky, Adv. Eng. Mater. 6 (2004) 23-38.

[13] A. Stark, Textur- und Gefügeentwicklung bei der thermomechanischen Umformung Nb-reicher Gamma-TiAl-Basislegierungen, Shaker Verlag, Aachen (2010).

[14] L. Bendersky, W. Boettinger, B. Burton, F. Biancaniello and C. Shoemaker, Acta Metall. Mater. 38 (1990) 931-943.

DOI: 10.1016/0956-7151(90)90165-d

[15] M. Sanati, D. West and R. C. Albers, J. Phys.: Condens. Matter. 20 (2008) 465206.

[16] A. Stark, M. Oehring, F. Pyczak and A. Schreyer, Adv. Eng. Mater. 13 (2011) 700-704.
