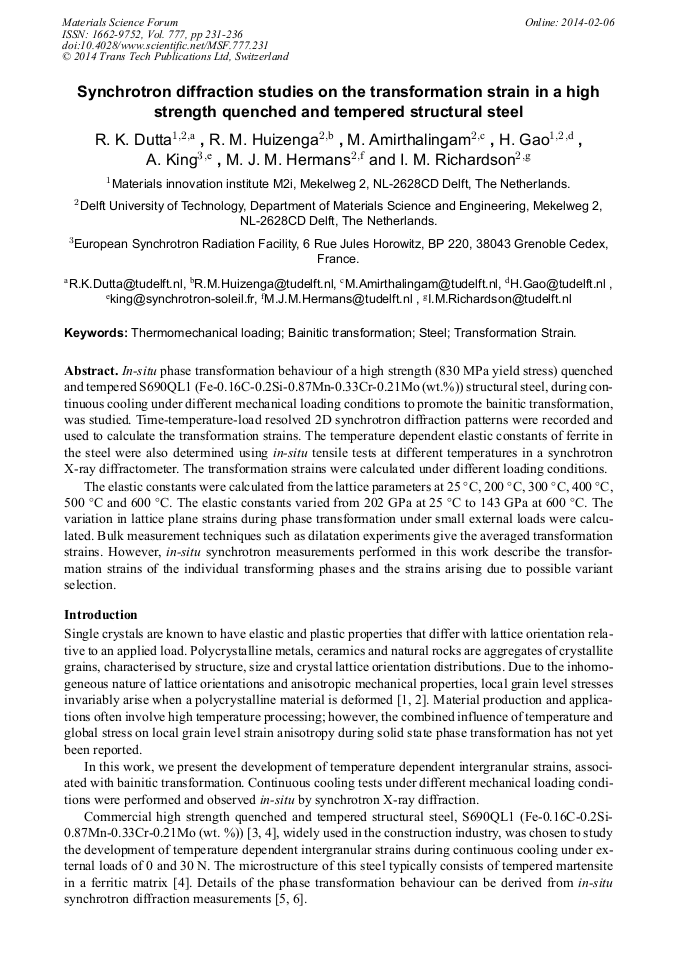

Synchrotron Diffraction Studies on the Transformation Strain in a High Strength Quenched and Tempered Structural Steel

Abstract:

In-situ phase transformation behaviour of a high strength (830 MPa yield stress) quenched and tempered S690QL1 (Fe-0.16C-0.2Si-0.87Mn-0.33Cr-0.21Mo (wt. %)) structural steel, during continuous cooling under different mechanical loading conditions to promote the bainitic transformation, was studied. Time-temperature-load resolved 2D synchrotron diffraction patterns were recorded and used to calculate the transformation strains. The temperature dependent elastic constants of ferrite in the steel were also determined using \textit{in-situ} tensile tests at different temperatures in a synchrotron X-ray diffractometer. The transformation strains were calculated under different loading conditions.The elastic constants were calculated from the lattice parameters at 25 °C, 200 °C, 300 °C, 400 °C, 500 °C and 600 °C. The elastic constants varied from 202 GPa at 25 °C to 143 GPa at 600 °C. The variation in lattice plane strains during phase transformation under small external loads were calculated. Bulk measurement techniques such as dilatation experiments give the averaged transformation strains. However, in-situ synchrotron measurements performed in this work describe the transformation strains of the individual transforming phases and the strains arising due to possible variant selection.

• Periodical: Materials Science Forum (Volume 777)
• Pages: 231-236
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.777.231
• Online since: February 2014
• Authors: R.K. Dutta*, R.M. Huizenga, M. Amirthalingam, H. Gao, A. King, M.J.M. Hermans, I.M. Richardson
• Keywords: Bainitic Transformation, Steel, Thermomechanical Loading, Transformation Strain

References

[1] L. Margulies, G. Winther and H. F. Poulsen: Science Vol. 291(5512) (2001), pp.2392-2394

[2] Z. Budrovic, H. van Swygenhoven P. M. Derlet, S. van Petegem and B. Schmitt: Science Vol. 304(5668) (2004), pp.273-276

DOI: 10.1126/science.1095071

[3] R.K. Dutta, R. M. Huizenga, M. Amirthalingam, A. King, H. Gao, M.J.M. Hermans and I.M. Richardson: Scripta Mater. Vol. 69(2) (2013), pp.187-190

[4] R.K. Dutta, M. Amirthalingam, M.J.M. Hermans and I.M. Richardson: Mater. Sci. Eng. A Vol. 559 (2013), pp.86-95

[5] H. Dai, J.A. Francis, H.J. Stone, H.K.D.H. Bhadeshia and P.J. Withers: Metall. Mater. Trans. A Vol. 39(13) (2008), pp.3070-3078

DOI: 10.1007/s11661-008-9616-0

[6] R.K. Dutta, R. M. Huizenga, M. Amirthalingam, A. King, M.J.M. Hermans and I.M. Richardson: Metall. Mater. Trans. A Vol. 44(9) (2013), pp.4011-4014

[7] ESRF: ETMT specifications, Internal report (2011)

[8] J.C. Labiche, O. Mathon, S. Pascarelli, M.A. Newton, G.G. Ferre, C. Curfs, G. Vaughan, A. Homs and D.F. Carreiras: Rev. Sci. Instrum. Vol. 78(9) (2007), p.119

[9] A.P Hammersley, S.O. Svensson, M. Hanfland, A.N. Fitch, D. Häusermann: High Press. Res. Vol. 14(4-5) (1996), pp.235-248

[10] N.H. van Dijk, A.M. Butt, L. Zhao, J. Sietsma, S.E. Offerman, J.P. Wright and S. van der Zwaag: Acta Mater. Vol. 53(20) (2005), pp.5439-5447

[11] H.K.D.H. Bhadeshia, S.A. David, J.M. Vitek and R.W. Reed: Materials Science and Technology Vol. 7(8) (1991), pp.686-698

[12] C.N. Hulme-Smith, I. Lonardelli, A.C. Dippel and H.K.D.H. Bhadeshia: Scripta Mater. Vol. 69(5) (2013), pp.409-412

DOI: 10.1016/j.scriptamat.2013.05.035
