Magnetic and Martensitic Transformations in Ni46Mn41.5-xFexSn12.5 Melt Spun Ribbons

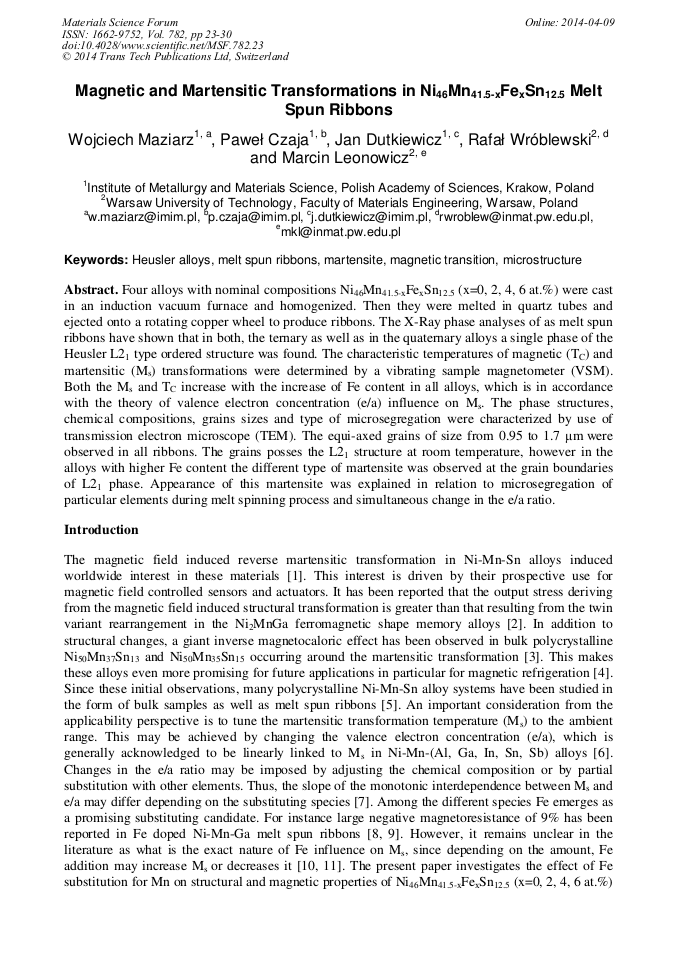

Article Preview

Abstract:

Four alloys with nominal compositions Ni46Mn41.5-xFexSn12.5 (x=0, 2, 4, 6 at.%) were cast in an induction vacuum furnace and homogenized. Then they were melted in quartz tubes and ejected onto a rotating copper wheel to produce ribbons. The X-Ray phase analyses of as melt spun ribbons have shown that in both, the ternary as well as in the quaternary alloys a single phase of the Heusler L21 type ordered structure was found. The characteristic temperatures of magnetic (TC) and martensitic (Ms) transformations were determined by a vibrating sample magnetometer (VSM). Both the Ms and TC increase with the increase of Fe content in all alloys, which is in accordance with the theory of valence electron concentration (e/a) influence on Ms. The phase structures, chemical compositions, grains sizes and type of microsegregation were characterized by transmission electron microscope (TEM). The equi-axed grains of size from 0.95 to 1.7 μm were observed in all ribbons. The grains posses the L21 structure at room temperature, however in the alloys with higher Fe content the different type of martensite was observed at the grain boundaries of L21 phase. Appearance of this martensite was explained in relation to microsegregation of particular elements during melt spinning process and simultaneous change in the e/a ratio.

You might also be interested in these eBooks
Metallography XV View Preview

Info:

Periodical:

Materials Science Forum (Volume 782)

Pages:

23-30

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.782.23

Citation:

Cite this paper

Online since:

April 2014

Authors:

Wojciech Maziarz*, Paweł Czaja, Jan Dutkiewicz, Rafał Wróblewski, Marcin Leonowicz

Keywords:

Heusler Alloys, Magnetic Transition, Martensite, Melt Spun Ribbons, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] J. Pons, E. Cesari, C. Segui, F. Masdeu, R. Santamarta, Ferromagnetic shape memory alloys: Alternatives to Ni–Mn–Ga, Mater. Sci. Eng. A 481-482 (2008) 57-65.

DOI: 10.1016/j.msea.2007.02.152

Google Scholar

[2] R. Kainuma, Y. Imano, W. Ito, Y. Sutou, H. Morito, S. Okamoto, O. Kitakami, K. Oikawa, A. Fujita, T. Kanomata, K. Ishida, Magnetic-field-induced shape recovery by reverse phase transformation, Nature (London) 439 (2006) 957-960.

DOI: 10.1038/nature04493

Google Scholar

[3] B. Hernando, J.L. Sanchez Llamazares, J.D. Santos, V.M. Prida, D. Baldomir, D. Serantes, R. Varga, J. Gonzalez, Magnetocaloric effect in melt spun Ni50. 3Mn35. 5Sn14. 4 ribbons, Appl. Phys. Lett. 92 (2008) 132507.

DOI: 10.1063/1.2904625

Google Scholar

[4] E. Bruck, O. Tegus, D.T.C. Thanh, K.H. J. Buschow, Magnetocaloric refrigeration near room temperature (invited), J. Magn. Magn. Mater. 310 (2007) 2793-2799.

DOI: 10.1016/j.jmmm.2006.10.1146

Google Scholar

[5] J.D. Santos, T. Sanchez, P. Alvarez, M.L. Sanchez, J.L. Sanches Llamazares, B. Hernando, Ll. Escoda, J.J. Sunol, R. Varga, Microstructure and magnetic properties of Ni50Mn37Sn13 Heusler alloy ribbons, J. Appl. Phys. 103 (2008) 07B326.

DOI: 10.1063/1.2832330

Google Scholar

[6] R.L. Wang, J.B. Yan, H.B. Xiao, L.S. Xu, V.V. Marchenkov, L.F. Xu, C.P. Yang, Effect of electron density on the martensitic transition in Ni–Mn–Sn alloys, J. Alloys. Compd. 509 (2011) 6834-6837.

DOI: 10.1016/j.jallcom.2011.03.128

Google Scholar

[7] I. Dincer, E. Yuzuak, Y. Elerman, J. Alloys. Compd. The effect of the substitution of Cu for Ni on magnetoresistance and magnetocaloric properties of Ni50Mn34In16, 509 (2011) 794-799.

DOI: 10.1016/j.jallcom.2010.09.092

Google Scholar

[8] Z.H. Liu, Z.Y. Zhu, S.Y. Yu, H.Z. Luo, J.L. Chen, G.H. Wu, Anisotropy of the magnetoresistance in ferromagnetic shape memory alloy Ni52Mn16. 4Fe8Ga23. 6 single crystal, J. Magn. Magn. Mater. 319 (2007) 69-72.

DOI: 10.1016/j.jmmm.2007.04.039

Google Scholar

[9] R. Santamarta, E. Cesari, J. Font, J. Muntasell, J. Pons, J. Dutkiewicz, Effect of atomic order on the martensitic transformation of Ni–Fe–Ga alloys, Scripta Mater. 54 (2006) 1985-(1989).

DOI: 10.1016/j.scriptamat.2006.03.018

Google Scholar

[10] J.L. Yan, Z.Z. Li, X. Chen, K.W. Zhou, S.X. Shen, H.B. Zhou, Martensitic transition and magnetocaloric properties in Ni45Mn44-xFexSn11 alloys, J. Alloys. Compd. 506 (2010) 516-519.

DOI: 10.1016/j.jallcom.2010.07.076

Google Scholar

[11] E.C. Passamani, F. Xavier, E. Favre-Nicolin, C. Larica, A.Y. Takeuchi, I.L. Castro, J.R. Proveti, Magnetic properties of NiMn-based Heusler alloys influenced by Fe atoms replacing Mn, J. Appl. Phys. 105 (2009) 033919.

DOI: 10.1063/1.3075835

Google Scholar

[12] B. Hernando, J.L. Sánchez Llamazares, J.D. Santos, M.L. Sánchez, Ll. Escoda, J.J. Suñol, R. Varga, C. García, J. González, Grain oriented NiMnSn and NiMnIn Heusler alloys ribbons produced by melt spinning: Martensitic transformation and magnetic properties, J. Magn. Magn. Mater, 321 (2009).

DOI: 10.1016/j.jmmm.2008.11.105

Google Scholar

[13] W. Maziarz, SEM and TEM studies of magnetic shape memory NiCoMnIn melt spun ribbons, Solid Sate Phenomena, 186 (2012) 251-254.

DOI: 10.4028/www.scientific.net/ssp.186.251

Google Scholar

[14] T. Krenke, M. Acet, E.F. Wassermann, X. Moya, L. Manosa, A. Planes, Martensitic transitions and the nature of ferromagnetism in the austenitic and martensitic states of Ni -Mn -Sn alloys, Phys. Rev. B 72 (2005) 014412.

DOI: 10.1103/physrevb.72.014412

Google Scholar

[15] H.S. Liu, C.L. Zhang, Z.D. Han, H.C. Xuan, D.H. Wang, Y.W. Du, The effect of Co doping on the magnetic entropy changes in Ni44-xCoxMn45Sn11 alloys, J. Alloys Compd. 467 (2009) 27-30.

DOI: 10.1016/j.jallcom.2007.11.137

Google Scholar

[16] D.H. Wang, C.L. Zhang, H.C. Xuan, Z.D. Han, J.R. Zhang, S.L. Tang, B.X. Gu, Y.W. Du, J. The study of low-field positive and negative magnetic entropy changes in Ni43Mn46−xCuxSn11 alloys, J. Appl. Phys. 102 (2007) 013909-013912.

DOI: 10.1063/1.2752140

Google Scholar

[17] C.L. Zhang, W.Q. Zou, H.C. Xuan, Z.D. Han, D.H. Wang, B.X. Gu, Y.W. Du, Giant low-field magnetic entropy changes in Ni45Mn44−xCrxSn11 ferromagnetic shape memory alloys, J. Phys. D: Appl. Phys. 40 (2007) 7287-7290.

DOI: 10.1088/0022-3727/40/23/005

Google Scholar

[18] J. Pons, V.A. Chernenko, R. Santamarta, E. Cesari, Crystal structure of martensitic phases in Ni–Mn–Ga shape memory alloys, Acta mater. 48 (2000) 3027-3038.

DOI: 10.1016/s1359-6454(00)00130-0

Google Scholar

[19] J. Liu, T.G. Woodcock, N. Scheerbaum, O. Gutfleisch, Influence of annealing on magnetic field-induced structural transformation and magnetocaloric effect in Ni–Mn–In–Co ribbons, Acta mater. 57 (2009) 4911-4920.

DOI: 10.1016/j.actamat.2009.06.054

Google Scholar
