Microstructure of CB2 Steel before and after Long-Term Creep Tests

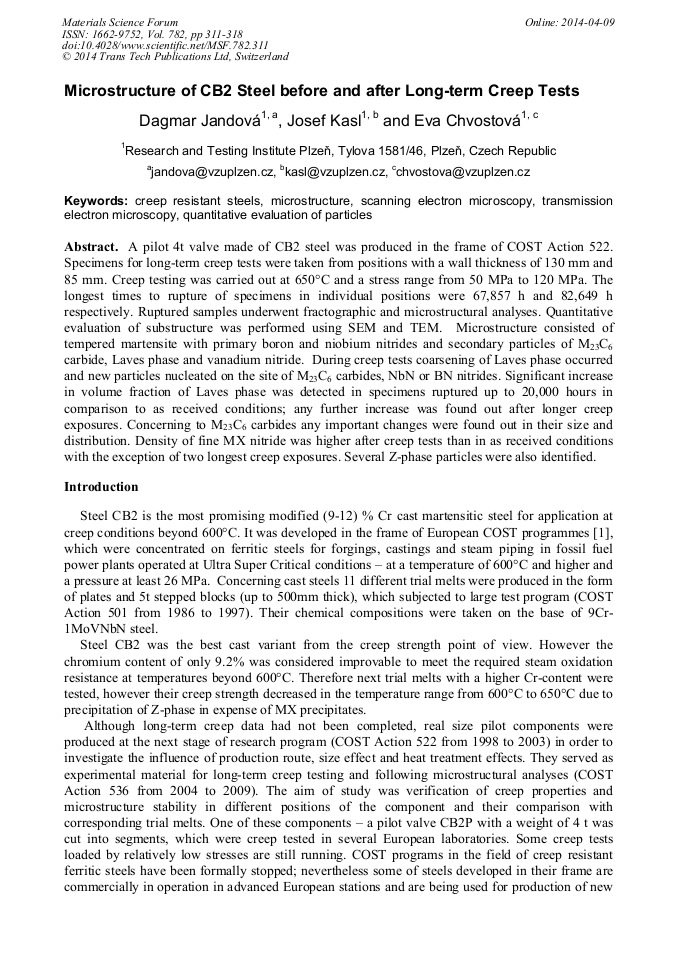

Abstract:

A pilot 4t valve made of CB2 steel was produced in the frame of COST Action 522. Specimens for long-term creep tests were taken from positions with a wall thickness of 130 mm and 85 mm. Creep testing was carried out at 650°C and a stress range from 50 MPa to 120 MPa. The longest times to rupture of specimens in individual positions were 67,857 h and 82,649 h respectively. Ruptured samples underwent fractographic and microstructural analyses. Quantitative evaluation of substructure was performed using SEM and TEM. Microstructure consisted of tempered martensite with primary boron and niobium nitrides and secondary particles of M₂₃C₆ carbide, Laves phase and vanadium nitride. During creep tests coarsening of Laves phase occurred and new particles nucleated on the site of M₂₃C₆ carbides, NbN or BN nitrides. Significant increase in volume fraction of Laves phase was detected in specimens ruptured up to 20,000 hours in comparison to as received conditions; any further increase was found out after longer creep exposures. Concerning to M₂₃C₆ carbides any important changes were found out in their size and distribution. Density of fine MX nitride was higher after creep tests than in as received conditions with the exception of two longest creep exposures. Several Z-phase particles were also identified after these two exposures.

• Periodical: Materials Science Forum (Volume 782)
• Pages: 311-318
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.782.311
• Online since: April 2014
• Authors: Dagmar Jandová*, Josef Kasl, Eva Chvostová
• Keywords: Creep Resistant Steels, Microstructure, Quantitative Evaluation of Particles, Scanning Electron Microscope (SEM), Transmission Electron Microscopy (TEM)

References

[1] M. Staubli, R. Hanus, T. Weber, K-H. Mayer, T-U. Kern, Tre European Efforts in Development of new High Temperature Casing Materials – COST 536, in.: J. Lecomte-Becker, M. Carton, F. Schubert and P. J. Ennis (Eds. ), Proceedings 8th Liége Conf. Materials for Advanced Power Engineering, Forschungszentrum Jülich GmbH, Jülich 2006, p.855.

[2] P. Mayr, I. Holzer, F. mendez-Martin, M. Albu, S. Mitche, V. Gonzales, A. Agüero, Improvemed Creep AND Oxidation Behavior of a martensitic 9Cr Steel by the Controlled Addition of Boron and Nitrogen, in.: J. Lecomte-Becker, Q. Contrepois, T. Beck, B. Kuhn (Eds. ), Proceedings 9th Liége Conf. Materials for Advanced Power Engineering, Forschungszentrum Jülich GmbH, Jülich 2010, p.348.

[3] L. Korcakova, J. Hald, M.A.J. Somers, Quantification of Laves Phase Particle size in 9CrW Steel, materials Characterization 47 (2001), pp.11-117.

DOI: 10.1016/s1044-5803(01)00159-0

[4] M.F. Ashby, R. Ebeling, On the Determination of the Number, Size, Spacing, and Volume Fraction of Spherical Second-Phase Particles from Extraction Replicas, Transactions of metallurgical Society of Aime, Vol. 236, October 1966, pp.1396-1404.
