Microstructural Stability of P23/P91 Dissimilar Welds during Creep at 500°C

Lucie Střílková; Jan Holešinský; Anastasia Maslova; Zdeněk Kuboň; Vlastimil Vodárek

doi:10.4028/www.scientific.net/MSF.782.319

Paper Titles

Influence of Charge Composition on the Structure and Fatigue Properties of Nodular Cast Irons
p.295

Influence of Microstructure and Defect Population on the Fatigue Performance of Cast A356-T6 Automotive Components
p.301

Laser Hardening Parameters Influencing Component Lifetime and Residual Stresses
p.306

Microstructure of CB2 Steel before and after Long-Term Creep Tests
p.311

Microstructural Stability of P23/P91 Dissimilar Welds during Creep at 500°C
p.319

Evaluation of Materials Degradation Extent after their Long Term Exposition in Power Plants Equipments
p.325

Creep of Cast Steel P91 with Weld Joint
p.331

Study of Microstructure and Phase Composition of Creep Resistant Cast Steel
p.335

Microstructural Phenomenon Occurring in Elektron 21 Magnesium Alloy During Creep
p.339

HomeMaterials Science ForumMaterials Science Forum Vol. 782Microstructural Stability of P23/P91 Dissimilar...

Microstructural Stability of P23/P91 Dissimilar Welds during Creep at 500°C

Abstract:

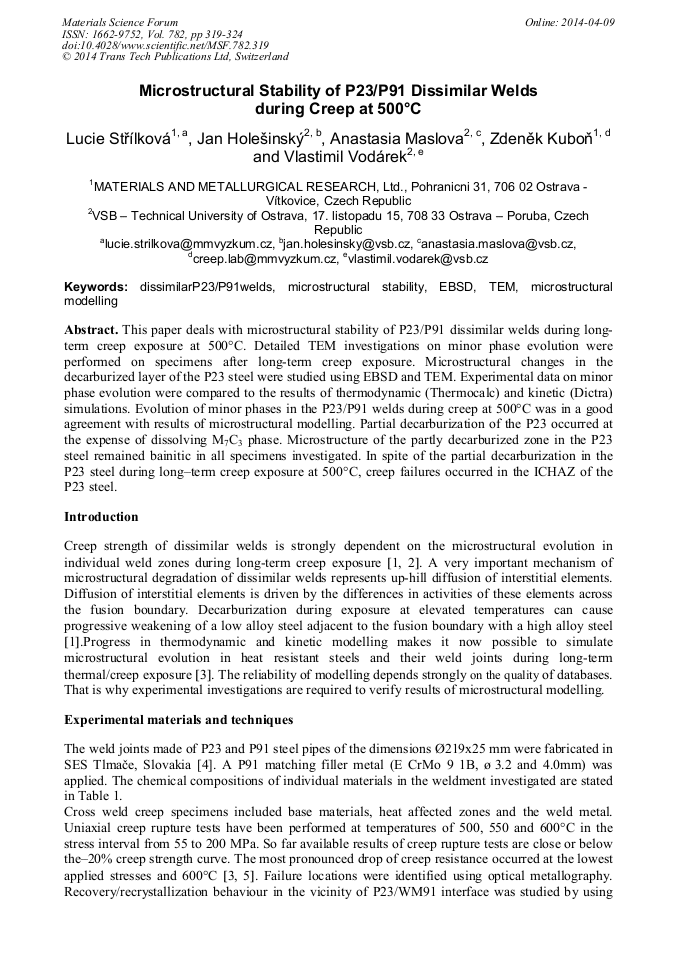

This paper deals with microstructural stability of P23/P91 dissimilar welds during long-term creep exposure at 500°C. Detailed TEM investigations on minor phase evolution were performed on specimens after long-term creep exposure. Microstructural changes in the decarburized layer of the P23 steel were studied using EBSD and TEM. Experimental data on minor phase evolution were compared to the results of thermodynamic (Thermocalc) and kinetic (Dictra) simulations. Evolution of minor phases in the P23/P91 welds during creep at 500°C was in a good agreement with results of microstructural modelling. Partial decarburization of the P23 occurred at the expense of dissolving M₇C₃ phase. Microstructure of the partly decarburized zone in the P23 steel remained bainitic in all specimens investigated. In spite of the partial decarburization in the P23 steel during longterm creep exposure at 500°C, creep failures occurred in the ICHAZ of the P23 steel.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 782)

Pages:

319-324

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.782.319

Citation:

Cite this paper

Online since:

April 2014

Authors:

Lucie Střílková, Jan Holešinský, Anastasia Maslova, Zdeněk Kuboň, Vlastimil Vodárek

Keywords:

Dissimilar P23/P91 Welds, EBSD, Microstructural Modelling, Microstructural Stability, TEM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] I. Hagen, W. Bendick, Creep resistant ferritic steels for power plants, http: /www. cbmm. com. br/portug/sources/techlib/science_techno/table_content/sub_4/images/pdfs/040. pdf, [10. 8. 2010].

Google Scholar

[2] D.J. Allen, Creep Performance of Dissimilar P91 to Low Alloy Steel Weldments, in: Parsons2003, IOM, London, 2003, pp.281-294.

Google Scholar

[3] V. Vodárek, Z. Kuboň, R. Foret, Creep Properties and Microstructure of P23/P91 Heterogeneous Welds, in: Proc. of Creep and Fracture in High Temperature Components, DesTech Publications, Inc., Lancaster, 2009, pp.1308-1311.

DOI: 10.4028/www.scientific.net/msf.782.319

Google Scholar

[4] J. Pecha, J. Bošanský, Welding of Similar and Dissimilar Steels, COST 522 Progress Report, SES Tlmače-WRI, Bratislava, 2002, p.28.

Google Scholar

[5] V. Vodárek, Z. Kuboň, L. Střílková, S. V. Hainsworth, Creep Behaviour and Microstructural Evolution in P23/P91 Dissimilar Welds, in: Proc. 9th Liege Conf. on Materials for Advanced Power Engineering, ForschungszentrumJülich, 2010, pp.1126-1135.

DOI: 10.4028/www.scientific.net/msf.782.319

Google Scholar
