Homogenization of AlSi7MgCu0.5 Alloy as-Cast Structure by ECAP Processing

Miloš Matvija; Martin Fujda; Marek Vojtko; Robert Kočiško

doi:10.4028/www.scientific.net/MSF.782.390

Paper Titles

Unconventional Metallographic Methods for the Structural Characterization of Laser Hardened Al-Zn-Si Cast Alloy
p.369

Cockcroft-Latham Ductile Fracture Criteria for Non Ferrous Materials
p.373

The Influence of Thermo-Plastic Processes on Materials Recovery
p.379

Microstructure and Mechanical Properties of Ultrafine-Grained Magnesium AZ91 Alloy
p.384

Homogenization of AlSi7MgCu0.5 Alloy as-Cast Structure by ECAP Processing
p.390

Effect of Technologies Processing on Material Properties of Selected Aluminium Alloys
p.394

Non-Metallic Inclusions in Mg-RE-Zr Casting Alloys
p.398

Metallographic Analysis of ECAP Processed Selected Magnesium Alloys
p.404

Structural Stability of Welded Joints of Magnesium Alloy EZ33A-T5
p.408

HomeMaterials Science ForumMaterials Science Forum Vol. 782Homogenization of AlSi7MgCu0.5 Alloy as-Cast...

Homogenization of AlSi7MgCu0.5 Alloy as-Cast Structure by ECAP Processing

Abstract:

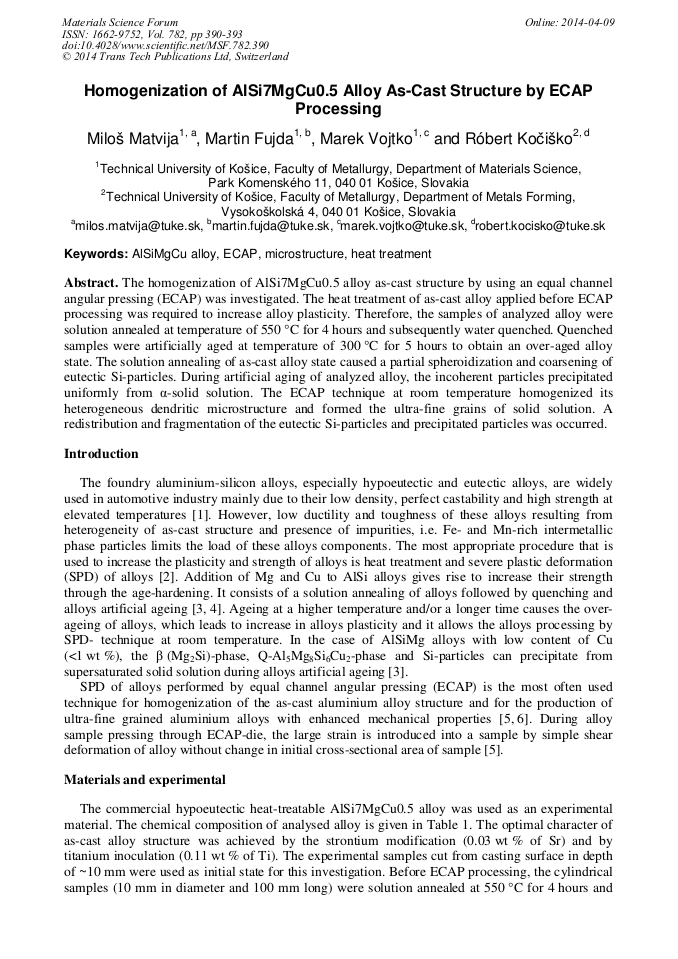

The homogenization of AlSi7MgCu0.5 alloy as-cast structure by using an equal channel angular pressing (ECAP) was investigated. The heat treatment of as-cast alloy applied before ECAP processing was required to increase alloy plasticity. Therefore, the samples of analyzed alloy were solution annealed at temperature of 550 °C for 4 hours and subsequently water quenched. Quenched samples were artificially aged at temperature of 300 °C for 5 hours to obtain an over-aged alloy state. The solution annealing of as-cast alloy state caused a partial spheroidization and coarsening of eutectic Si-particles. During artificial aging of analyzed alloy, the incoherent particles precipitated uniformly from α-solid solution. The ECAP technique at room temperature homogenized its heterogeneous dendritic microstructure and formed the ultra-fine grains of solid solution. A redistribution and fragmentation of the eutectic Si-particles and precipitated particles was occurred.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 782)

Pages:

390-393

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.782.390

Citation:

Cite this paper

Online since:

April 2014

Authors:

Miloš Matvija*, Martin Fujda, Marek Vojtko, Robert Kočiško

Keywords:

AlSiMgCu Alloy, ECAP, Heat Treatment, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] G. Wang, Q. Sun, L. Feng, L. Hui, C. Jing, Mater. Design. 28 (2007) 1001-1005.

Google Scholar

[2] M. Matvija, M. Fujda, O. Milkovič, T. Kvačkaj, M. Vojtko, P. Zubko, R. Kočiško, Acta Metall. Slovaca. 18 (2012) 4-12.

DOI: 10.12776/amsc.v3i0.109

Google Scholar

[3] E. Sjölander, S. Seifeddine, J. Mater. Process. Technol. 210 (2010) 1249-1259.

Google Scholar

[4] R. Colás, E. Velasco, S. Valtierra, Castings, in: G. E. Totten, D. C. MacKenzie (Eds), Handbook of Aluminum, Physical Metallurgy and Processes, Boca Raton, 2003, pp.591-641.

Google Scholar

[5] R. Z. Valiev, T. G. Langdon, Prog. Mater. Sci. 51 (2006) 881-981.

Google Scholar

[6] J. M. Garcia-Infanta, S. Swaminathan, A. P. Zhilyaev, F. Carreno, O. A. Ruano, T. R. McNelley, Mater. Sci. Eng. A. 485 (2008) 160-175.

Google Scholar

[7] G. Unterreiter, A. Ludwig, M. Wu, China Foundry. 8 (2011) 331-336.

Google Scholar

[8] A. R. Farkoosh, M. Javidani, M. Hoseini, D. Larouche, M. Pekguleryuz, J. Alloys Compd. 551 (2013) 596-606.

DOI: 10.1016/j.jallcom.2012.10.182

Google Scholar
