X-Ray Diffraction Studies on Ti-Pd Shape Memory Alloys

Raju Arockiakumar; Madoka Takahashi; Satoshi Takahashi; Yoko Yamabe-Mitarai

doi:10.4028/www.scientific.net/MSF.783-786.2517

Paper Titles

Development of Nickel Based Superalloys for Advanced Turbine Engines
p.2491

Effect of Zr Addition on Magnetostriction of Tb-Dy-Fe Alloys Prepared by Micro-Pulling-Down Method
p.2497

Amorphousization and Superconducting Property for Zr-Nb Based Alloy
p.2503

Polymer Matrix Composites with Shape Memory Properties
p.2509

X-Ray Diffraction Studies on Ti-Pd Shape Memory Alloys
p.2517

Recent Developments in the Field of Shape Memory Epoxy Foams
p.2523

Development of a Combined Method between MPS and FEM for Simulating Friction Stir Welding
p.2531

Electrochemical Evaluation for Rust Preventive Properties of Rust Preventive Oils Coated on Fe-Cu-C Sintered Steel
p.2537

High-Temperature Shape Memory Alloys Based on Ti-Platinum Group Metals Compounds
p.2541

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786X-Ray Diffraction Studies on Ti-Pd Shape Memory...

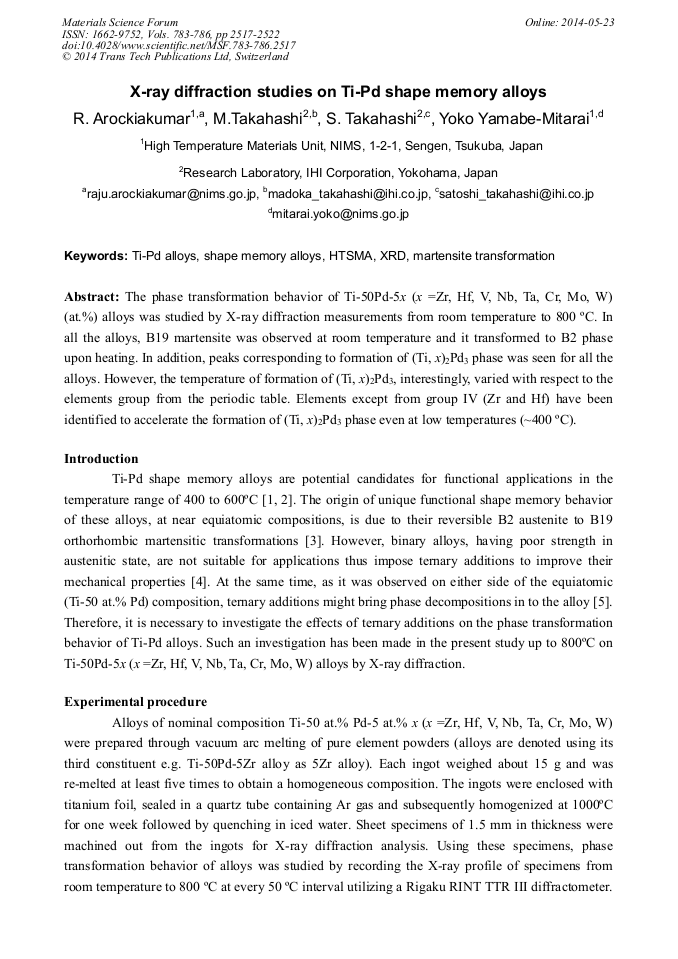

X-Ray Diffraction Studies on Ti-Pd Shape Memory Alloys

Abstract:

The phase transformation behavior of Ti-50Pd-5x (x =Zr, Hf, V, Nb, Ta, Cr, Mo, W) (at.%) alloys was studied by X-ray diffraction measurements from room temperature to 800 oC. In all the alloys, B19 martensite was observed at room temperature and it transformed to B2 phase upon heating. In addition, peaks corresponding to formation of (Ti, x)₂Pd₃ phase was seen for all the alloys. However, the temperature of formation of (Ti, x)₂Pd₃, interestingly, varied with respect to the elements group from the periodic table. Elements except from group IV (Zr and Hf) have been identified to accelerate the formation of (Ti, x)₂Pd₃ phase even at low temperatures (~400 oC).
