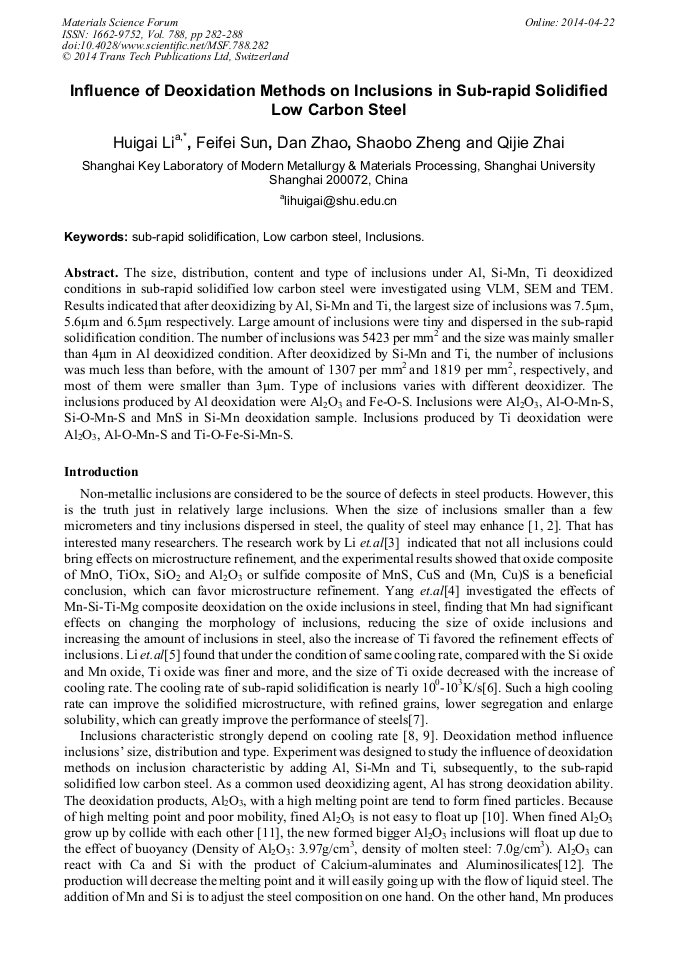

Influence of Deoxidation Methods on Inclusions in Sub-Rapid Solidified Low Carbon Steel

Abstract:

The size, distribution, content and type of inclusions under Al, Si-Mn, Ti deoxidized conditions in sub-rapid solidified low carbon steel were investigated using VLM, SEM and TEM. Results indicated that after deoxidizing by Al, Si-Mn and Ti, the largest size of inclusions was 7.5μm, 5.6μm and 6.5μm respectively. Large amount of inclusions were tiny and dispersed in the sub-rapid solidification condition. The number of inclusions was 5423 per mm² and the size was mainly smaller than 4μm in Al deoxidized condition. After deoxidized by Si-Mn and Ti, the number of inclusions was much less than before, with the amount of 1307 per mm² and 1819 per mm², respectively, and most of them were smaller than 3μm. Type of inclusions varies with different deoxidizer. The inclusions produced by Al deoxidation were Al₂O₃ and Fe-O-S. Inclusions were Al₂O₃, Al-O-Mn-S, Si-O-Mn-S and MnS in Si-Mn deoxidation sample. Inclusions produced by Ti deoxidation were Al₂O₃, Al-O-Mn-S and Ti-O-Fe-Si-Mn-S.

• Periodical: Materials Science Forum (Volume 788)
• Pages: 282-288
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.788.282
• Online since: April 2014
• Authors: Hui Gai Li*, Fei Fei Sun, Dan Zhao, Shao Bo Zheng, Qi Jie Zhai
• Keywords: Inclusion, Low Carbon Steel, Sub-Rapid Solidification

References

[1] Y. Song, G. P. Wu and T. L. Wu: China Metallurgy, vol. 22 (6) (2012), pp.1-6.

[2] J. H. Lee and Y. T. Pan: ISIJ International, vol. 35 (8) (1995), pp.1027-1033.

[3] Z. J. Li et al.: Transactions of the China Welding Institution, vol. 28 (6) (2007), pp.57-60.

[4] F. Yang, G. Q. Li and Y. Song: Iron Steel Vanadium Titanium, vol. 32 (1) (2011), pp.71-77.

[5] H. G. Li et al.: Journal of Materials and Metallurgy, vol. 6 (2) (2007), pp.105-108.

[6] H. S. Liu et al.: Materials for Mechanical Engineering, vol. 36 (4) (2012), pp.1-4.

[7] G. Chen and H. Z. Fu, in: Non-equilibrium solidification of new metallic materials, Science Press, Beijing (2004).

[8] W. T. Guo et al.: Materials for Mechanical Engineering, vol. 36 (10) (2012), pp.19-22.

[9] X. N. Wang, H. S. Di and L. X. Du.: Acta Metallurgica Sinica, vol. 48 (5) (2012), pp.621-628.

[10] X. Wang et al.: Journal of Materials Science Network, vol. 5 (3) (2010), pp.10-12.

[11] L. F. Guo et al.: Iron and Steel, vol. 47 (4) (2012), pp.23-27.

[12] J. H. Jia and Y. J. Tian: Hebei Metallurgy, vol. 148 (4) (2005), pp.8-13.

[13] Y. Hu, L. Rao and G. X. Chen: Ordnance Material Science and Engineering, vol. 35 (4) (2012), pp.5-7.

[14] C. W. Yang et al.: Journal of University of Science and Technology Beijing, vol. 31 (11) (2009), pp.1390-1393.

[15] P. G. Xu, F. Yin and G. K. Na: Materials Science and Engineering A, vol. 441 (2006), pp.157-166.

[16] G. C. Wang and L. F. Zhang: Iron and Steel, vol. 47 (6) (2012), pp.22-26.

[17] Z. Y. Hu et al.: Acta Metallurgica Science, vol. 47 (2011), pp.971-977.
