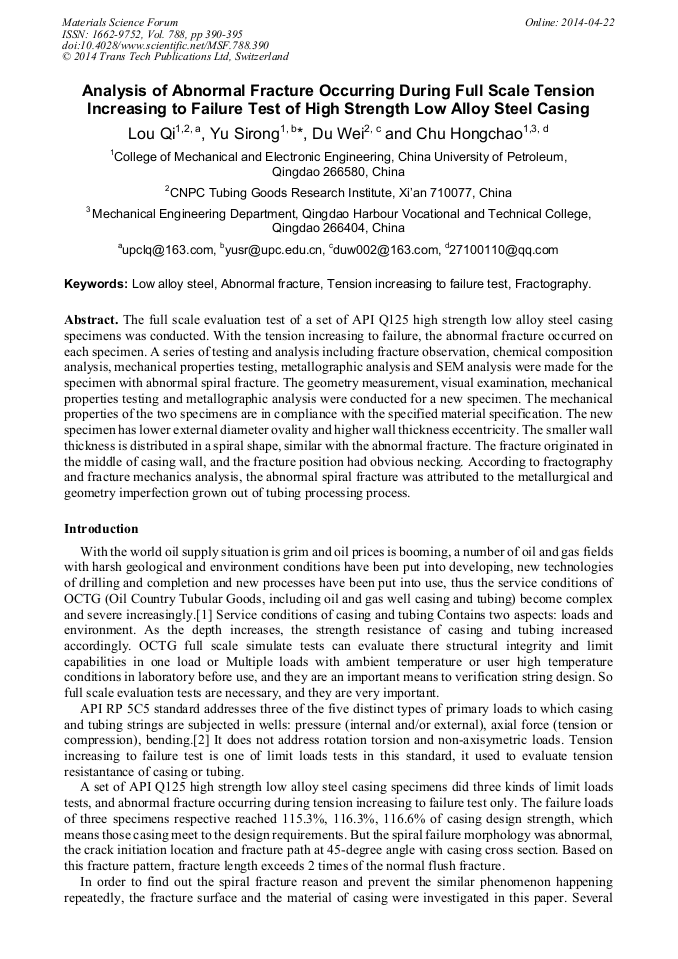

Analysis of Abnormal Fracture Occurring during Full Scale Tension Increasing to Failure Test of High Strength Low Alloy Steel Casing

Abstract:

The full scale evaluation test of a set of API Q125 high strength low alloy steel casing specimens was conducted. With the tension increasing to failure, the abnormal fracture occurred on each specimen. A series of testing and analysis including fracture observation, chemical composition analysis, mechanical properties testing, metallographic analysis and SEM analysis were made for the specimen with abnormal spiral fracture. The geometry measurement, visual examination, mechanical properties testing and metallographic analysis were conducted for a new specimen. The mechanical properties of the two specimens are in compliance with the specified material specification. The new specimen has lower external diameter ovality and higher wall thickness eccentricity. The smaller wall thickness is distributed in a spiral shape, similar with the abnormal fracture. The fracture originated in the middle of casing wall, and the fracture position had obvious necking. According to fractography and fracture mechanics analysis, the abnormal spiral fracture was attributed to the metallurgical and geometry imperfection grown out of tubing processing process.

• Periodical: Materials Science Forum (Volume 788)
• Pages: 390-395
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.788.390
• Online since: April 2014
• Authors: Qi Lou, Si Rong Yu*, Wei Du, Hong Chao Chu
• Keywords: Abnormal Fracture, Fractography, Low Alloy Steel, Tension Increasing to Failure Test

References

[1] Li Helin, Han Lihong, Zhang Wenli. Demand for and Development of Hi-performance OCTG: Steel Pipe. Vol. 38-1 (2009), p.1

[2] API: API RP 5C5 Recommended Practice on Procedures for Testing Casing and Tubing Connections. 3th ed. Washington D C: American Petroleum Institute (2003)

[3] API: API TR 5C3 Technical Report on Equations and Calculations for Casing, Tubing, and Line Pipe Used as Casing or Tubing; and Performance Properties Tables for Casing and Tubing. 1st ed. Washington D C: American Petroleum Institute (2007)

DOI: 10.3403/30175233u

[4] Lou Qi, Zhang Guanglu, Zhang Dan et al. Experimental Study on Influence Factors of Casing Collapse Resistance Strength: Oil field Equipment. Vol. 41-6 (2012), p.38

[5] API: API Spec 5CT Specification for Casing and Tubing. 9th ed. Washington D C: American Petroleum Institute (2011)

[6] Zhong Qunpeng, Zhao Zihua. Fractography, chapter, 6, China High Education Press, Beijing (2006)
